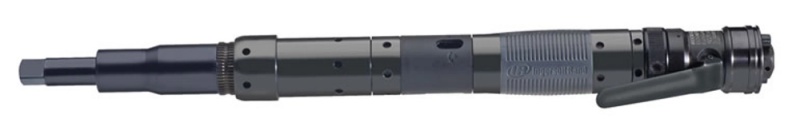

QA4 Series Handheld Inline Adjustable Shut-Off Air Nutrunner

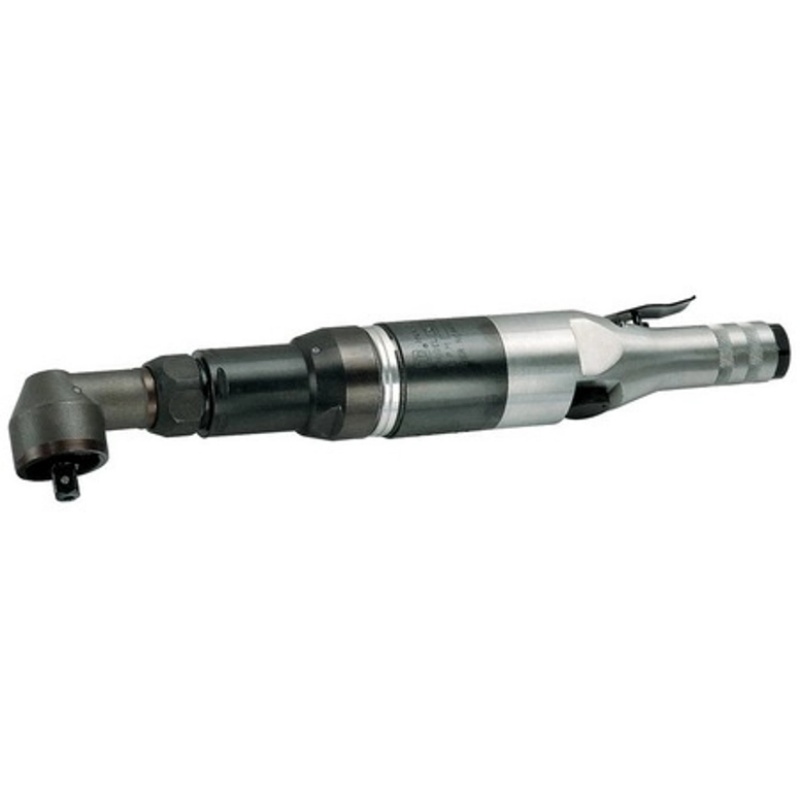

9 Series Handheld Angle Stall Air Nutrunner

QA4 Series Handheld Inline Adjustable Shut-Off Air Nutrunner 19mm of float to accommodate faster rundown

Ingersoll Rand’s broad product line of nutrunners, designed for operator comfort, offer coverage from 3 ft-lb to 200 ft-lb with automatic shut-off clutch, cushion clutch and stall tools that provide the accuracy, speed, reliability and simplicity of operation.

Item No :

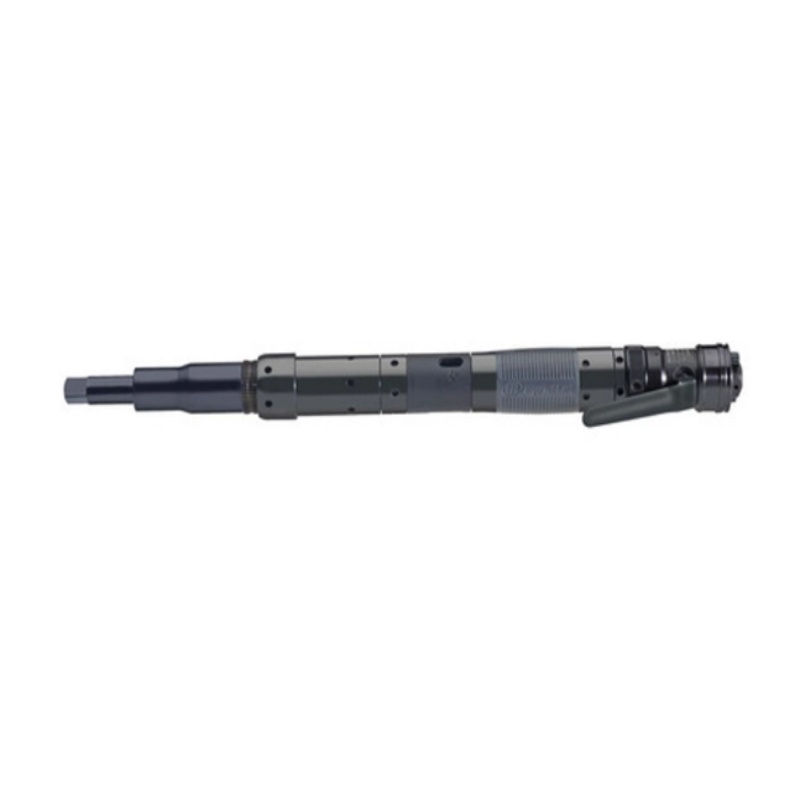

QA4 Series Handheld Inline Adjustable Shut-Off Air Nutrunner
Order(MOQ) :
1 PC
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15 days
Weight :
0.17kg

Inquiry now

Product Details
Model Specifications

This handheld inline nutrunner is designed for comfort and strength. The standard 4” inline spindle provides 19mm of float to accommodate faster rundown, while the adjust shut-off reduces air consumption and limits torque reaction. Multiple mounting flange options make this tool suitable for many applications.

Accurate

Adjustable External clutch for Delivering Consistent Torque Results

Durability

Spend your time working, not waiting for repair. QA series has been tested for 1 Million cycles without failure

Easy to Maintain

The lube-free motor makes it easy to manage the upkeep nutrunner with just a spanner wrench.

Model	Actuation	Torque Range (Nm)	Torque Range (ft-lb)	Torque Range (in-lb)	Free Speed (rpm)	Weight (kg)	Weight (lb)	Length (mm)	Length (in)	Head Side to Center (mm)	Head Side to Center (in)	Air Inlet	cfm	Spindle Type	Common Fastener Size
QA4ASLS012BP41S04	Lever Start	6 - 12	4.4 - 8.8	1050	1.3-1.5	3.22	464	18.3	21	0.81	1/4 in. BSP	29	1/4 in. Square	M4 - M5	79.3
QA4ASLS015BP41S04	Lever Start	7 - 15	5.2 - 11.1	850	1.3-1.5	3.22	464	18.3	21	0.81	1/4 in. BSP	29	1/4 in. Square	M5 - M6	79.3
QA4ASLS020BP41S06	Lever Start	10 - 20	7.4 - 14.8	600	1.3-1.5	3.22	464	18.3	21	0.81	1/4 in. BSP	29	3/8 in. Square	M6 - M8	79.3
QA4ASLS027BP41S06	Lever Start	14 - 27	10.3 - 19.9	450	1.3-1.5	3.22	464	18.3	21	0.81	1/4 in. BSP	29	3/8 in. Square	M8	79.3
QA4ASLS046BP41S06	Lever Start	20 - 46	14.8 - 33.9	250	1.3-1.5	3.73	478	18.8	23	0.91	1/4 in. BSP	29	3/8 in. Square	M8	79.3
