W7172 IQV20™ 3/4" High Torque Cordless Impact Wrench Weighs only 7.8 lbs (with BL2022 battery)

Built off the success of the 1/2" W7152, the all-new IQV®20 Series W7172 3/420V High Torque Impact Wrench delivers 1500 ft-lb of nut busting torque and utilizes the IQV® Power Control System, going from MAX torque to hand tightin no time with the best in class length from tip to tail.

  • Item No :

    W7172 IQV20™ 3/4" High Torque Cordless Impact Wrench
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    0.37

Built off the success of the 1/2" W7152, the all-new IQV®20 Series W7172 3/4” 20V High Torque Impact Wrench delivers 1500 ft-lb of nut busting torque and utilizes the IQV® Power Control System, going from MAX torque to hand tight” in no time with the best in class length from tip to tail.

Features

Power

Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio.

Control

Includes the IQV® Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints theres no need to switch tools.

Durable

Impact-and-chemical resistant housing protects the W7172 from every day abuse. The IQV®  brushless motor delivers more power and efficiency than a brushed motor, providing longer tool life. IPX6 rated patented steel-reinforced nylon casing to withstand jets of water and prevent against chemical exposure.

Access

8.5short tip-to-tail design and 360shadowless task light provides increased visibility and access.

Other Features

Tuned impact mechanism with 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque

Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency

Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safetyrelease trigger, drive stops spinning

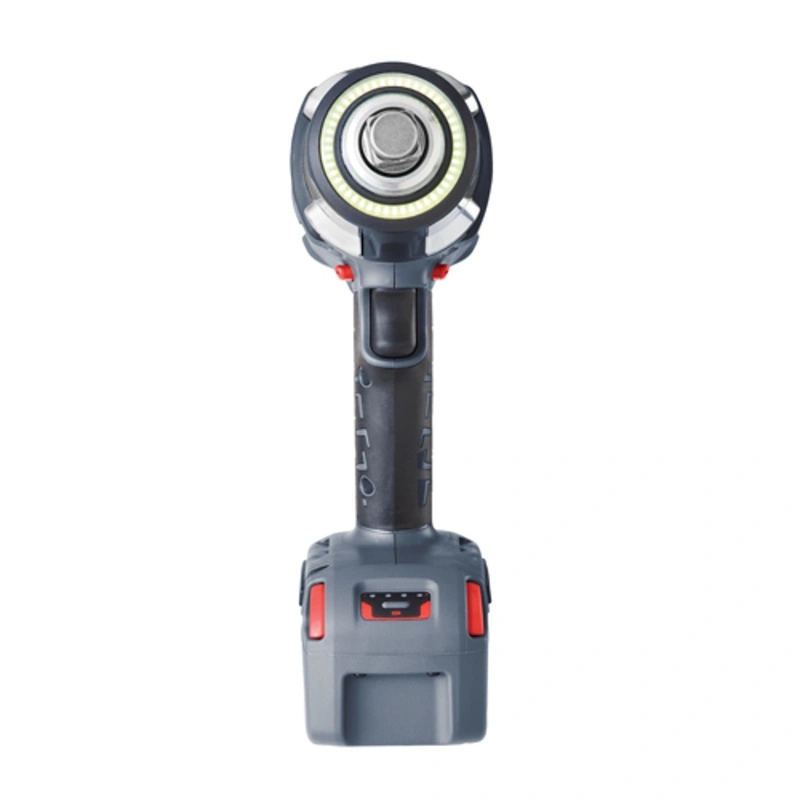

4 dimmable settings on the shadowless 360º LED light ring

Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops

Ideally used for removing or fastening cradle bolts tire changing, fleet truck maintenance and in industrial and MRO settings

Weighs only 7.8 lbs (with BL2022 battery)

3-year warranty



Model Voltage DC Battery model Configuration Drive Size Drive Type Nut-Busting Torque (ft-lb) Nut-Busting Torque (Nm) Hand Tight Forward Torque (ft-lb) Hand Tight Forward Torque (Nm) Wrench Tight Forward Torque (ft-lb) Wrench Tight Forward Torque (Nm) Half Power Forward Torque (ft-lb) Half Power Forward Torque (Nm) Max Reverse Torque (ft-lb) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Weight w/out Battery (lbs) Weight w/out Battery (kg) Weight w/ Battery (lbs) Weight w/ Battery (kg) LxWxH in. LxWxH mm.
W7172 20

BL2012, BL2022

Pistol 3/4 in. Square, Socket Retainer Ring and Thru-Hole 1500 2033 4-10 5-14 35-110 47-149 530 720 1000 1360 2450 0-1900 6.2 2.8 7.8 3.5 8.5 215
