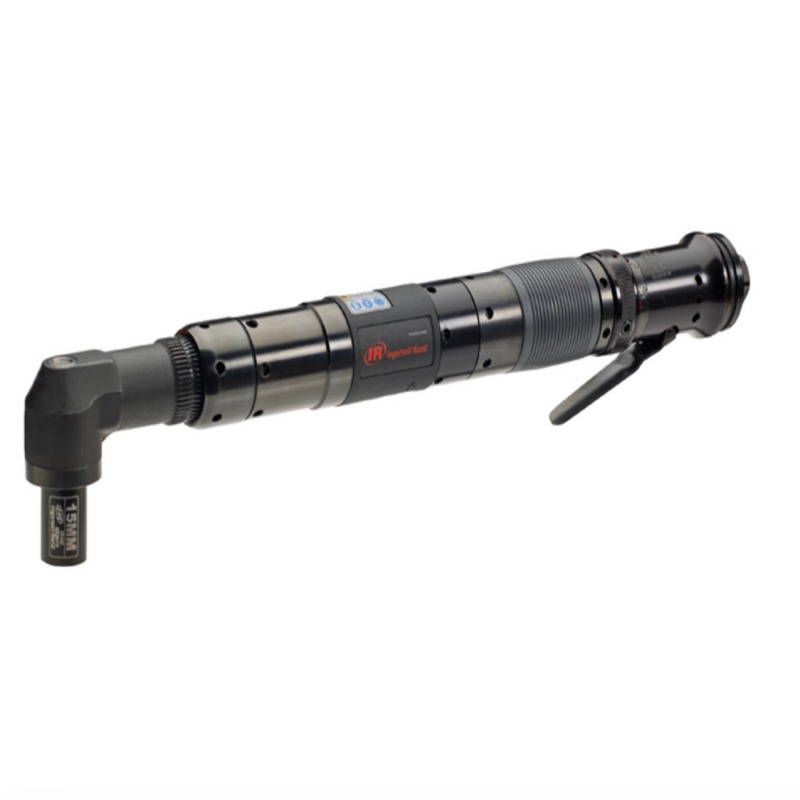

QA6 Series Handheld Angle Stall Air Nutrunner

QA6 Series Handheld Angle Stall Air Nutrunner

Designed for soft pull applications in wood and other materials, QA6 Series Angle Stall nutrunners are easy to maneuver, and applied torque is controlled by the operator. You are in complete control with this tool.

  • Item No :

    QA6 Series Handheld Angle Stall Air Nutrunner
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    2.11kg

Designed for soft pull applications in wood and other materials, QA6 Series Angle Stall nutrunners are easy to maneuver, and applied torque is controlled by the operator. You are in complete control with this tool.

Features

Durable:



With the precision shutoff clutch tested to 1 million cycles without failure, you can be sure this tool will function the way you want it to.

Easy to Maintain:



With easy maintenance, this tool will work as well as you do.

User Experience:



The 360-degree indexing of angle head provides maximum flexibility, while the position of the reverse ring is ideally located for operator comfort.



Model

Actuation

Torque Range (Nm)

Torque Range (ft-lb)

Free Speed (rpm)

Weight (kg)

Weight (lb)

Length (mm)

Length (in)

Angle Head Side to Center (mm)

Angle Head Side to Center (in)

Angle Head Height (mm)

Angle Head Height (in)

Air Inlet

cfm

Spindle Type

Common Fastener Size

Sound (dBA)

QA6AALD030NP35S06

Lever Start

27 - 30

20 - 22

580

2.11

4.65

429

16.9

18

0.69

44

1.71

3/8 in. NPT

36

3/8 in. Square

M8

82.5

QA6AALD040NP35S06

Lever Start

35 - 40

26 - 30

430

2.11

4.65

429

16.9

18

0.69

44

1.71

3/8 in. NPT

36

3/8 in. Square

M8

82.5

QA6AALD040NP35S08

Lever Start

35 - 40

26 - 30

430

2.12

4.67

429

16.9

18

0.69

44

1.71

3/8 in. NPT

36

1/2 in. Square

M8

82.5

QA6AALD055NP35S08

Lever Start

49 - 55

36 - 41

320

2.12

4.67

429

16.9

18

0.69

44

1.71

3/8 in. NPT

36

1/2 in. Square

M10

82.5

QA6AALD070NP43S08

Lever Start

62 - 70

46 - 52

225

2.12

4.67

422

16.6

22

0.85

45

1.76

3/8 in. NPT

36

1/2 in. Square

M10

82.5

QA6AALD090NP43S08

Lever Start

80 - 90

59 - 66

185

2.12

4.67

422

16.6

22

0.85

45

1.76

3/8 in. NPT

36

1/2 in. Square

M10 - M12

82.5
