Ingersoll Rand

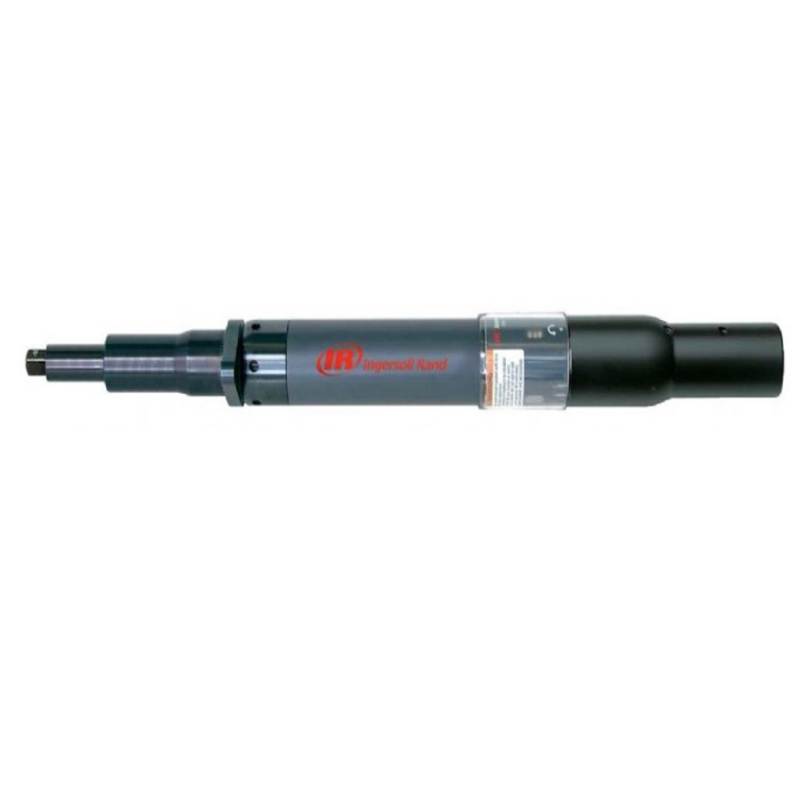

QE Fixtured Inline Series

Compact, lightweight and high-speed, the QE Fixtured Angle wrenches provide superior accuracy and durability to meet your fastening requirements. They are easily mountable to a fixture or reaction arm, and have a torque range from 0.3 Nm to 400 Nm.

Item No :
QE Fixtured Inline Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Features

Accuracy:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE2SC002F32S06	0.3 - 1.5	2.7 - 13.3	0.2-1.1	1.5	Controller Remote Start	Inline	3000	47	19	342	13.46456692913386	0.91	2.01	3/8 in. square
QE2SC003F32S06	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Controller Remote Start	Inline	2450	47	19	342	13.46456692913386	0.91	2.01	3/8 in. square
QE2SC005F32S06	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Controller Remote Start	Inline	1700	47	19	342	13.46456692913386	0.91	2.01	3/8 in. square
QE2SC007F32S06	1.3 - 6.5	11.5 - 57.5	1.0-4.8	6.5	Controller Remote Start	Inline	1250	47	19	342	13.46456692913386	0.91	2.01	3/8 in. square
QE2SC010F32S06	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Controller Remote Start	Inline	850	47	19	342	13.46456692913386	0.91	2.01	3/8 in. square
QE4SC010B41S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Controller Remote Start	Inline	1820	111	23	437	17.20472440944882	1.2	2.65	3/8 in. square
QE4SC015B41S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Controller Remote Start	Inline	1220	111	23	437	17.20472440944882	1.2	2.65	3/8 in. square
QE4SC020B41S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Controller Remote Start	Inline	900	111	23	437	17.20472440944882	1.2	2.65	3/8 in. square
QE4SC025B41S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Controller Remote Start	Inline	710	111	23	437	17.20472440944882	1.2	2.65	3/8 in. square
QE6SC020F61S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Controller Remote Start	Inline	1840	154	39.5	544.2	21.425196850393704	2.1	4.63	3/8 in. square
QE6SC028F61S06	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Controller Remote Start	Inline	1360	154	39.5	544.2	21.425196850393704	2.1	4.63	3/8 in. square
QE6SC033F61S06	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Controller Remote Start	Inline	1130	154	39.5	544.2	21.425196850393704	2.1	4.63	3/8 in. square
QE6SC050F61S08	10.0 - 40.0	88.5 - 354.0	7.4 - 29.5	50	Controller Remote Start	Inline	760	153	39.5	544.2	21.425196850393704	2.1	4.63	1/2 in. Square
QE8SC055F61S08	11.0 - 44.0	97.4 - 389.4	8.1 - 32.5	55	Controller Remote Start	Inline	1470	153	39	608.3	23.948818897637796	3	6.61	1/2 in. Square
QE8SC070F61S08	14.0 - 56.0	123.9 - 495.6	10.3 - 41.3	70	Controller Remote Start	Inline	1160	153	39.5	608.3	23.948818897637796	3	6.61	1/2 in. Square
QE8SC090F61S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Controller Remote Start	Inline	900	153	39	608.3	23.948818897637796	3	6.61	1/2 in. Square
QE8SC090F81S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Controller Remote Start	Inline	900	238.8	39.8	659	25.94488188976378	3.1	6.83	1/2 in. Square
QE8SC150F61S08	30.0 - 120.0	265.5-1062.1	22.1 - 88.5	150	Controller Remote Start	Inline	500	153	39	642.9	25.311023622047244	3.4	7.50	1/2 in. Square
