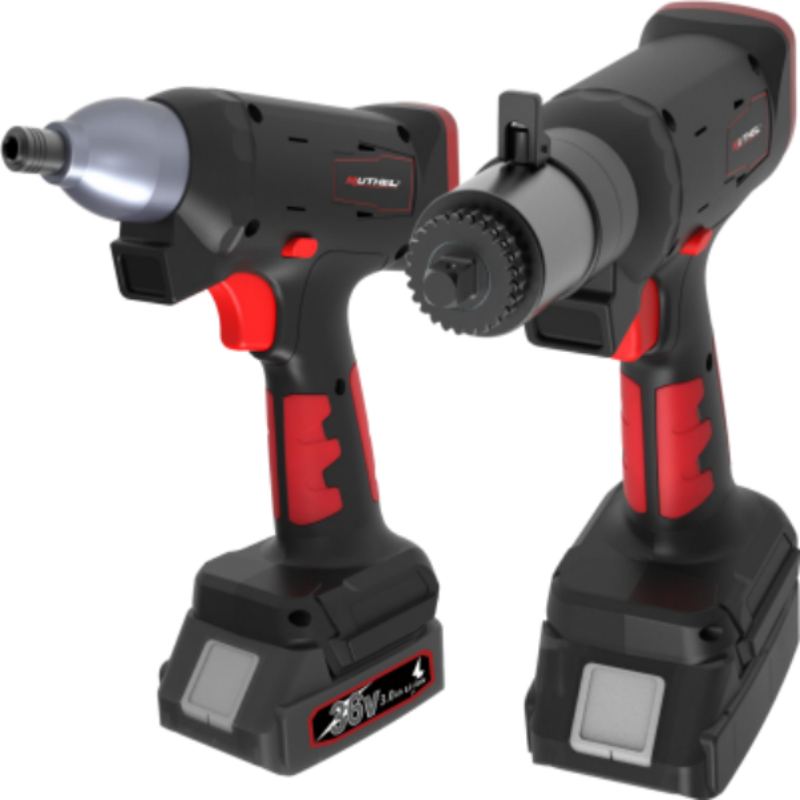

QM-P Series Charging Torque Wrench

The QM-PI2 and QM-PM2 gun-type small-torque brushless torque wrenches utilize a new generation of brushless motors, carbon-free brushes, closed-loop control, and multiple tightening strategies, while meeting high-precision and high-strength requirements.

Meeting both performance and safety requirements, the QM small-torque brushless torque wrench (under 200NM) features adjustable speed and torque output, adaptable to various soft and hard environments. The QM-PI2 model, built on a high-speed platform, delivers higher angular speed for precise tightening while supporting wireless and data functions.

Item No :
QM-P Series Charging Torque Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details

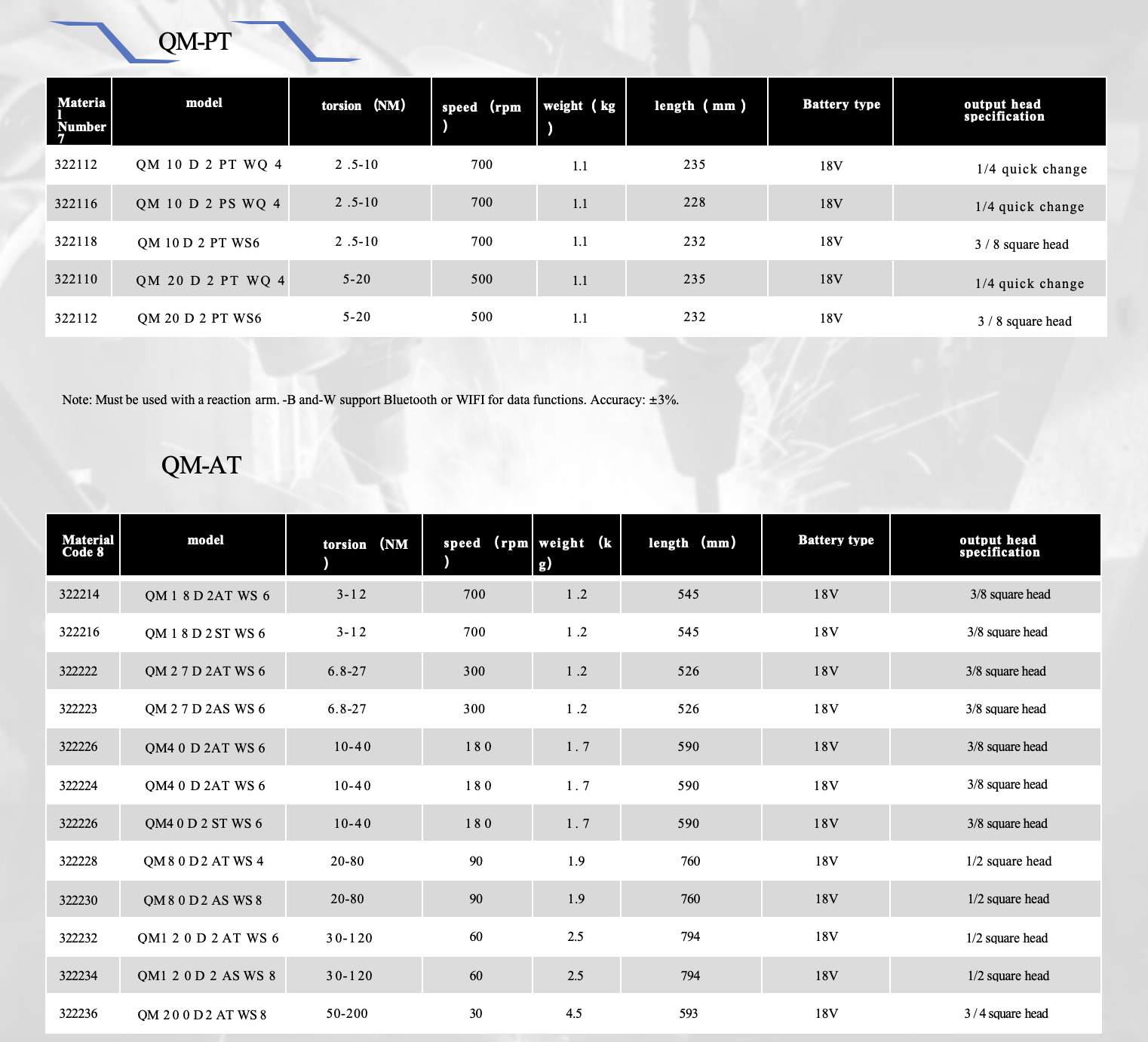

Model Specifications

32 programmable presets

Adjustable speed torque wrench

High reliability and stability with multi-pole gearbox

User (operator, administrator) level management

The buzzer provides a more direct notification

Supports TorquExplore, Open, and other transfer protocols

Tighten result judgment function

closed loop sensor

high capacity lithium battery

Optional mobile module *NB

Supports bolt-pointing log recording and USB log/data reading

Compatible with TGW series controllers, supporting alarm lights and scanning guns

Digital adjustment and display of torque and wrench working status parameters

Wrench overheating temperature monitoring (some models)

Accuracy ±3% to ±7% (depending on the model and fastening parameters)

Anti-reaction force arm locking to achieve unloading function

Optional Bluetooth support and WIFI wireless functionality

Supports torque, torque + angle, and angle mode

Supports data storage and transmission

This device can store more than 50,000 pieces of information.

Tags :

Related Downloads

Leave A Message

Categories

New Products

Related Products

The BM-L/BM-LP series represents the latest generation of brushless torque wrenches for small-screen charging. Featuring cutting-edge brushless motors, this series eliminates carbon brushes, requiring zero maintenance and offering exceptional durability. It operates instantly on standard power supply while meeting stringent requirements for high precision, robust performance, and safety. The series utilizes a high-precision planetary gear transmission system with an output ratio of 1:1.0. Equipped with high-capacity air-cooled batteries and fast-charging technology, it delivers ±5% accuracy. BM-LH/BM-LPH, with the planetary gear system with automatic transmission clutch, the no-load speed is 4-6 times of the standard model.
BM-L/BM-LP Numerical Control Brushless Charging Torque Wrench
The BM-D/BM-DP series represents the next-generation brushless large-screen torque wrenches. Featuring state-of-the-art brushless motors, these devices eliminate carbon brushes, require no maintenance, and deliver exceptional durability. They operate instantly on standard power supply while meeting stringent requirements for precision, strength, and safety. Equipped with a high-performance digital control module, they provide smooth and continuous torque control output. The series boasts ±5% high-precision torque, a high-capacity air-cooled battery, and a fast-charging charger. BM-DH/BM-DPH, with the planetary gear system with automatic transmission clutch, the no-load speed is 4-6 times of the standard model.
BM-D/BM-DP Brushless Large Screen Charging Torque Wrench Series / Smart Large Screen Charging Torque Wrench
The BM-R series features next-generation high-power 36V brushless motors with carbon-free brushes, offering maintenance-free operation, enhanced durability, and compliance with stringent requirements for high precision, strength, and safety. It incorporates a planetary gear transmission system with high precision output ratios, paired with high-capacity batteries and fast-charging technology, achieving ±5% accuracy. The BMR series delivers robust performance and exceptional speed.
BM-R 36V series CNC brushless charging torque wrench
The VM-D series represents the latest generation of digitally controlled electric torque wrenches. These devices operate on standard power supply, delivering high precision, robust performance, and safety features. Featuring a high-power-output planetary gear reduction system, the VM series achieves lightweight design. Equipped with a color control panel for precise torque adjustment and a high-performance digital control module, it ensures smooth and continuous torque output with ±5% accuracy.
VM-D series Single speed electric torque wrench
The VM-D-G2 series is a dual-speed handheld digital control electric torque wrench, featuring high-speed pre-tightening and low-speed final tightening. This series operates on standard power supply, meeting high-precision, high-strength, and safety requirements. The VM series employs a high-power-output planetary gear reduction system for lightweight design. With a color control panel for precise torque setting and a high-performance digital control module, it delivers smooth and continuous torque control. The precision is ±5%.
VM-D-G2 and VM-DA-G2 series CNC electric torque wrenches-dual-speed
The PNX series pneumatic gun torque wrenches are engineered for industrial applications requiring precision and high-volume operations. Featuring a precision high-speed gearbox design, they deliver stable and powerful continuous torque output, making them ideal for heavy-duty industrial environments where high-efficiency and stability are critical. Equipped with industry-leading precision motors, the PNX series ensures consistent performance even during prolonged operation. Customizable options include standard, long-bar, and bent-head high-speed variants to meet diverse needs. With an accuracy of ±5% and repeatability of ±2%, these wrenches deliver reliable performance across various applications.
PNEUMATIC TORQUE-PNX Series
The PNX series pneumatic gun torque wrenches are engineered for industrial applications requiring precision and high-volume operations. Featuring a precision high-speed gearbox design, they deliver stable and powerful continuous torque output, making them ideal for heavy-duty industrial environments where high-efficiency and stability are critical. Equipped with industry-leading precision motors, the PNX series ensures consistent performance even during prolonged operation. Customizable options include standard, long-bar, and bent-head high-speed variants to meet diverse needs. With an accuracy of ±5% and repeatability of ±2%, these wrenches deliver reliable performance across various applications.
Pneumatic Torque-PNX-LG Series
PRX series gun-type pneumatic torque wrench features a standard pneumatic motor and high-precision planetary gearbox, offering lightweight design and excellent cost-performance ratio, making it ideal for applications requiring both high efficiency and superior value. The precision is ±5% in the maintenance of the ratio.
PNEUMATIC TORQUE-R Series (PRX)
