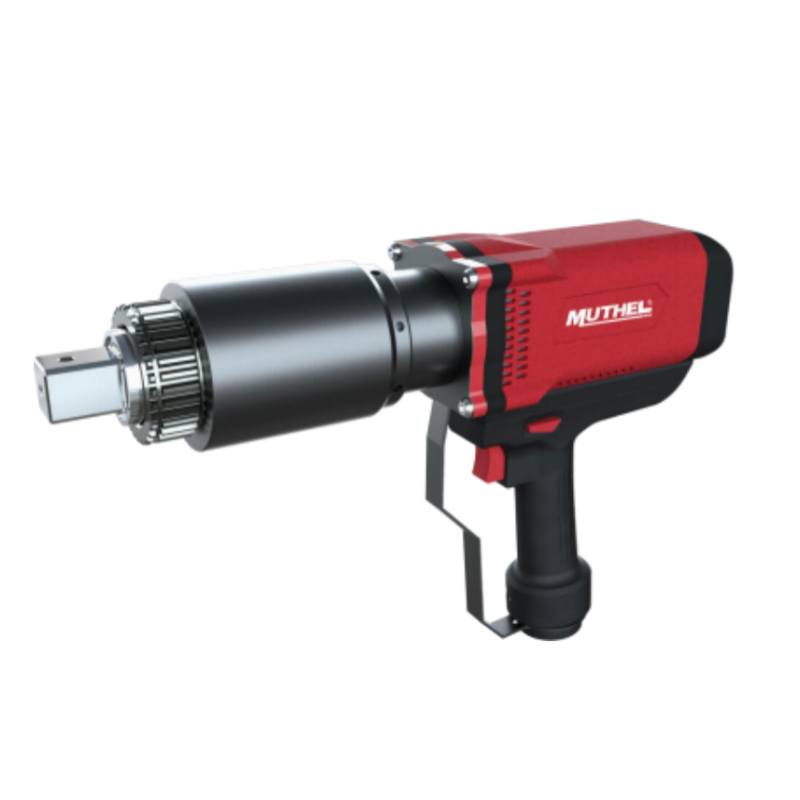

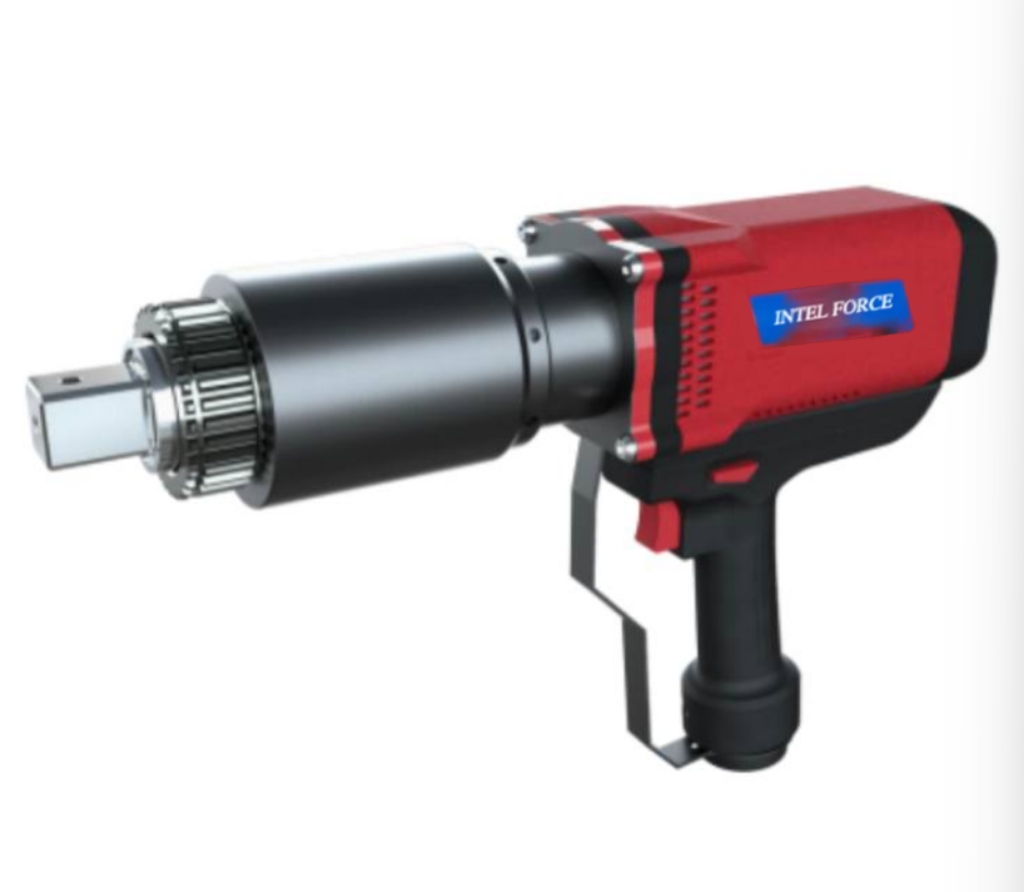

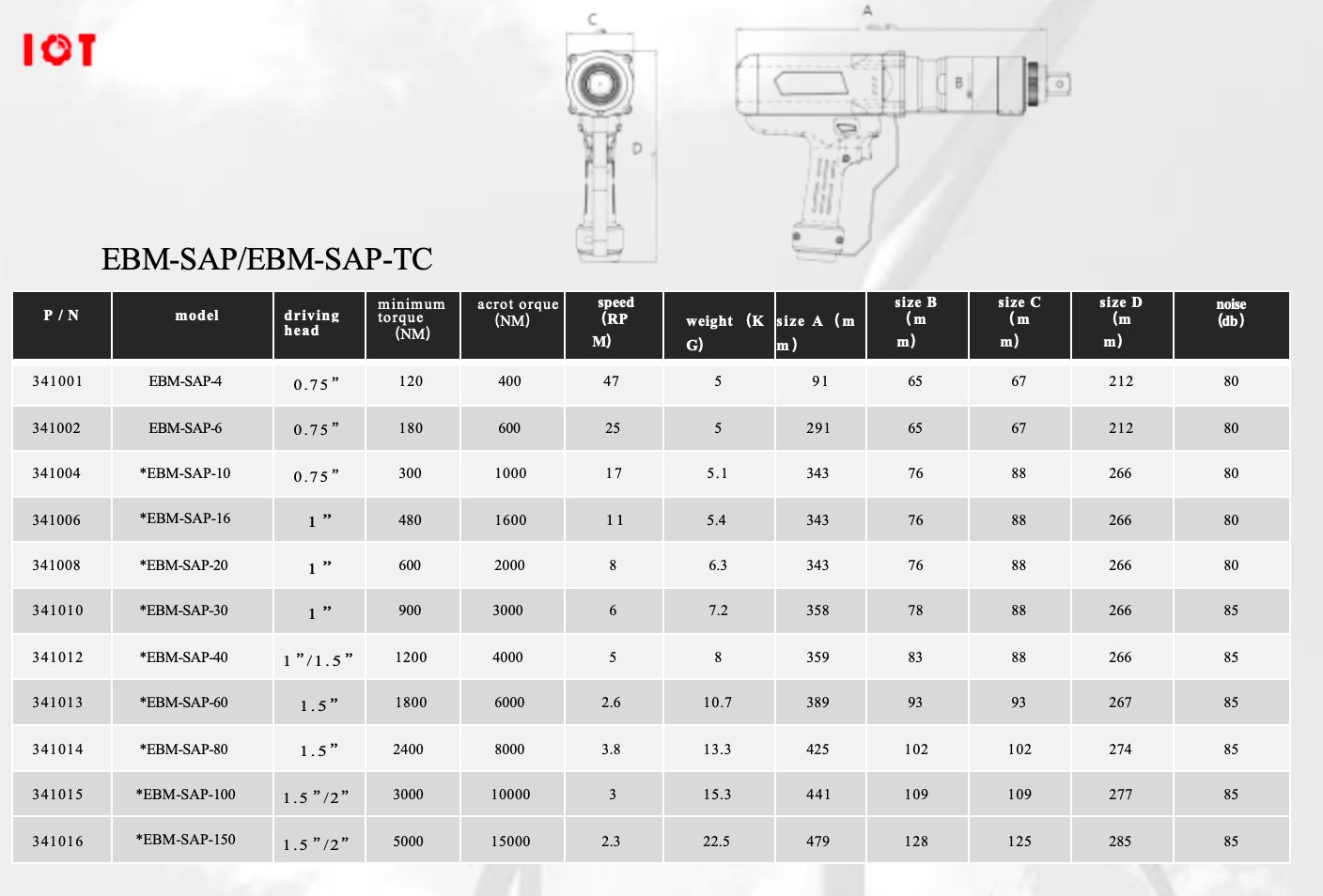

EBM-SAP-TC Series / EBM-SAP Series Intelligent Handheld Servo Torque Tightening Machine

220V power source

automatic decoupling reversal

Small Screen Communication

Supports barcode scanning

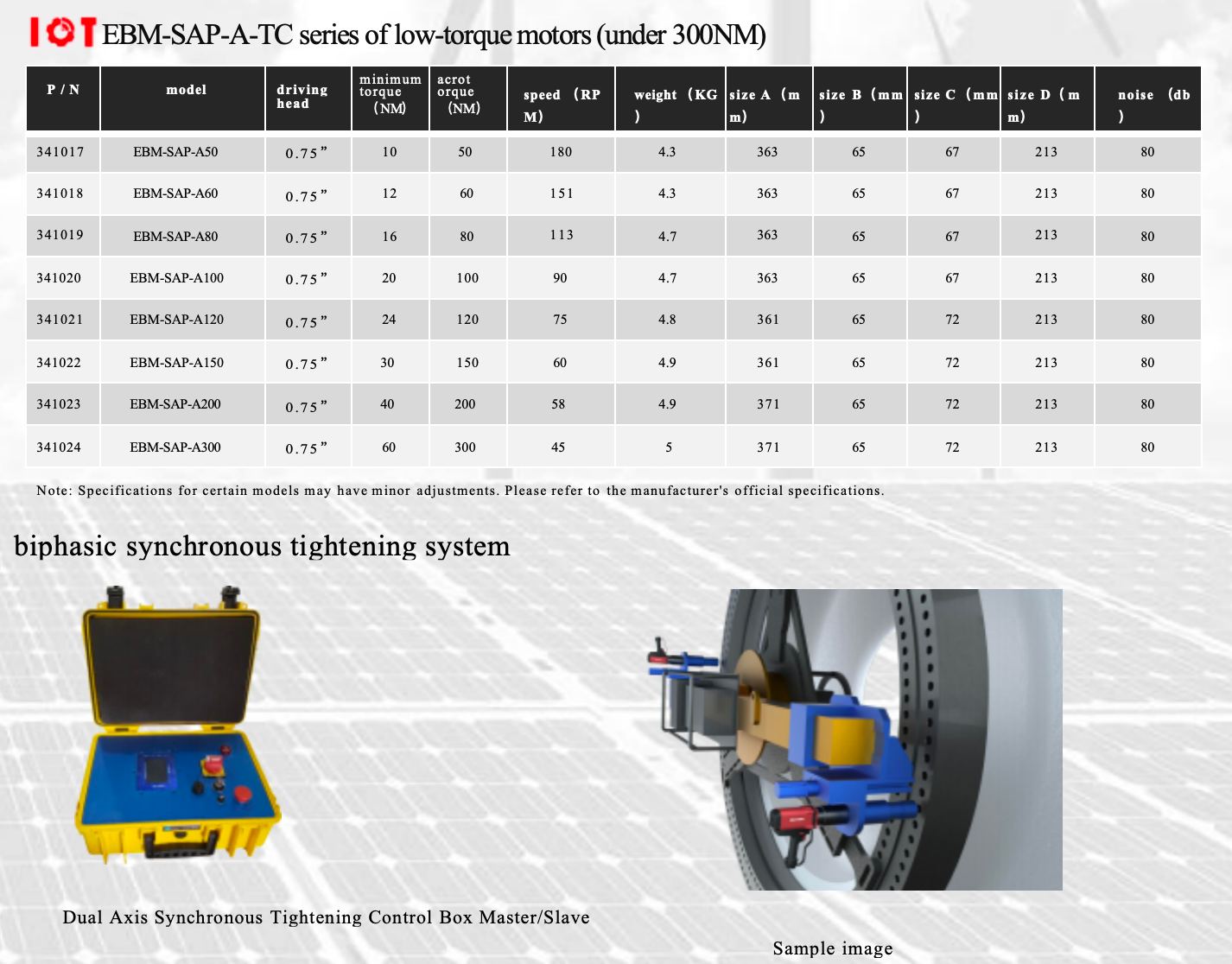

Optional dual-axis synchronization

Standard accuracy ±3% (main range)

Digital Torque Output Control and Angle Control

Supports multiple strategies including angle and torque

Supports both outdoor and indoor working environments

It meets user needs, and the output data can be freely controlled

Supports turntable and valve applications, with optional automatic recording of turns and reverse torque control.

±3% accuracy with 2% repeatability; TC version achieves up to ±2% accuracy, offering wider torque range

This device can store more than 50,000 pieces of information*P

Tightening steps: Multiple processes can be selected

Supports connection to host system and MES (optional)

Tightening control methods: Torque method, Angle method, Torque-angle method

Monitoring: Torque Angle Time Current

Tightening parameters: 10 or more sets

Supports USB connection

Multi-level user management

Support alarm column (optional)

Data backup and integration, upload

Use the menu function to set parameters

Save/Read/Print (Optional)

Supports the MODBUS protocol

RS485/RS232/Ethernet (optional)

Supports barcode scanners (optional)

Mobile module *NB (optional)
