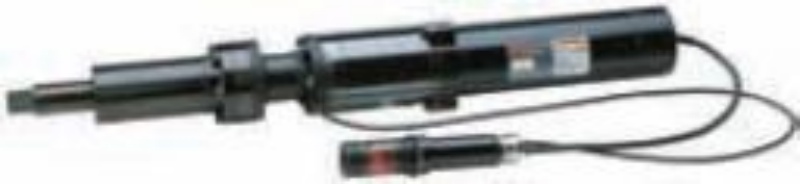

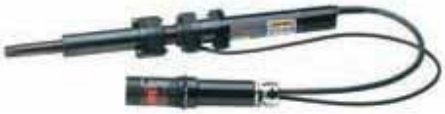

QM Series tools are the workhorse for your fixtured spindle applications. With four motor size platforms that provide broad torque, speed and size flexibility, Ingersoll Rand® QM spindles are different, by design. They are not only simple to use, but also offers excellent versatility that enables them to deliver the highest levels of performance in the industry. This series of spindles can be used in a wide range of assembly applications and fixture designs, offering ultimate flexibility.

Features

Torque range: 2-2500 Nm

Speeds: Adjustable to 1382 rpm

Better than 5 percent capability

High-duty cycle motors and components provide excellent durability

External electronics pod simplifies integration

Available with or without spindles in a variety of length and drive options

The QM9 series welcomes a new generation successor, the QM9C series. For sizes from 1000Nm upwards, we have brought a completely new drive design. Just as precise, just as durable, but in a more compact size. Used in diesel engines, heavy trucks, construction machinery and many other applications.
