Ingersoll Rand

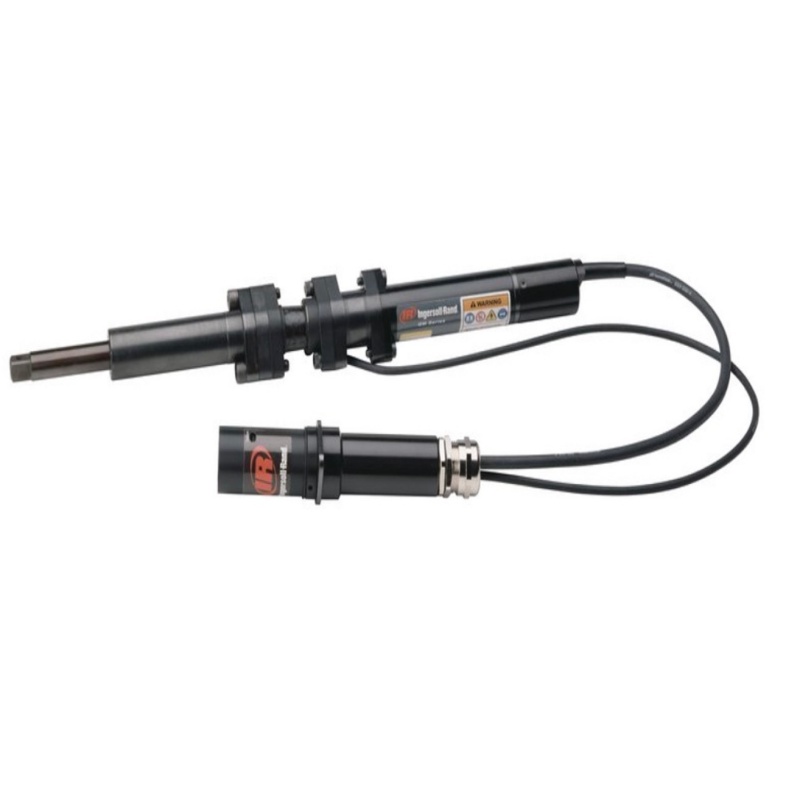

QM3 Series Fixtured Spindles

QM3 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM3 Torque Range 0.8-20Nm.

Item No :
QM3 Series Fixtured Spindles
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.4kg

Inquiry now

Product Details
Model Specifications

QM3 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM3 Torque Range 0.8-20Nm.

Features

Accuracy:

The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

With a heavy duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	C-C (mm)	Bolt Size	Square Drive (in)
QM3SS008H22S06	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M5	3/8
QM3SS008H22S08	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M5	1/2
QM3SS008H62S06	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M5	3/8
QM3SS008H62S08	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M5	1/2
QM3SS008H92S06	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	243.6	50	524	20.629921259842522	2.4	5.29	34	M4 - M5	3/8
QM3SS008H92S08	0.8-8	7.08-70.8	0.59 - 5.9	8	1382	243.6	50	524	20.629921259842522	2.5	5.51	34	M4 - M5	1/2
QM3SS012H22S06	1.2-12	10.62-106.2	0.9 - 8.8	12	927	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M6	3/8
QM3SS012H22S08	1.2-12	10.62-106.2	0.9 - 8.8	12	927	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M6	1/2
QM3SS012H62S06	1.2-12	10.62-106.2	0.9 - 8.8	12	927	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M6	3/8
QM3SS012H62S08	1.2-12	10.62-106.2	0.9 - 8.8	12	927	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M6	1/2
QM3SS012H92S06	1.2-12	10.62-106.2	0.9 - 8.8	12	927	243.6	50	524	20.629921259842522	2.5	5.51	34	M4 - M6	3/8
QM3SS012H92S08	1.2-12	10.62-106.2	0.9 - 8.8	12	927	243.6	50	524	20.629921259842522	2.5	5.51	34	M4 - M6	1/2
QM3SS016H22S06	1.6-16	14.16-141.6	1.2 - 11.7	16	686	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M6	3/8
QM3SS016H22S08	1.6-16	14.16-141.6	1.2 - 11.7	16	686	318.6	50	599	23.582677165354333	2.7	5.95	34	M4 - M6	1/2
QM3SS016H62S06	1.6-16	14.16-141.6	1.2 - 11.7	16	686	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M6	3/8
QM3SS016H62S08	1.6-16	14.16-141.6	1.2 - 11.7	16	686	168.6	50	449	17.67716535433071	2.4	5.29	34	M4 - M6	1/2
QM3SS016H92S06	1.6-16	14.16-141.6	1.2 - 11.7	16	686	243.6	50	524	20.629921259842522	2.5	5.51	34	M4 - M6	3/8
QM3SS016H92S08	1.6-16	14.16-141.6	1.2 - 11.7	16	686	243.6	50	524	20.629921259842522	2.5	5.51	34	M4 - M6	1/2
QM3SS020H22S06	2-20	17.7-177	1.5 - 14.7	20	545	318.6	50	599	23.582677165354333	2.7	5.95	34	M5 - M6	3/8
QM3SS020H22S08	2-20	17.7-177	1.5 - 14.7	20	545	318.6	50	599	23.582677165354333	2.7	5.95	34	M5 - M6	1/2
QM3SS020H62S06	2-20	17.7-177	1.5 - 14.7	20	545	168.6	50	449	17.67716535433071	2.4	5.29	34	M5 - M6	3/8
QM3SS020H62S08	2-20	17.7-177	1.5 - 14.7	20	545	168.6	50	449	17.67716535433071	2.4	5.29	34	M5 - M6	1/2
QM3SS020H92S06	2-20	17.7-177	1.5 - 14.7	20	545	243.6	50	524	20.629921259842522	2.5	5.51	34	M5 - M6	3/8
QM3SS020H92S08	2-20	17.7-177	1.5 - 14.7	20	545	243.6	50	524	20.629921259842522	2.5	5.51	34	M5 - M6	1/2
