Ingersoll Rand

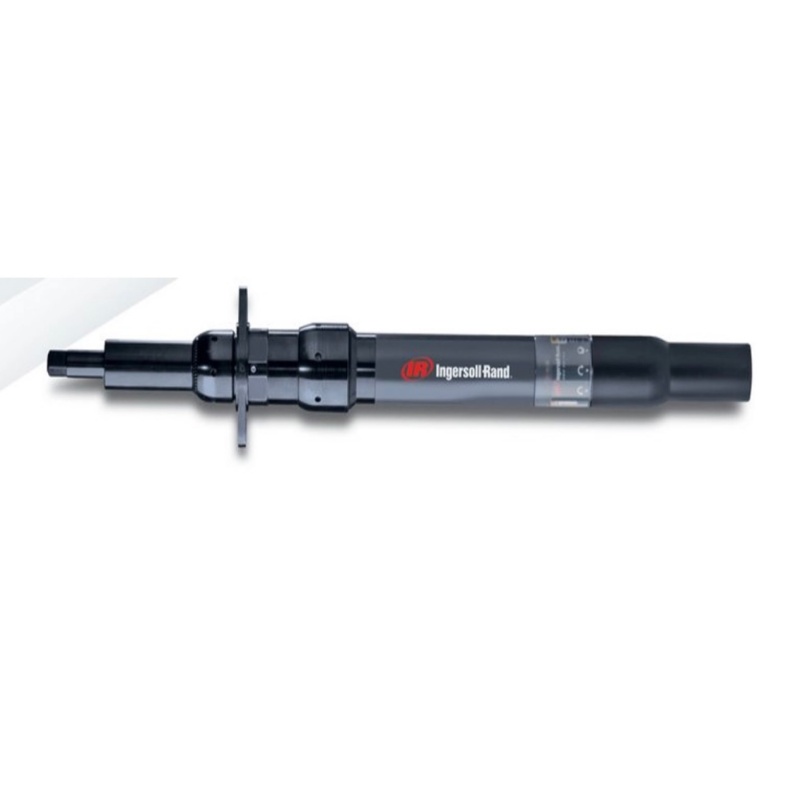

High-Speed QE8 Inline

QE8 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE8 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 13 Nm to 400 Nm. Available in Inline and Angle Configuration.

Item No :
High-Speed QE8 Inline
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE8ST055F41S08	11.0 - 44.0	97.4 - 389.4	8.1 - 32.5	55	Trigger Start	Inline	1470	102.7	20	557.5	21.948818897637796	3	6.61	1/2 in. Square
QE8ST055F61S08	11.0 - 44.0	97.4 - 389.4	8.1 - 32.5	55	Trigger Start	Inline	1470	153	39	608.3	23.948818897637796	3.1	6.83	1/2 in. Square
QE8ST055F81S08	11.0 - 44.0	97.4 - 389.4	8.1 - 32.5	55	Trigger Start	Inline	1470	204	39	659	25.94488188976378	3.2	7.05	1/2 in. Square
QE8ST070F41S08	14.0 - 56.0	123.9-495.6	10.3 - 41.3	70	Trigger Start	Inline	1160	102.7	20	557.5	21.948818897637796	3	6.61	1/2 in. Square
QE8ST070F61S08	14.0 - 56.0	123.9-495.6	10.3 - 41.3	70	Trigger Start	Inline	1160	153	39	608.3	23.948818897637796	3.1	6.83	1/2 in. Square
QE8ST070F81S08	14.0 - 56.0	123.9-495.6	10.3 - 41.3	70	Trigger Start	Inline	1160	204	39	659	25.94488188976378	3.2	7.05	1/2 in. Square
QE8ST090F41S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Trigger Start	Inline	900	102.7	20	557.5	21.948818897637796	3	6.61	1/2 in. Square
QE8ST090F61S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Trigger Start	Inline	900	153	39	608.3	23.948818897637796	3.1	6.83	1/2 in. Square
QE8ST090F81S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Trigger Start	Inline	900	204	39	659	25.94488188976378	3.2	7.05	1/2 in. Square
QE8ST150F41S08	30.0 - 120.0	265.5-1062.1	22.1 - 88.5	150	Trigger Start	Inline	500	102.7	20	557.5	21.948818897637796	3	6.61	1/2 in. Square
QE8ST150F61S08	30.0 - 120.0	265.5-1062.1	22.1 - 88.5	150	Trigger Start	Inline	500	153	39	608.3	23.948818897637796	3.1	6.83	1/2 in. Square
QE8ST150F81S08	30.0 - 120.0	265.5-1062.1	22.1 - 88.5	150	Trigger Start	Inline	500	204	39	659	25.94488188976378	3.2	7.05	1/2 in. Square
QE8ST230F02S08	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	346	50	827	32.55905511811024	5.7	12.57	1/2 in. Square
QE8ST230F02S12	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	346	50	819	32.24409448818898	5.7	12.57	3/4 in. Square
QE8ST230F61S08	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	153	39	725	28.543307086614174	5.5	12.13	1/2 in. Square
QE8ST230F62S12	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	244.6	50	717	28.228346456692915	5.5	12.13	3/4 in. Square
QE8ST230F81S08	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	204	39	776	30.551181102362207	5.6	12.35	1/2 in. Square
QE8ST230F82S12	46.0 - 184.0	407.1-1628.5	33.9 - 135.7	230	Trigger Start	Inline	340	295.4	50	768	30.236220472440948	5.6	12.35	3/4 in. Square
