Ingersoll Rand

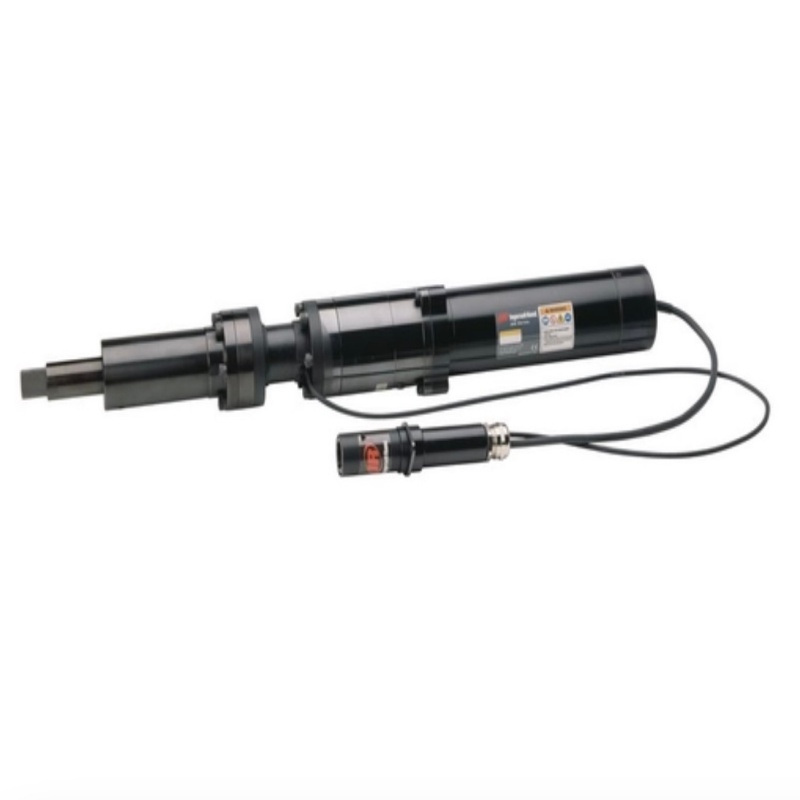

QM9 Series Fixtured Spindles

QM9 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM9 Torque Range 79-2500Nm.

Item No :
QM9 Series Fixtured Spindles
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

QM9 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM9 Torque Range 79-2500Nm.

Features

Accuracy:

The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

With a heavy-duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	C-C (mm)	Bolt Size	Square Drive (in)
QM9SS01KH62S16	100-1000	885-8850	74 - 735	1000	51	195.31	50	812.84	32.00157480314961	25	55.01	130	M16+	1
QM9SS15CH62S24	150-1500	1327.5-13275	110 - 1100	1500	51	222.18	50	871.88	34.32598425196851	32	70.55	146	M24+	1-1/2
QM9SS18CH62S24	180-1800	1593-15930	132 - 1323	1800	37	222.18	50	871.88	34.32598425196851	32	70.55	146	M24+	1-1/2
QM9SS20CH62S24	200-2000	1770-17700	147 - 1470	2000	31	222.18	50	871.88	34.32598425196851	32	70.55	146	M24+	1-1/2
QM9SS25CH62S24	250-2500	2212.5-22125	184.4-1843.9	2500	25	222.18	50	871.88	34.32598425196851	32	70.55	146	M24+	1-1/2
QM9SS315H22S12	31.5-315	278.775-2787.75	24 - 231	315	278	345.31	50	861	33.89763779527559	19.5	42.99	89	M10 - M16	1/2
QM9SS315H22S16	31.5-315	278.775-2787.75	24 - 231	315	278	345.31	50	861	33.89763779527559	19.6	43.21	89	M10 - M16	1
QM9SS315H62S12	31.5-315	278.775-2787.75	24 - 231	315	278	195.31	50	711	27.99212598425197	18.6	41.01	89	M10 - M16	1/2
QM9SS315H62S16	31.5-315	278.775-2787.75	24 - 231	315	278	195.31	50	711	27.99212598425197	18.67	41.16	89	M10 - M16	1
QM9SS315H92S12	31.5-315	278.775-2787.75	24 - 231	315	278	270.31	50	786	30.94488188976378	19.1	42.11	89	M10 - M16	1/2
QM9SS315H92S16	31.5-315	278.775-2787.75	24 - 231	315	278	270.31	50	786	30.94488188976378	19.2	42.33	89	M10 - M16	1
QM9SS435H22S12	43.5-435	384.975-3849.75	32 - 319	435	203	345.31	50	861	33.89763779527559	19.5	42.99	89	M12 - M18	1/2
QM9SS435H22S16	43.5-435	384.975-3849.75	32 - 319	435	203	345.31	50	861	33.89763779527559	19.6	43.21	89	M12 - M18	1
QM9SS435H62S12	43.5-435	384.975-3849.75	32 - 319	435	203	195.31	50	711	27.99212598425197	18.6	41.01	89	M12 - M18	1/2
QM9SS435H62S16	43.5-435	384.975-3849.75	32 - 319	435	203	195.31	50	711	27.99212598425197	18.67	41.16	89	M12 - M18	1
QM9SS435H92S12	43.5-435	384.975-3849.75	32 - 319	435	203	270.31	50	786	30.94488188976378	19.1	42.11	89	M12 - M18	1/2
QM9SS435H92S16	43.5-435	384.975-3849.75	32 - 319	435	203	270.31	50	786	30.94488188976378	19.2	42.33	89	M12 - M18	1
QM9SS520H22S12	52-520	460.2-4602	38 - 382	520	170	345.31	50	861	33.89763779527559	19.5	42.99	89	M12 - M20	1/2
QM9SS520H22S16	52-520	460.2-4602	38 - 382	520	170	345.31	50	861	33.89763779527559	19.6	43.21	89	M12 - M20	1
QM9SS520H62S12	52-520	460.2-4602	38 - 382	520	170	195.31	50	711	27.99212598425197	18.6	41.01	89	M12 - M20	1/2
QM9SS520H62S16	52-520	460.2-4602	38 - 382	520	170	195.31	50	711	27.99212598425197	18.67	41.16	89	M12 - M20	1
QM9SS520H92S12	52-520	460.2-4602	38 - 382	520	170	270.31	50	786	30.94488188976378	19.1	42.11	89	M12 - M20	1/2
QM9SS520H92S16	52-520	460.2-4602	38 - 382	520	170	270.31	50	786	30.94488188976378	19.2	42.33	89	M12 - M20	1
QM9SS650H62S16	65-650	575.25-5752.5	48 - 477	650	136	195.31	50	711	27.99212598425197	18.67	41.16	89	M14 - M22	1
QM9SS650H92S16	65-650	575.25-5752.5	48 - 477	650	136	270.31	50	786	30.94488188976378	19.6	43.21	89	M14 - M22	1
