Ingersoll Rand

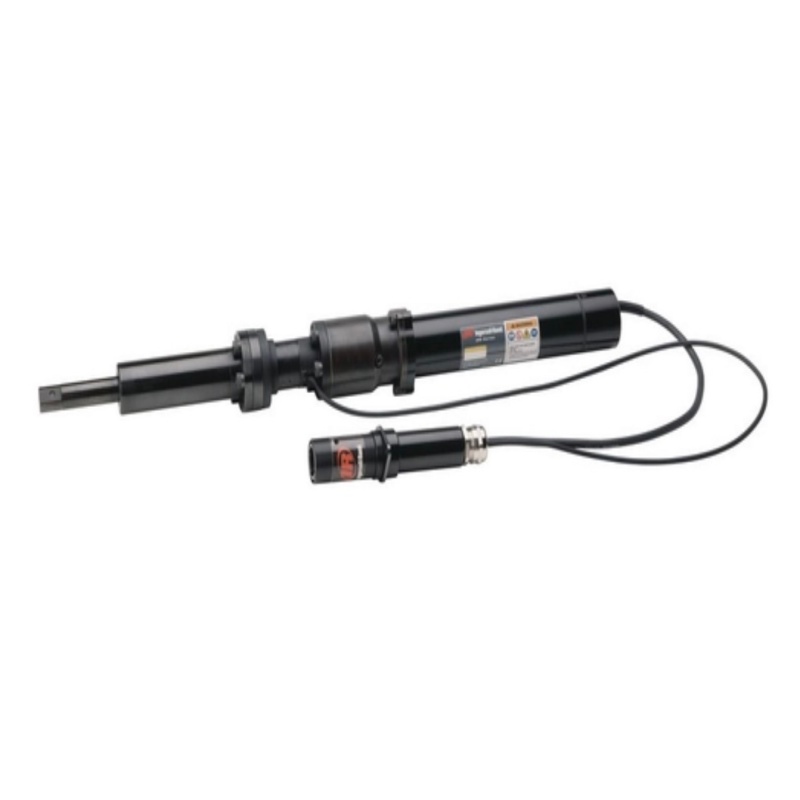

QM7 Series Fixtured Spindles

QM7 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM7 Torque Range 19-220Nm

Item No :
QM7 Series Fixtured Spindles
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

QM7 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM7 Torque Range 19-220Nm

Features

Accuracy:

The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

With a heavy duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	C-C (mm)	Bolt Size	Square Drive (in)
QM7SS190H22S08	19-190	168.15-1681.5	14 - 139	190	273	343.85	50	794	31.25984251968504	8.85	19.5	70	M10 - M12	1/2
QM7SS190H22S12	19-190	168.15-1681.5	14 - 139	190	273	343.85	50	794	31.25984251968504	8.9	19.62	70	M10 - M12	3/4
QM7SS190H62S08	19-190	168.15-1681.5	14 - 139	190	273	193.85	50	645	25.393700787401578	8.4	18.52	70	M10 - M12	1/2
QM7SS190H62S12	19-190	168.15-1681.5	14 - 139	190	273	193.85	50	645	25.393700787401578	8.4	18.52	70	M10 - M12	3/4
QM7SS190H92S08	19-190	168.15-1681.5	14 - 139	190	273	268.85	50	720	28.34645669291339	8.63	19.0	70	M10 - M12	1/2
QM7SS190H92S12	19-190	168.15-1681.5	14 - 139	190	273	268.85	50	720	28.34645669291339	8.67	19.1	70	M10 - M12	3/4
QM7SS220H22S12	22-220	194.7-1947	16.2 - 161	220	233	343.85	50	794	31.25984251968504	8.9	19.62	70	M10 - M14	3/4
QM7SS220H62S12	22-220	194.7-1947	16.2 - 161	220	233	193.85	50	645	25.393700787401578	8.4	18.52	70	M10 -M14	3/4
QM7SS220H92S12	22-220	194.7-1947	16.2 - 161	220	223	268.85	50	720	28.34645669291339	8.67	19.1	70	M10 - M14	3/4
