Ingersoll Rand

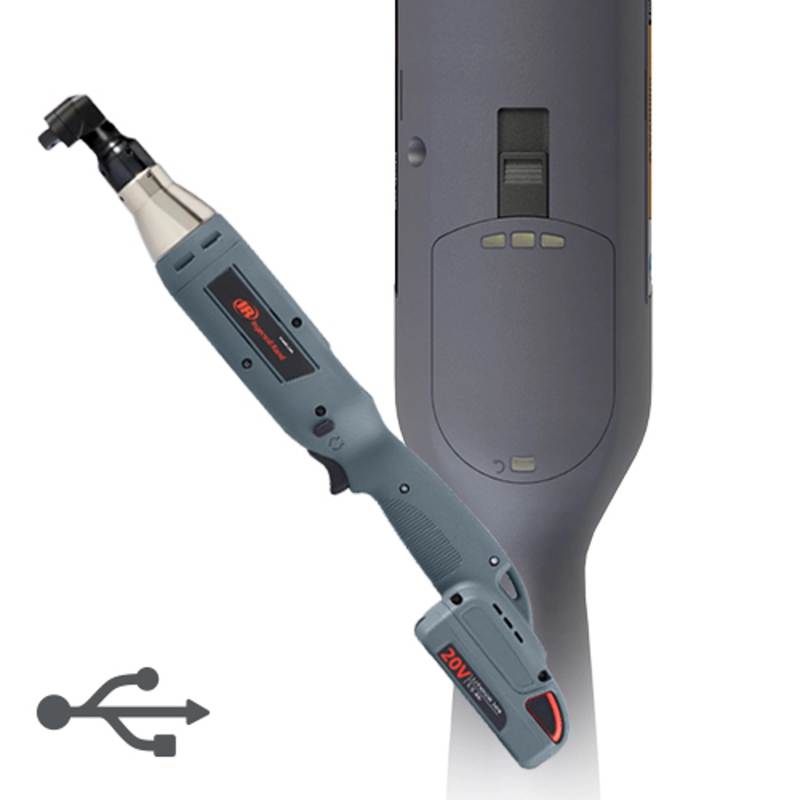

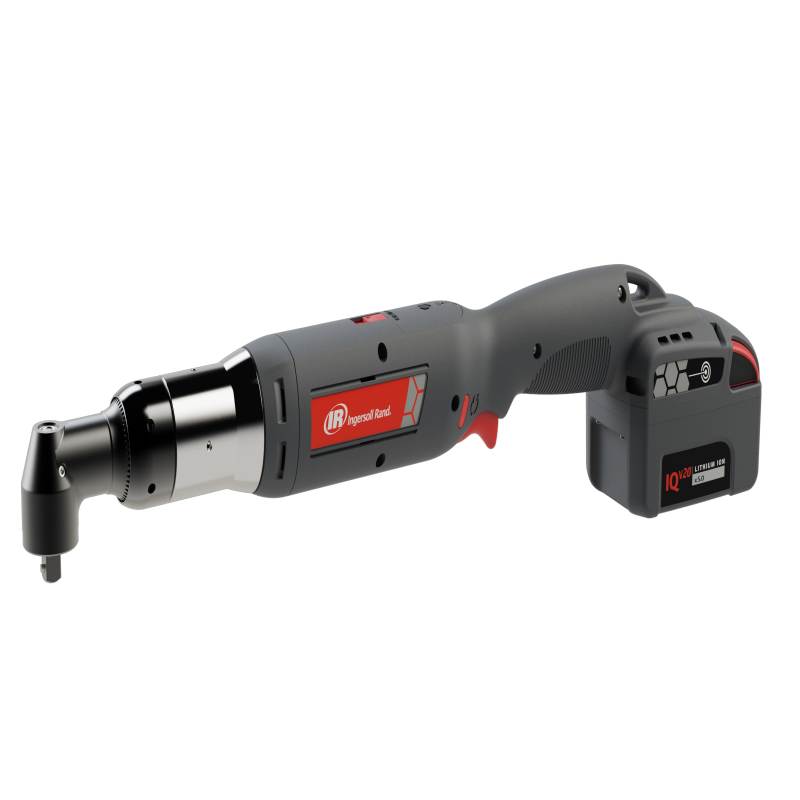

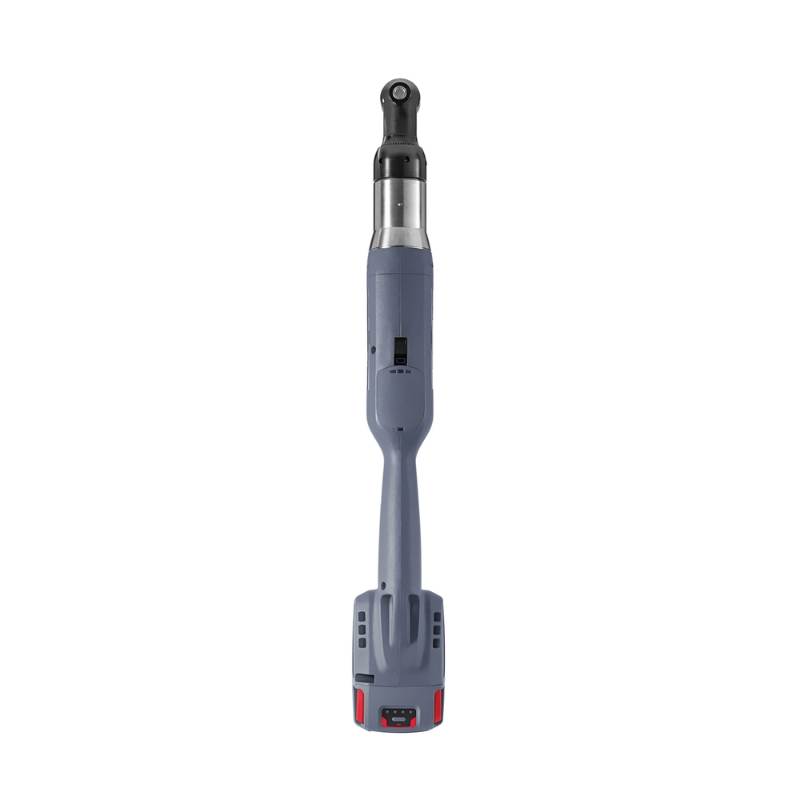

QXFN Cordless Angle Wrench

Designed to replace traditional clutch tools, the 20V angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System.

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Item No :
QXFN Cordless Angle Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

QXFN Cordless Angle Wrench

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features

/qx-etsNow Comes with 32 programmable tightening configuration

Available in Pistol and Angle Configuration

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using Green, Red, and Yellow indicators

All QX Series™ IQV®20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQV® Lithium Ion Universal charger BC1121.

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Insight Connect Android APP Link

Programming Methods

Through USB with Insight Connect App available on Android

ICS Software

INISGHTqcx Controllers

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side To Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)
QXFN2AT05PQ4	Right Angle	1.0-5	9-44	1213	1/4 in. Quick Change	USB Only	No	20V Li-ion	1.14	2.5	9.2	0.36	550.2	21.67	80.6	3.17	100
QXFN2AT10PS6	Right Angle	2.0-10	18-89	936	3/8 in. Square	USB Only	No	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100
QXFN2AT15PS6	Right Angle	3.0-15	27-133	600	3/8 in. Square	USB Only	No	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100
QXFN2AT18PQ4	Right Angle	3.6-18	32-159	500	1/4 in. Quick Change	USB Only	No	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100
QXFN2AT18PS6	Right Angle	3.6-18	32-159	500	3/8 in. Square	USB Only	No	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100
QXFN2AT27ES6	Right Angle-ETS	5.4-27	48-239	330	3/8 in. Square	USB Only	No	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100
QXFN2AT27PS6	Right Angle	5.4-27	48-239	330	3/8 in. Square	USB Only	No	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100
