Ingersoll Rand

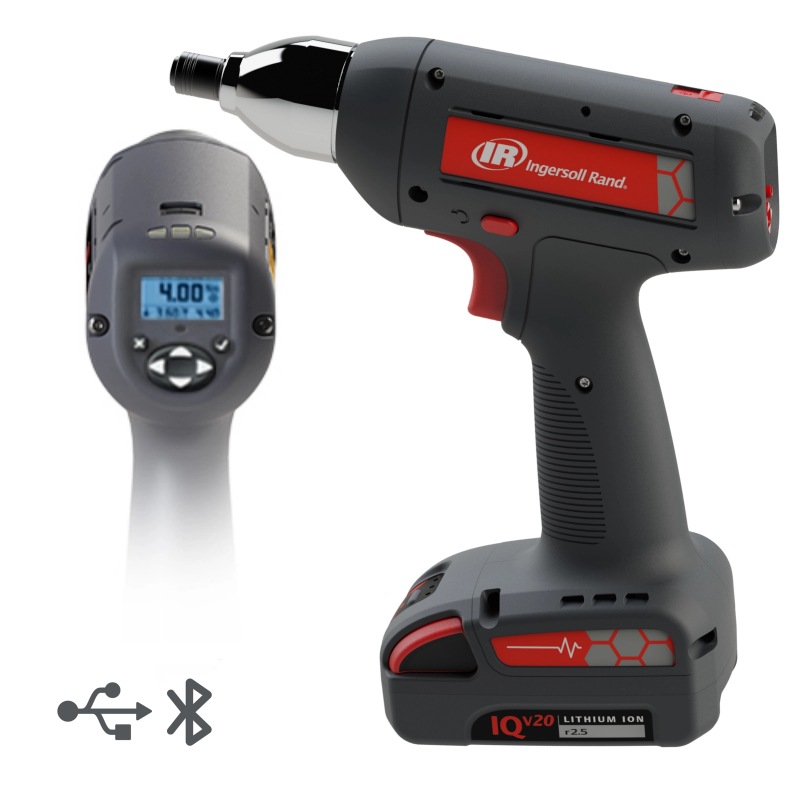

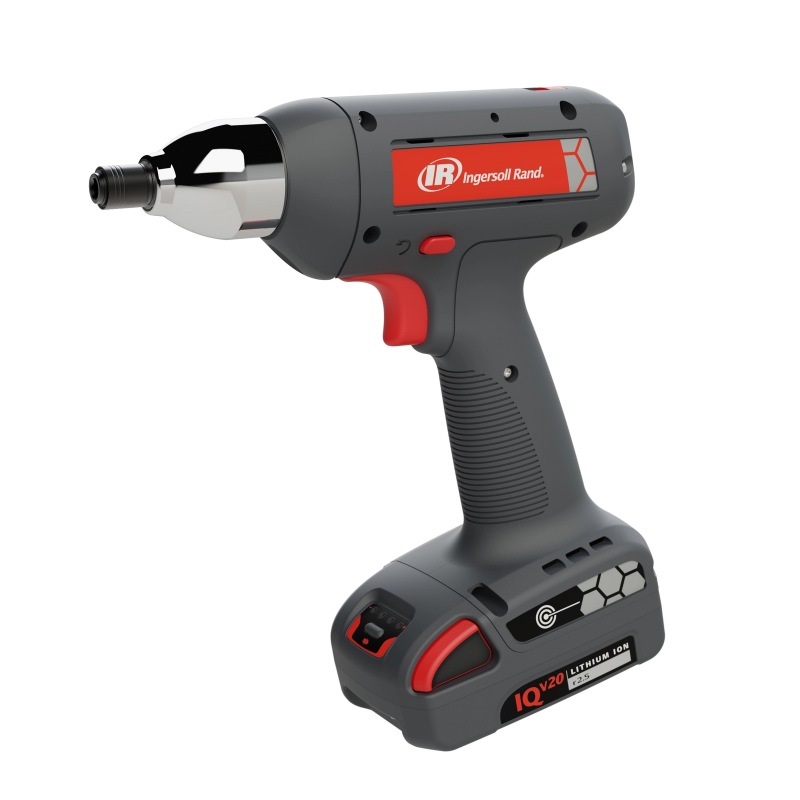

QXFN Cordless Precision Screwdriver, Pistol Grip

QXFN Cordless Precision Screwdriver, Pistol Grip

Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System.

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Item No :
QXFN Cordless Precision Screwdriver, Pistol Grip
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features

Now Comes with 32 programmable tightening configuration

Available in Pistol and Angle Configuration

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using Green, Red, and Yellow indicators

All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQV® Lithium Ion Universal charger BC1121.

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Insight Connect Android APP Link

Programming Methods

Through USB with Insight Connect App available on Android

ICS Software

INSIGHTqcx Controllers

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side To Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)	Height with large battery (in)
QXFN2PT004PQ04	Pistol	0.8-4	7-35	1500	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT004PS04	Pistol	0.8-4	7-35	1500	1/4 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXFN2PT004PS06	Pistol	0.8-4	7-35	1500	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT008EQ04	Pistol-ETS	1.6-8	14-70	1150	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT008ES06	Pistol-ETS	1.6-8	14-70	1150	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT008PQ04	Pistol	1.6-8	14-70	1150	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT008PS04	Pistol	1.6-8	14-70	1150	1/4 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXFN2PT008PS06	Pistol	1.6-8	14-70	1150	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT024ES06	Pistol-ETS	2.4-12	21-106	750	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT012ES06	Pistol-ETS	2.4-12	21-106	750	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT012PQ04	Pistol	2.4-12	21-106	750	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT012PS04	Pistol	2.4-12	21-106	750	1/4 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXFN2PT012PS06	Pistol	2.4-12	21-106	750	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT018EQ04	Pistol-ETS	3.6-18	32-159	500	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT018ES06	Pistol-ETS	3.6-18	32-159	500	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT018PQ04	Pistol	3.6-18	32-159	500	1/4 in. Quick Change	USB Only	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXFN2PT018PS06	Pistol	3.6-18	32-159	500	3/8 in. Square	USB Only	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXFN2PT024ES06	Pistol – ETS	4.8 – 24	42 - 212	500	3/8” Square	USB Only	No	20V Li-Ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
