Ingersoll Rand

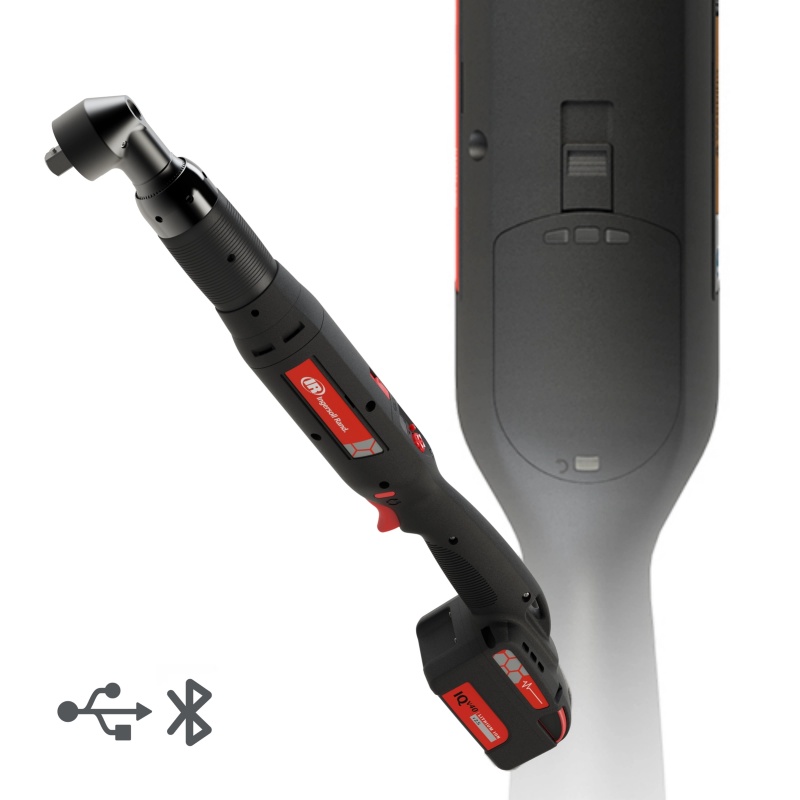

QXXN Cordless Angle Wrench

A member of the QX Connect Series Precision Fastening System, the 20V angle QXXD and QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System.

The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Item No :
QXXN Cordless Angle Wrench
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features

Now Comes with 32 programmable tightening configuration

Optional Bluetooth models (QXXD, QXXN) further adds mobility to enable Wireless programming using the INSIGHT Connect app

Available in Pistol and Angle Configuration

Enhanced quantitative feedback – displaying the actual measured torque or angle result

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using Green, Red, and Yellow indicators

All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQv Lithium Ion Universal charger BC1121.

Offer option for Insight Connect Android APP

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side to Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)	Height with large battery (in)
QXXN2AT005PQ04	Right Angle	1.0-5	9-44	1213	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	1.14	2.5	9.2	0.36	550.2	21.67	80.6	3.17	100	3.94
QXXN2AT010PS06	Right Angle	2.0-10	18-89	936	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100	3.94
QXXN2AT015PS06	Right Angle	3.0-15	27-133	600	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	1.18	2.6	12.5	0.49	525	20.67	80.6	3.17	100	3.94
QXXN2AT018PQ04	Right Angle	3.6-18	32-159	500	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100	3.94
QXXN2AT018PS06	Right Angle	3.6-18	32-159	500	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	1.27	2.8	13.3	0.52	542	21.34	80.6	3.17	100	3.94
QXXN2AT027ES06	Right Angle-ETS	5.4-27	48-239	330	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	1.68	3.7	17.2	0.67	552	21.73	80.6	3.17	100	3.94
