Ingersoll Rand

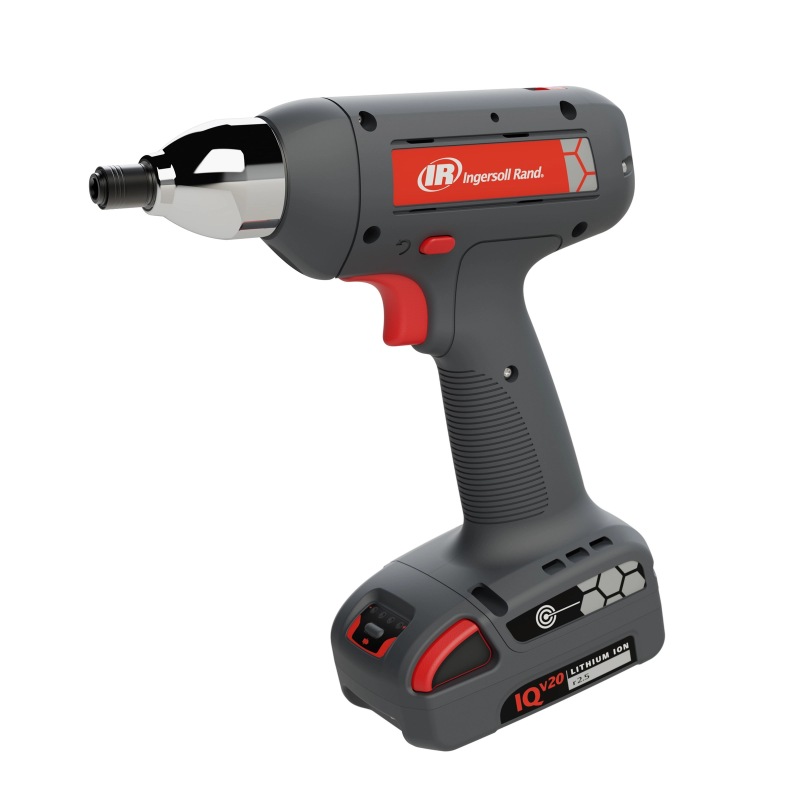

QXXN Precision Screwdriver, Pistol Grip

With all new bluetooth connectivity to insight connect app, the tool is designed to improve accuracy and increase the productivity of your assembly line with the 20V QXX Pistol Precision Screwdriver. QXXN Offering up to 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! and wireless connectivity to our Insight Controller Platform Reducing torque reaction doesn’t have to be complicated with the QX- ETS Series Ergonomic Tightening System.

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Item No :
QXXN Precision Screwdriver, Pistol Grip
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features

Now Comes with 32 programmable tightening configuration

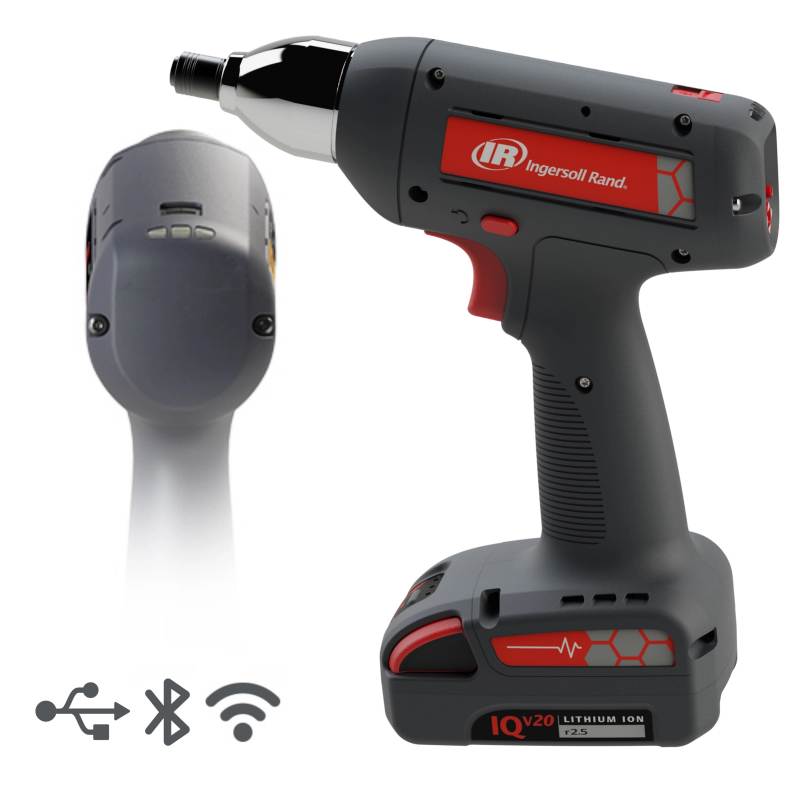

Optional Bluetooth models (QXXD, QXXN) further adds mobility to enable Wireless programming using the INSIGHT Connect app

Available in Pistol and Angle Configuration

Enhanced quantitative feedback – displaying the actual measured torque or angle result

1,200 cycles of onboard tightening data storage

Configurable preventative maintenance alarms

Intuitive qualitative feedback using Green, Red, and Yellow indicators

All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our IQv Lithium Ion Universal charger BC1121.

Offer option for Insight Connect Android APP LINK

Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.

Multiple Programming Methods

Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App

Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Model	Configuration	Torque Range (Nm)	Torque Range (in-lbs)	Free Speed (RPM)	Drive Size/Type	Communication	Display	Battery Type	Weight w/out Battery (kg)	Weight w/out Battery (lbs)	Side to Center (mm)	Side To Center (in)	Length (mm)	Length (in)	Height with slim battery (mm)	Height with slim battery (in)	Height with large battery (mm)	Height with large battery (in)
QXXN2PT004PQ04	Pistol	0.8-4	7-35	1500	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT004PS04	Pistol	0.8-4	7-35	1500	1/4 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXXN2PT004PS06	Pistol	0.8-4	7-35	1500	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT008EQ04	Pistol-ETS	1.6-8	14-70	1150	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT008ES06	Pistol-ETS	1.6-8	14-70	1150	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT008PQ04	Pistol	1.6-8	14-70	1150	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT008PS04	Pistol	1.6-8	14-70	1150	1/4 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXXN2PT008PS06	Pistol	1.6-8	14-70	1150	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT012EQ04	Pistol-ETS	2.4-12	21-106	750	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT012ES06	Pistol-ETS	2.4-12	21-106	750	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT012PQ04	Pistol	2.4-12	21-106	750	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT012PS04	Pistol	2.4-12	21-106	750	1/4 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	199.3	7.85	237	9.33	255.7	10.07
QXXN2PT012PS06	Pistol	2.4-12	21-106	750	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT018EQ04	Pistol-ETS	3.6-18	32-159	500	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT018ES06	Pistol-ETS	3.6-18	32-159	500	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT018PQ04	Pistol	3.6-18	32-159	500	1/4 in. Quick Change	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	206.5	8.13	237	9.33	255.7	10.07
QXXN2PT018PS06	Pistol	3.6-18	32-159	500	3/8 in. Square	Wireless Enabled + USB	No	20V Li-ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
QXXN2PT024ES06	Pistol – ETS	4.8 – 24	42 - 212	500	3/8” Square	Wireless Enabled + USB	No	20V Li-Ion	0.91	2	26	1	203	7.99	237	9.33	255.7	10.07
