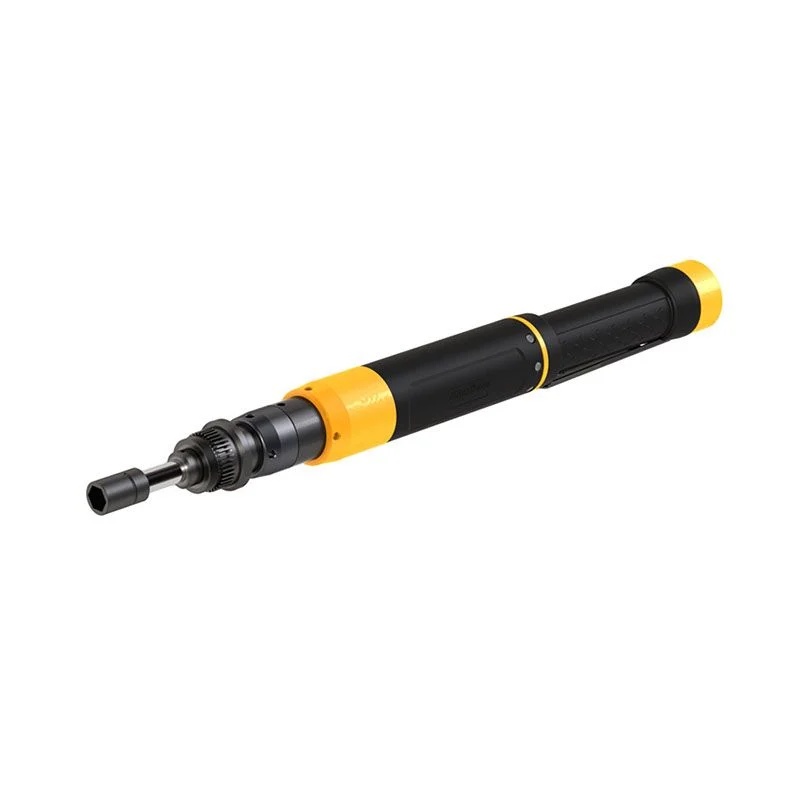

Straight Cable Nutrunner Tensor ES Robust design for quality-critical industrial applications

General Overview

The TensorStraight Cable Nutrunner Tensor ES is designed for tough working environments. Its durable design and built-in torque transducer make it an easy choice for industrial applications where quality is critical. Tensor ES tools are an excellent alternative to traditional pneumatic tools due to their improved accuracy, low noise and vibration levels, and a variety of tightening control options. In addition to onboard LED lights for operator feedback, the Tensor ES has a modular design for ease of maintenance and serviceability.

Item No :
Straight Cable Nutrunner Tensor ES
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2kg

Inquiry now

Product Details
Model Specifications

he TensorStraight Cable Nutrunner Tensor ES is designed for tough working environments. Its durable design and built-in torque transducer make it an easy choice for industrial applications where quality is critical. Tensor ES tools are an excellent alternative to traditional pneumatic tools due to their improved accuracy, low noise and vibration levels, and a variety of tightening control options. In addition to onboard LED lights for operator feedback, the Tensor ES has a modular design for ease of maintenance and serviceability.

Features

+/-7.5% over six sigma accuracy

Built-in Transducer

Patented TurboTight strategy

Sealed-durable construction

Visual operator feedback via 360 degree LED

Hot swap capable

Benefits

Fully traceable quality-critical tightenings

Unsurpassed operator comfort

Reduced operating cost

Improved usability

Operator friendly

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	23MM
Length	456 mm
Output size	3/8"
Weight	4.1lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Legislation	\|\|2006/42/EC (MD)\|\|2011/65/EU (RoHS)\|\|2014/53/EU(RED)
	\|\|2015/863/EU (RoHS amendment)
EU Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301 489-1
	V2.1.1\|\|EN 301 489-17 V3.1.1\|\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN 61000-6-2:2019\|\|EN 61000-6-
	3:2007+A1:2011\|\|EN 61000-6-4:2007+A1:2011\|\|EN 62841-
	1\|\|EN 62841-2-2
KC certified	Yes
KC ID	R-REI-50A-ETVES61
Tolerance Class	TK15
UK Regulations	\|\|S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 301 489-1 V2.1.1\|\|EN 301
	V2.1.1\|\|EN 301 489-17 V3.1.1\|\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN 61000-6-2:2019\|\|EN 61000-6-
	3:2007+A1:2011\|\|EN 61000-6-4:2007+A1:2011\|\|EN 62841-
	1\|\|EN 62841-2-2
WEEE	5 - Small equipment <50cm
Torque
Torque range max	22.1 ft-lb
Torque range min	8.9 ft-lb
Torque scatter	≤ 7.5 %
Design & Functions
Model type	Straight
Output type	Square, Male
Shut-off system	Transducer

Spline/Mounting	1
Tool family	ES
SCIP	68c2f2d6-c770-45dc-b4e1-5cfc88785683
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Battery information
Battery	Li-Io 36 V
Type of battery	1 Li-ion
Weight incl. Battery	9.7 lb
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Speed range max	1077 r/min
