Atlas Copco

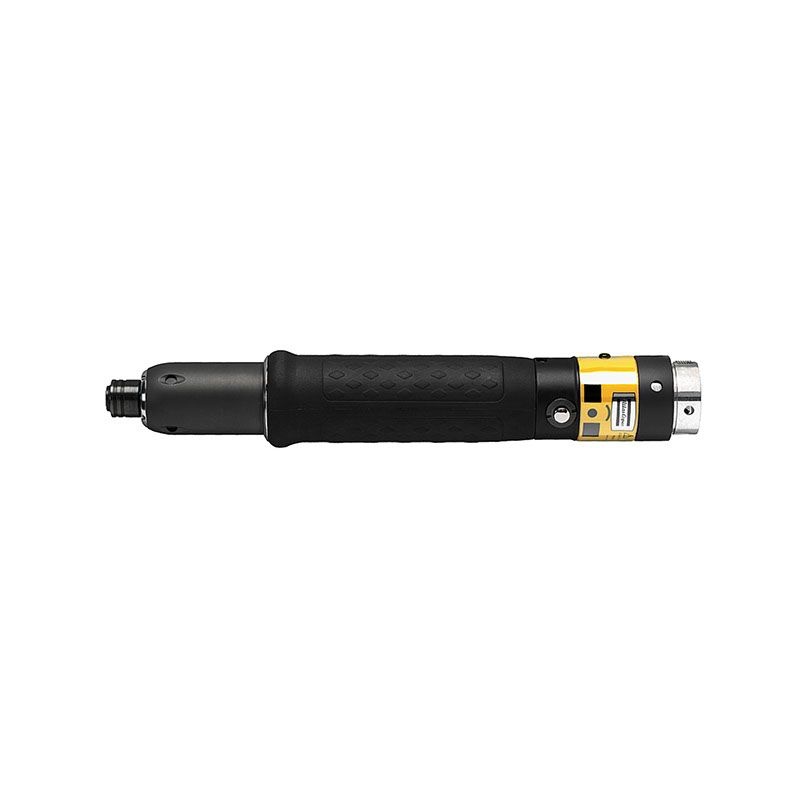

Straight Cable Nutrunner Tensor SR ETD SR21-16-I06-T25

The robust, yet compact, Straight Cable Nutrunner Tensor SR with built-in torque transducer delivers an unmatched power-to-weight ratio and Industry leading accuracy. The shorter body of Tensor SR is ideal for cramped spaces and allows for better operator ergonomics without sacrificing speed, power or accuracy. In addition, the Tensor SR provides safety-critical accuracy and fully traceable results.

Item No :
Straight Cable Nutrunner Tensor SR ETD SR21-16-I06-T25
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.71kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer

Push-to-start and fixture capability

Front LED guide lights

Configurable LED lights and function button

ESD certified

Benefits

Full traceability

For limited-access applications

Intuitive operator feedback

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Length	227 mm
CS distance	24 mm
Output size	1/4"
Weight	0.9 lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC ID	R-REI-50A-ETDSR21
KC certified	Yes
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	11.8 ft-lb
Torque range min	2.6 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Model type	Straight
Output feature	Bit holder
Output type	Hexagon, Female
SCIP	644e5221-93ba-411d-bf78-1dc70cec5233
Shut-off system	Transducer
Tool family	SR
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	1460 r/min
