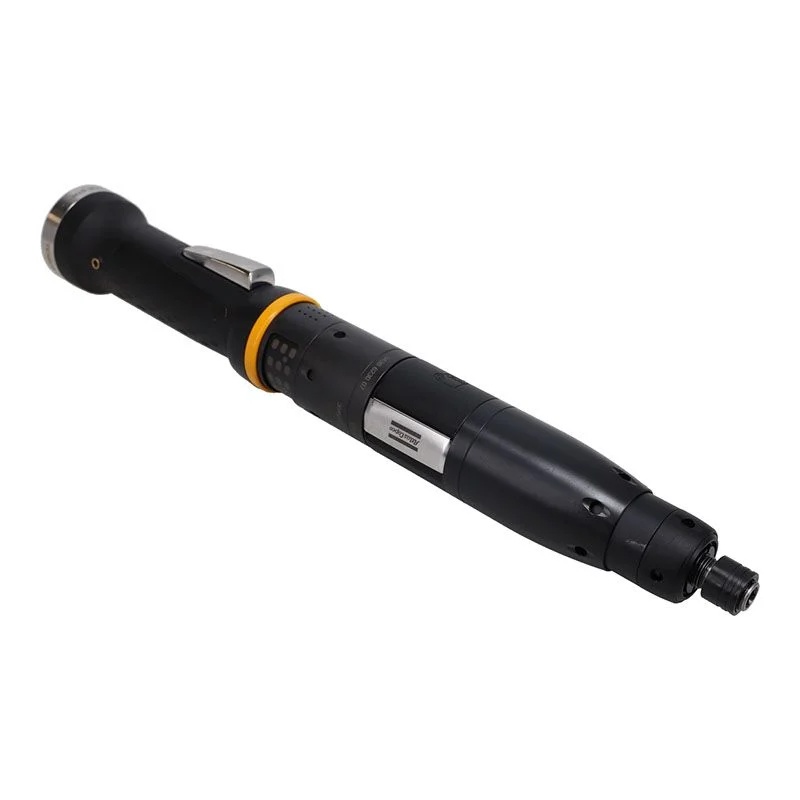

Straight Cable Nutrunner Tensor STR ETD STR31-05-I06-QC

Take productivity to new levels with the revolutionary Straight Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.

Item No :
Straight Cable Nutrunner Tensor STR ETD STR31-05-I06-QC
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.45kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer

Patented TurboTight strategy

Built in gyroscope and TrueAngle technology

Robust IP54 class rated

Reduced weight

Configurable LEDs

Integrated speaker and vibration

Benefits

Full traceability

Unsurpassed operator comfort

Tightening without operator influence

Reduced total cost of ownership

Reduced operator training time

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	24 mm
Length	350 mm
Output size	1/4"
Weight	2.2 lb
Certifications, standards & directives
CQC certified	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-
	2-2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC certified	Yes
KC ID	na
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	3.6 ft-lb
Torque range min	0.7 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Model type	Straight
Output feature	Bit holder
Output type	Hexagon, Female
Shut-off system	Transducer
Spline/Mounting	-/14
Tool family	STR
Power
Motor power	1500 W
Motor voltage	200 V
Motor voltage type	3 d.c.
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	3645 r/min
