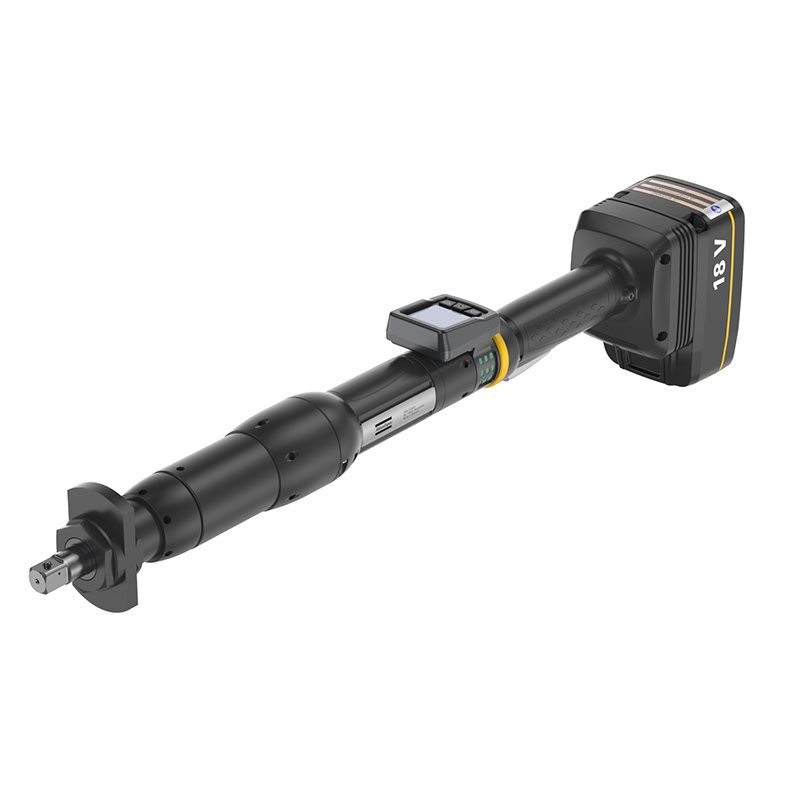

Straight Cordless Nutrunner Tensor ITB-S Tensor ITB brings productivity and assembly quality to the next level ITB-S61-120-13-HMI

General Overview

Straight Cordless Nutrunner Tensor ITB-S, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-S offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-S is part of the Tensor IxB Family which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.

Item No :
Straight Cordless Nutrunner Tensor ITB-S
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15 days
Weight :
0.17kg

Inquiry now

Product Details
Model Specifications

Features

Integrated controller

TrueAngle- angle compensation with gyroscope

Wide range of tool models and accessories

Rundown booster

Optimized heat dissipation

Dual antennas

Benefits

Increased productivity- cable tool speeds

Improved quality of the joint

Quick installation and easy line rebalancing

Easy to use- no extra training needed

Continuous production and increased uptime

Technical Specifications
Imperial Metric	Dimension & weight
CS distance	14.9 mm
Height	88.5 mm
Length	426.6 mm
Output size	3/8"
Weight	3.5 lb
Width	74.5 mm
Certifications, standards & directives
Capability class	FK-MFU25
CCC certified	No
CMIIT ID	2020AJ15158
EAC certified	Yes
EU Legislation	\|\|2006/42/EC (MD)\|\|2011/65/EU (RoHS)\|\|2014/53/EU(RED)
	\|\|2015/863/EU (RoHS amendment)
EU Standard	EN 300 328 V2.2.2\|\|EN 301 489-1 V2.1.1\|\|EN 301 489-17
	V3.1.1\|\|EN 301 893 V2.1.1\|
	\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN
	61000-6-2:2005\|\|EN
	61000-6-3:2007+A1\|
	\|EN 61000-6-4:2007+A1\|
	\|EN 62841-1:2015\|
	\|EN 62841-2-2:2015
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.55 W/kg
FCC ID	XF6-M7DB7
IC ID	8407A-M7DB7
KC certified	No
Tolerance Class	TK15
UK Regulations	\|\|S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 301 489-1 V2.1.1\|\|EN 301
	55014-1:2017\|\|EN 55014-2:2015\|\|E
	61000-6-2:2005\|\|EN 61000-6-3:2007+A1\|\|EN
	61000-6-4:2007+A1\|\|EN 62841-1:2015\|\|EN
	62841-2-2:2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	7.4 ft-lb
Torque range min	2.2 ft-lb
Torque scatter	3s ≤ 5 %
Design & Functions
Model type	Straight
Output type	Square, Male
Shut-off system	Transducer
Tool family	ITB
Power
Motor power	1080 W
Motor voltage type	d.c.
Motor voltage	35 V
Battery information
Battery	Li-Io 18/36 V
Type of battery	1 Li-ion
Weight incl. Battery	4.63 lb
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Speed range max	1508 r/min
