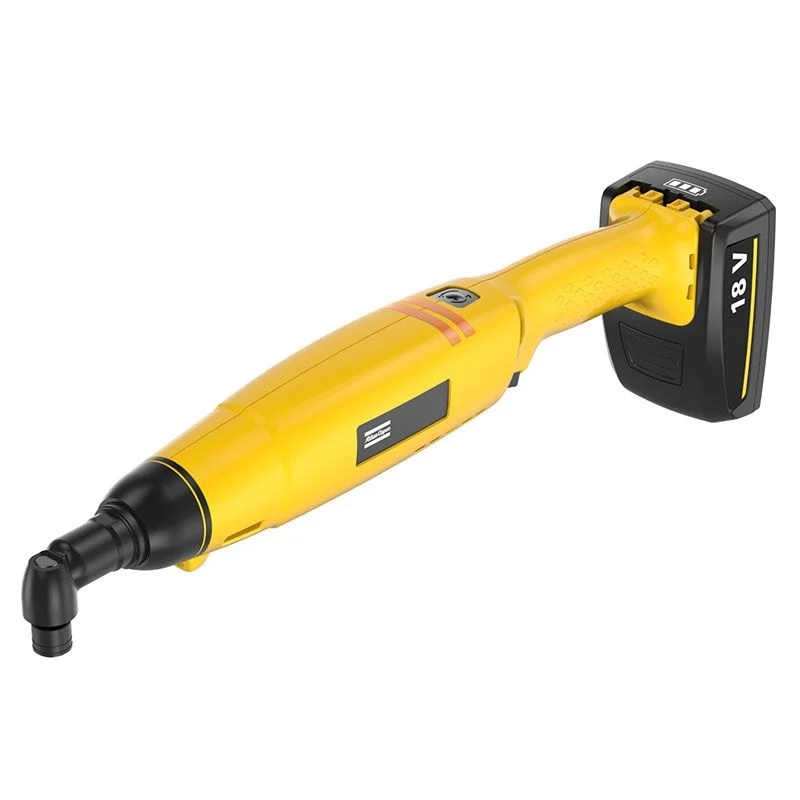

Angle Cordless Nutrunner BCV BCV BL-07-I06-QC

Angle Cordless Nutrunner BCV BCV BL-07-I06-QC

The Angle Cordless Nutrunner BCV is a lightweight and handy tool ideal for quality critical applications where flexibility is essential. Its compact size and Lithium-Ion batteries put it among the lightest battery nutrunners on the market. The nutrunner provides variable speed and plenty of power with range of torque level offering maximum operator comfort. The slim, well-balanced design and ergonomic angle make the BCV Cordless Nutrunner the kind of tool that you can work with all day.

  • Item No :

    Angle Cordless Nutrunner BCV BCV BL-07-I06-QC
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black And Yellow
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    1.81kg

The Angle Cordless Nutrunner BCV is a lightweight and handy tool ideal for quality critical applications where flexibility is essential. Its compact size and Lithium-Ion batteries put it among the lightest battery nutrunners on the market. The nutrunner provides variable speed and plenty of power with range of torque level offering maximum operator comfort. The slim, well-balanced design and ergonomic angle make the BCV Cordless Nutrunner the kind of tool that you can work with all day.



Features

High power-to-weight

Brushless motor and magnetic hall sensors

Unrivalled clutch design

Excellent torque repeatability

Low mean shift

Strong front light for best visibility

Speed setting functionality

Li-Ion battery technology



Benefits

No trip hazards from trailing cables

No product damage from cables or hoses

High performance and durability

Reduced operator fatigue

Technical Specifications
Imperial Metric                             Dimension & weight
Dimension & weight
CS distance 11 mm
Height 41 mm
Length                                       419 mm
Square drive 1/4 in
Output size                                    1/4"
Weight                                       2.6 lb
Certifications, standards & directives
EAC certified Yes
EU Standard EN 62841-1:2015, EN 62841-2-2:2014 +
AC:2015, EN 61000-6-2:2005, EN 61000-6-
3:2007 + A1:2011, EN 55014-1:2017, EN 55014-2:2015
EU Legislation 2006/42/EC (MD)||2011/65/EU
(RoHS)||2014/53/EU (RED)||2015/863/EU
(RoHS amendment)
ETL control number 3008099
ETL listed Yes
ETL text 6 - 62841-2-2
EU SAR value 0.55 W/kg
KC certified Yes
KC ID MSIP-REI-50A-BCPBL
UK Regulations S.I. 2008/1597||S.I. 2012/3032||S.I. 2016/1091
UK Standard EN 61000-6-2:2005 || EN 55014-1:2017 || EN
55014-2:2015|| EN 61000-6-3:2007 + A1:2011
||EN 62841-1:2015 ||EN 62841-2-2:2014 + AC:2015
WEEE 5 - Small equipment <50cm
Torque
Torque range max                                                         5.2 ft-lb
Torque range min                              1.8 ft-lb
Torque scatter 3s ≤ 10 %
Design & Functions
Communication type n/a
Model type                                                                      Angle
Output feature Bit holder
Output type                                                               Hexagon, Female
Shut-off system Clutch
Tool family                                      BCV
Power
Motor power                                                                   830 W
Motor voltage                                  18 V
Power 830 W
Battery information
Battery                                                                    Li-Io 18 V
Noise & vibrations
Sound pressure                             < 70 dB(A)
Sound standard                              ISO15744
Vibration standard                          ISO28927-2
Vibration value                             <2.5 m/s²
Speed
Speed range max                            880 r/min
Speed range min 400 r/min
