Atlas Copco

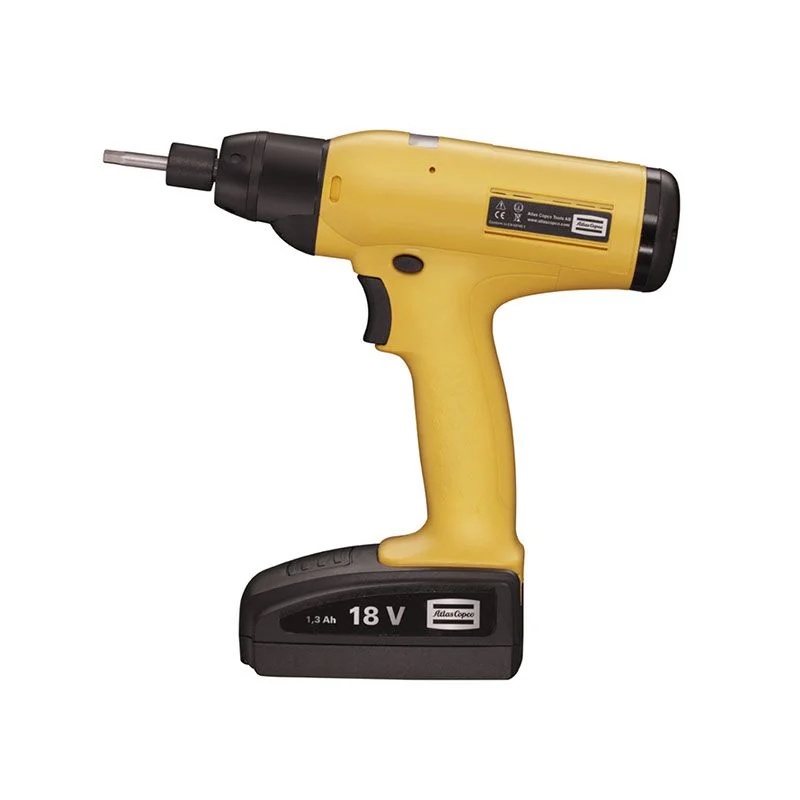

Pistol Cordless Screwdriver BCP BCP BL-2L-I06 8431127350

The Pistol Cordless Screwdriver BCP is ideal for quality critical applications where flexibility is essential. The slim, well-balanced design and ergonomic pistol grip on the BCP screwdriver make it a pleasure to hold. With no cables the BCP screwdriver is powered by light, high-capacity Lithium-Ion batteries that provide an impressive number of tightenings on one charge. BCP screwdrivers also offer variable speed and plenty of power with range of torques.

Item No :
Pistol Cordless Screwdriver BCP BCP BL-2L-I06
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black And Yellow
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.37kg

Inquiry now

Product Details
Model Specifications

Features

Ergonomic pistol-grip design

Brushless models offering variable speed

Unrivalled clutch design

Speed setting unit for regulating speed

Two strong front lights for best visibility

LED for OK/NOK and battery status Buzzer

Li-Ion battery technology

Benefits

Low noise level

Excellent torque repeatability

Battery can be mounted in two directions

Improved accessibility

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	188 mm
Length	200 mm
Square drive	1/4 in
Output size	1/4"
Weight	1.89 lb
Certifications, standards & directives
EAC certified	Yes
EU Standard	EN 55014:2017, EN 55014-2:2015, EN 62841-
	1:2015, EN 62841-2-2:2014 + AC:2015 EN
	61000-6-2:2005, EN 61000-6-3:2007 + A1:2011
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.55 W/kg
KC certified	Yes
KC ID	MSIP-REI-50A-BCPBL
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	EN 55014-2:2015 \|\| EN 61000-6-3:2007 +
	A1:2011\|\| EN 62841-2-2:2014 + AC:2015 EN
	61000-6-2:2005\|\|EN 55014:2017 \|\|EN 62841-1:2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	1.8 ft-lb
Torque range min	0.6 ft-lb
Torque scatter 3s	≤ 10 %
Design & Functions
Model type	Pistol
Output feature	Bit holder
Output type	Hexagon, Female
Shut-off system	Clutch
Tool family	BCP
Power
Motor power	290 W
Motor voltage	18 V
Battery information
Battery	Li-Io 14/18/36 V
Type of battery	1 Li-ion
Weight incl. Battery	4.6 lb
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	440 r/min
Speed range min	150 r/min
