Atlas Copco

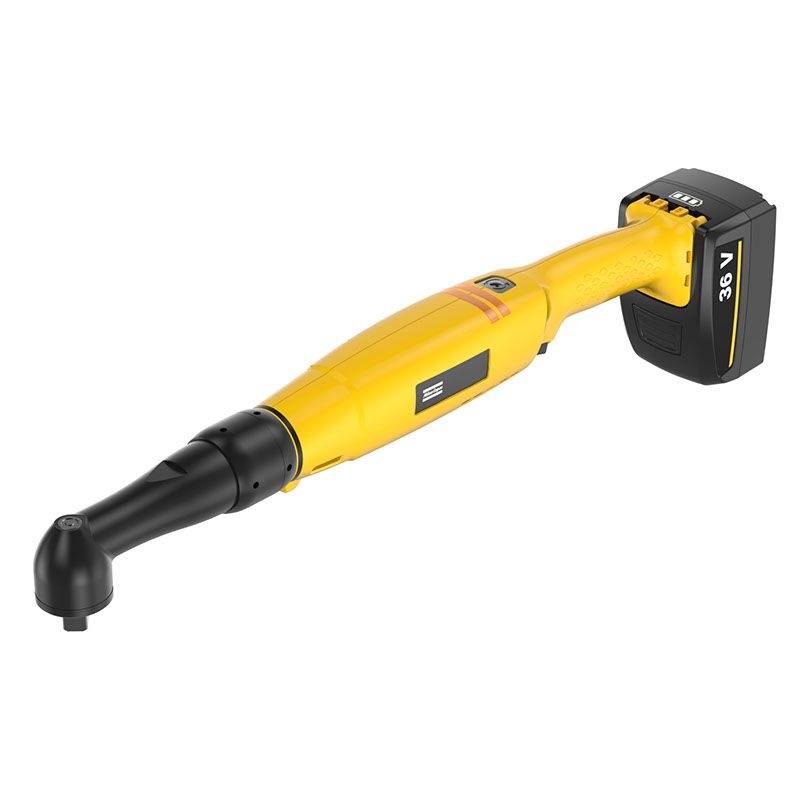

Angle Cordless Nutrunner BCV BCV BL-60-13

The Angle Cordless Nutrunner BCV is a lightweight and handy tool ideal for quality critical applications where flexibility is essential. Its compact size and Lithium-Ion batteries put it among the lightest battery nutrunners on the market. The nutrunner provides variable speed and plenty of power with range of torque level offering maximum operator comfort. The slim, well-balanced design and ergonomic angle make the BCV Cordless Nutrunner the kind of tool that you can work with all day.

Item No :
Angle Cordless Nutrunner BCV BCV BL-60-13
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.71kg

Inquiry now

Product Details
Model Specifications

Features

High power-to-weight

Brushless motor and magnetic hall sensors

Unrivalled clutch design

Excellent torque repeatability

Low mean shift

Strong front light for best visibility

Speed setting functionality

Li-Ion battery technology

Benefits

No trip hazards from trailing cables

No product damage from cables or hoses

High performance and durability

Reduced operator fatigue

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	20 mm
Height	62 mm
Length	530 mm
Square drive	1/2 in
Output size	1/2"
Weight	4.4 lb
Certifications, standards & directives
EAC certified	No
EU Standard	EN 62841-1:2015, EN 62841-2-2:2014 +
	AC:2015, EN 61000-6-2:2005, EN 61000-6-
	3:2007 + A1:2011, EN 55014-1:2017, EN 55014-2:2015
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU (RoHS)\|\|2014/53/EU (RED)
EU Legislation	\|\|2015/863/EU (RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
KC certified	No
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 61000-6-2:2005 \|\| EN 55014-1:2017 \|\| EN
	55014-2:2015\|\| EN 61000-6-3:2007 + A1:2011\|\|
	EN 62841-2-2:2014 + AC:2015 \|\|EN 62841-1:2015
WEEE	4 - Large equipment >50cm
Torque
Torque range max	44.3 ft-lb
Torque range min	18.46 ft-lb
Torque scatter 3s	≤ 10 %
Design & Functions
Communication type	n/a
Model type	Angle
Output type	Square, Male
Shut-off system	Clutch
Tool family	BCV
Power
Motor power	1750 W
Motor voltage	36 V
Power	1750 W
Battery information
Battery	Li-Io 36 V
Noise & vibrations
Sound pressure	<75 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Speed range max	160 r/min
Speed range min	40 r/min
