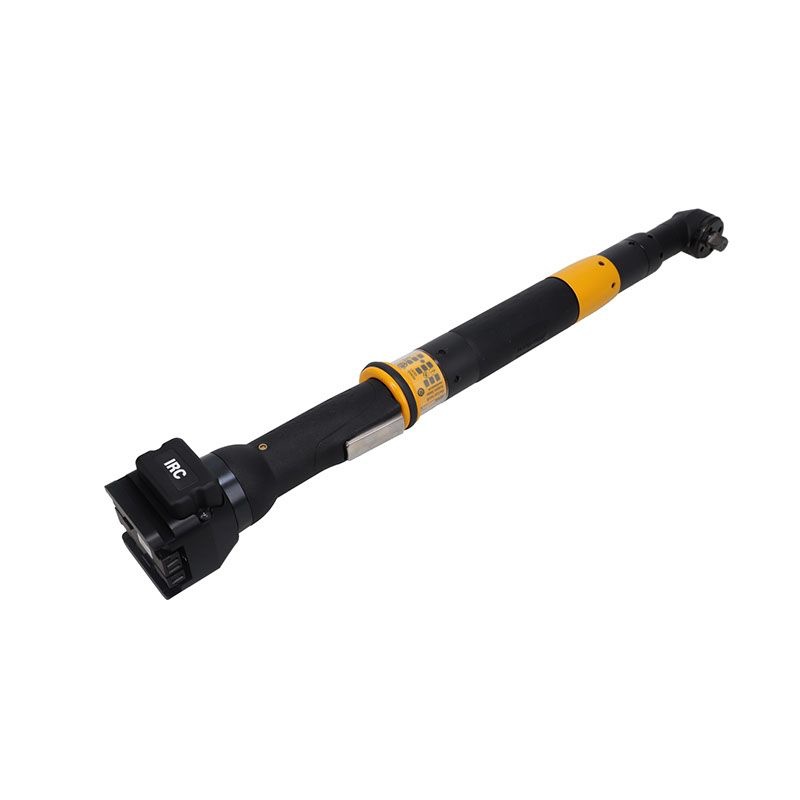

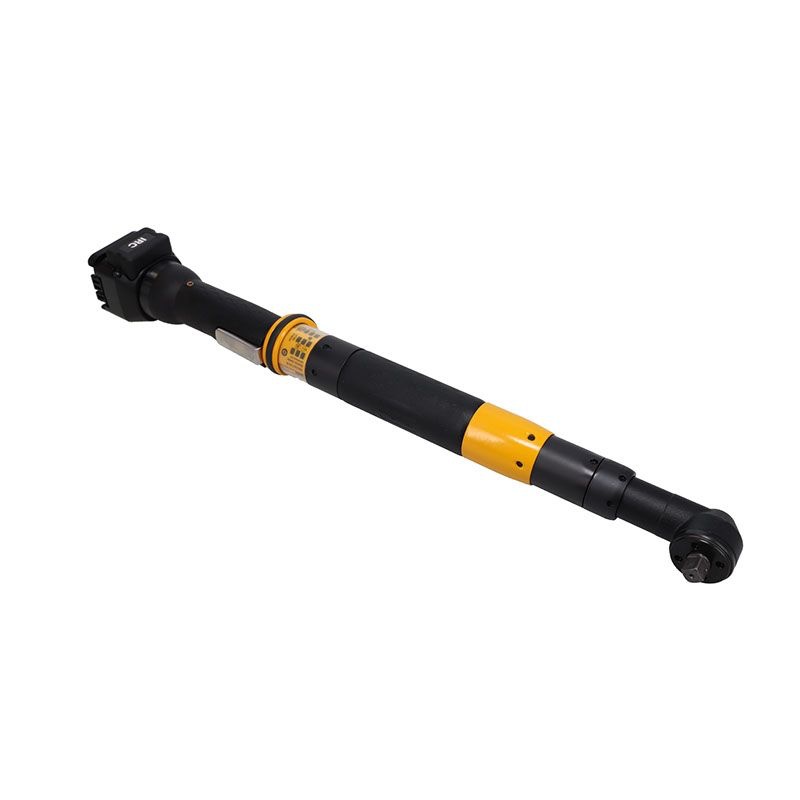

Angle Cordless Nutrunner Tensor SB ETV SB63-50-10

Angle Cordless Nutrunner Tensor SB ETV SB63-50-10

The Angle Cordless Nutrunner Tensor SB from Atlas Copco is a reliable partner in quality critical tightening with advanced level of error proofing. Suitable for a wide range of applications, the Tensor SB ensures superior joint quality, by providing torque and angle monitoring tightening with a variety of error proofing features. Increased quality control and error proofing give Tensor SB a unique position in the market.

Item No :
Angle Cordless Nutrunner Tensor SB ETV SB63-50-10
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.45kg

Inquiry now

Product Details
Model Specifications

Features

High power-to-weight ratio and ErgoGrip

Li-Ion battery

Torque transducer

Embedded industrial communication

Suitable for tough industrial environments

Benefits

Mobility and increased uptime

High quality in every joint

Reduced energy consumption

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	47.5 mm
CS distance	18 mm
Length	508 mm
Output size	3/8"
Weight	4.1 lb
Certifications, standards & directives
CMIIT ID	2016AJ1533
EAC certified	Yes
EU Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301
	489-1 V2.1.1\|\|EN 301 489-17 V3.1.1\|\|EN 301 893
	V2.1.1\|\|EN 50 566:2017\|\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN 61000-6-2:2019\|\|EN 61000-
	6-4:2007+A1:2011\|\|EN 62841-1:2015\|\|EN
	62841-2-2:2014 + AC:2017
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.54 W/kg
FCC ID	PVH0965
IC ID	5325A-0965
KC certified	No
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301
	489-1 V2.1.1\|\|EN 301 489-17 V3.1.1\|\|EN 301 893
	V2.1.1\|\|EN 50 566:2017\|\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN 61000-6-2:2019\|\|EN 61000-6-4:2007+
	A1:2011\|\|EN 62841-1:2015\|\|EN62841-2-2:2014 + AC:2017
WEEE	4 - Large equipment >50cm
Torque
Torque range max	37 ft-lb
Torque range min	10 ft-lb
Torque scatter 3s	≤ 7.5 %
Design & Functions
Communication type	Bluetooth/W-LAN
Model type	Angle
Output type	Square, Male
Shut-off system	Transducer
Tool family	SB
Power
Motor power	1500 W
Motor voltage	30 V
Battery information
Battery	Li-Io 30 V
Weight incl. Battery	6.15 lb
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	360 r/min
