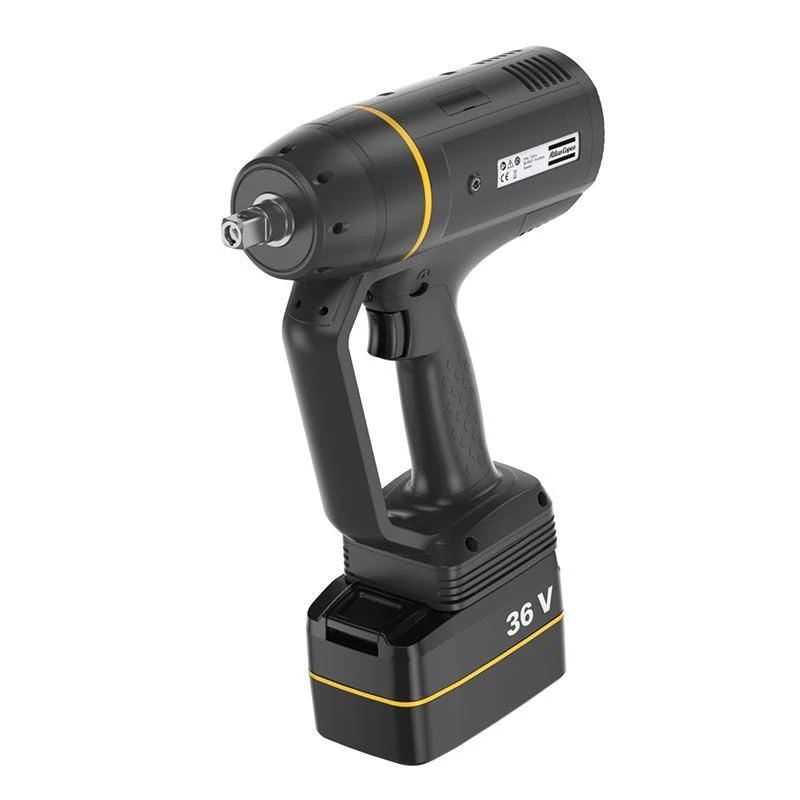

Pistol Cordless Pulse Tool TBP ETP TBP131-150-13

The Pistol Cordless Pulse Tool TBP is a true game changer. It's a battery powered, low reaction pulse tool with maximum flexibility and high torque. Thanks to the DuraPulse technology the tool uptime is increased and keeps it on the line, instead of in the tool crib. With TorqueBoost, active cooling, and advanced motor steering, the torque build-up is fast. High speed rundowns along with accurate measurements, make this the perfect tool to increase productivity. With the lowest vibration levels in the market, the TBP also reduces operator fatigue and injuries.

Item No :
Pistol Cordless Pulse Tool TBP ETP TBP131-150-13
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
3.51kg

Inquiry now

Product Details
Model Specifications

Features

Lowest vibration levels on the market

Lowest reaction force on the market

Highest torque on the market

Durable pulse unit

Bluetooth and Wi-Fi communication

Rapid Backup Unit (RBU) functionality

Benefits

Reduces operator injuries and fatigue

One-handed operation

Increased uptime

Excellent ergonomics

High use without overheated

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	255 mm
CS distance	38 mm
Length	227 mm
width	74.6 mm
Output size	1/2"
Weight	6.17 lb
Certifications, standards & directives
CMIIT ID	2018AJ0237
EAC certified	Yes
EU Standard	EN 18031-1:2024\|\|EN 300 328 V2.2.2\|\|EN 300
	440 V2.1.1\|\|EN 301 489-1 V2.1.1\|\|EN 301 489-17
	V3.1.1\|\|EN 301 893 V2.1.1\|\|EN 50566:2017\|\|EN
	55014-1:2017\|\|EN 55014-2:2015\|\|EN 61000-6-
	1:2007\|\|EN 61000-6-2:2005+AC:2005\|\|EN
	61000-6-3:2007+A1\|\|EN 61000-6-4:2007+A1:2011\|\|EN 628
	41-1:2015+AC 2015+A11:2022\|\|EN 62841-2-2:2014+AC:2015
EU Legislation	(EU) 2022/30\|\|2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.26 W/kg
FCC ID	PVH0965
IC ID	5325A-0965
KC certified	Yes
KC ID	R-R-50A-TBP
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301 489-1
	V2.1.1\|\|EN 301 489-17 V3.2.4\|\|EN 301 893 V2.1.1\|\|EN
	50566:2017\|\|EN 55014-1:2017\|\|EN 55014-2:2015\|\|EN
	61000-6-2:2005\|\|EN 61000-6-3:2007+A1\|\|EN 61000-6
	4:2007+A1\|\|EN 62841-1:2015\|\|EN 62841-2-2:2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	110 ft-lb
Torque range min	40.6 ft-lb
Torque scatter 3s	≤ 7.5 %
Design & Functions
Communication type	Bluetooth/W-LAN
Light	Yes
Model type	Pistol
Output type	Square, Male
SCIP	ddc51461-eb20-4be9-a4e0-431362f5643b
Shut-off system	Transducer
Tool family	TBP
Power
Motor power	1500 W
Motor voltage type	dc
Motor voltage	36 V
Battery information
Battery	Li-Io 36 V
Type of battery	1 Li-ion
Weight incl. Battery	7.94 lb
Noise & vibrations
Sound pressure	71 dB(A)
Sound standard	EN 62841-1 EN 62841-2-2
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	3600 r/min
Speed range min	1000 r/min
Capacity
Oil volume in full Pulse unit	32 ml
