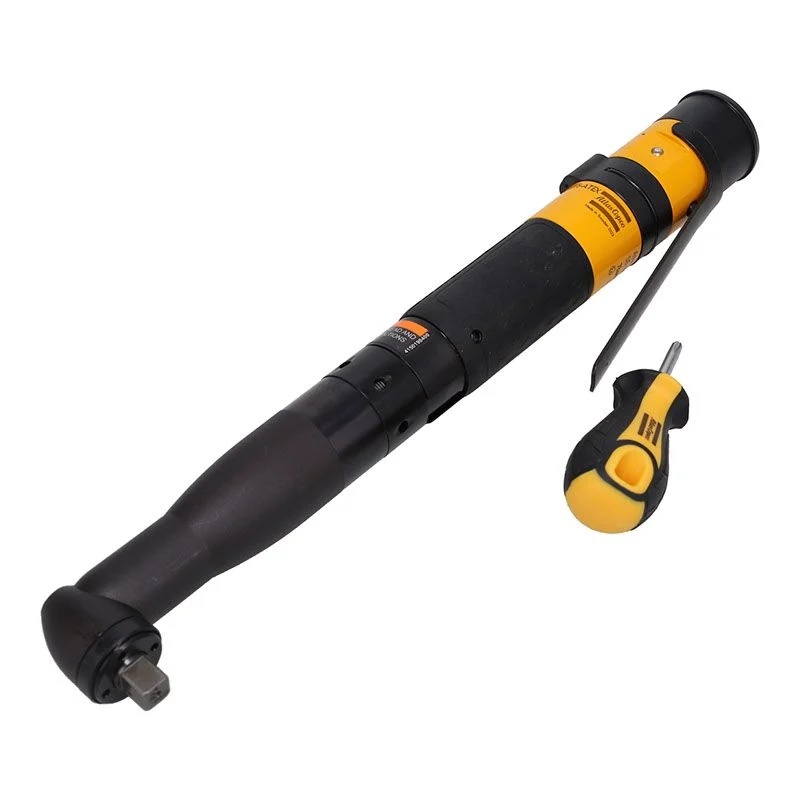

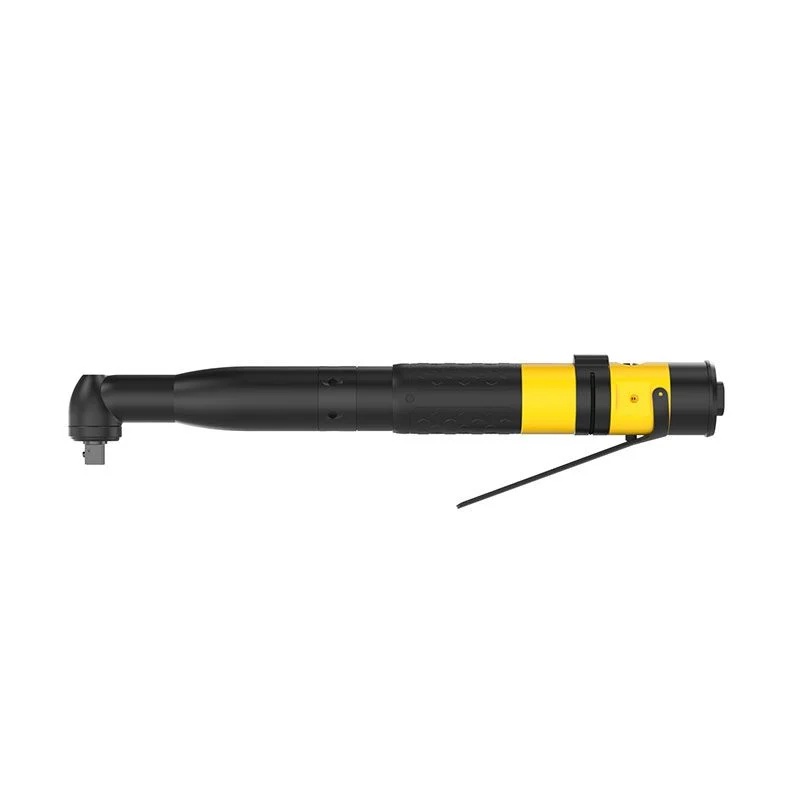

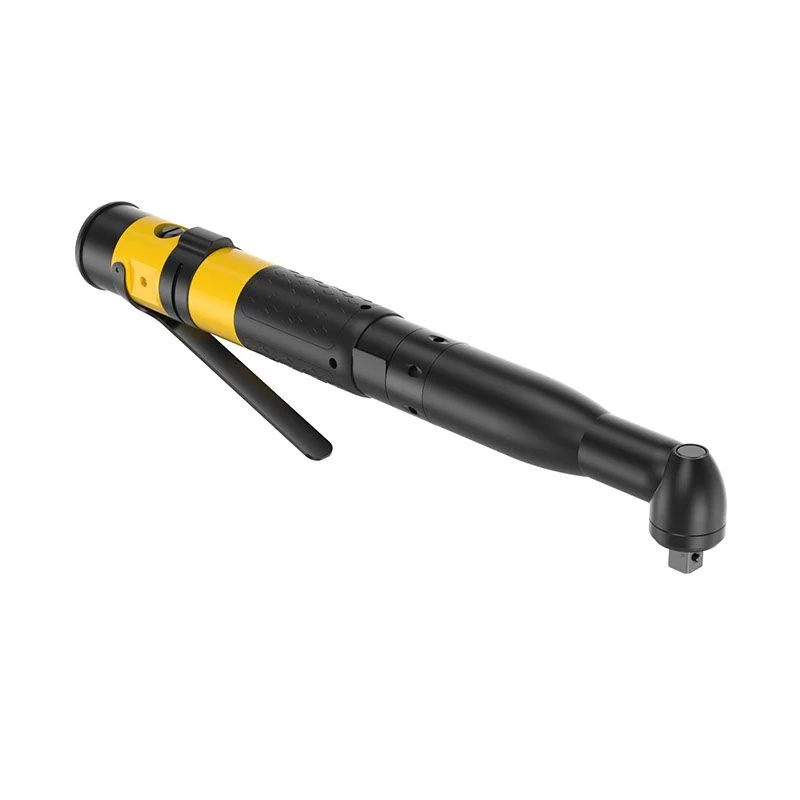

Angle Nutrunner LTV ATEX LTV19 R20-10-215-ATEX

Angle Nutrunner LTV ATEX LTV19 R20-10-215-ATEX 8431027972

The Angle Nutrunner LTV ATEX range allows you to work in Category 3 explosive environments. The nutrunner ensures an unmatched level of accuracy combined with excellent ergonomics. Its lightweight design and proven mechanical design makes this a dependable tool that is easy to use in the most demanding production environment.

Item No :
Angle Nutrunner LTV ATEX LTV19 R20-10-215-ATEX
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.78kg

Inquiry now

Product Details
Model Specifications

Features

Designed to be used with geared front parts

Low speed for tightening of special fasteners

Spiral cut angle gears

High torque accuracy

Benefits

Good accessibility in cramped spaces

Consistently high accuracy

Highest reliability

Possible to use in explosive environments

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	1/4 in
Angle head centre to side	14 mm
Angle head height	35 mm
Bolt size	M6 mm
Length	335 mm
Output size	3/8"
Recommended hose size	8 mm
Square drive	3/8 in
Weight	3.1 lb
Certifications, standards & directives
ATEX code	EX II 3GD IIB 135°C (T4)
ATEX	Yes
ATEX Max Temperature	135 °C
EAC certified	Yes
EU Standard	EN ISO 80079-36: 2016, EN ISO 11148-6:2012
EU Legislation	2006/42/EC
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 80079-36: 2016, BS EN ISO 11148-6:2012
Torque
Max torque at 6.3 bar soft joint	14.8 ft-lb
Min torque at 6.3 bar soft joint	4.4 ft-lb
Torque range max	15 ft-lb
Torque range min	4 ft-lb
Design & Functions
Model type	Angle
Output type	Square, Male
Reversible	Yes
SCIP	512325c7-97f9-4ab7-9ad4-7c27c003eb75
Shut-off	Yes
Power
Motor power	140 W
Motor voltage	35 V
Motor voltage type	3 d.c.
Noise & vibrations
Sound power	89 dB(A)
Sound pressure	78 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Free speed	215 r/min
Air information
Air consumption at free speed	15 cfm
Max working pressure	100 psi
