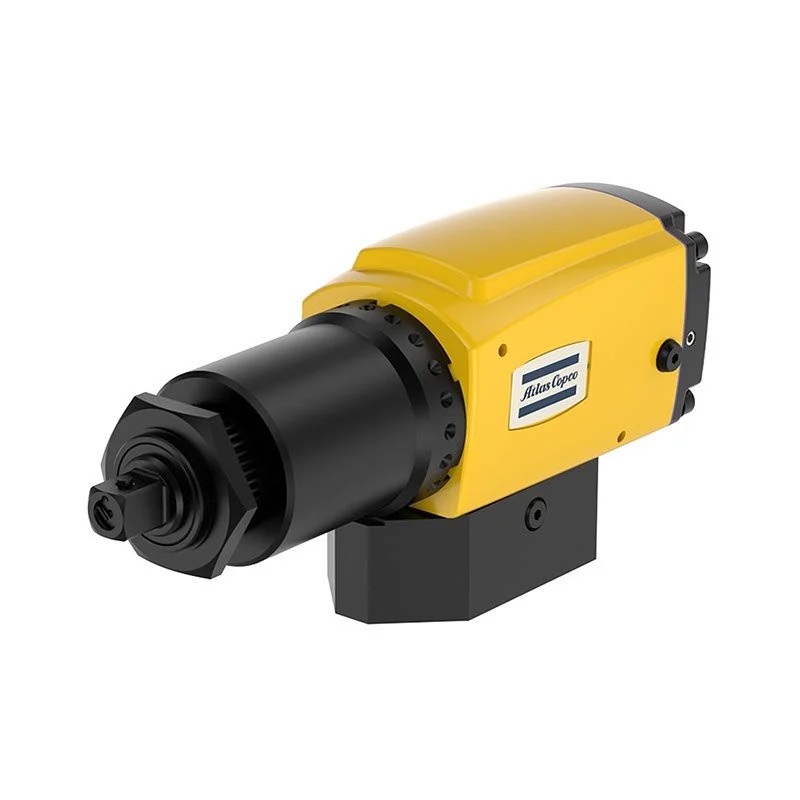

Straight High Torque Nutrunner LTD LTD61 H100-13-RE

The Straight High Torque Nutrunner LTD is based on the unique LTP range of twin motor concept which provides extremely fast run-down with good torque accuracy, even on soft joints. Equipped with a splined reaction bar connection it can also be used for fixed assembly of the nutrunner. The tool offers high productivity and unmatched torque accuracy as well as joint independence.

Item No :
Straight High Torque Nutrunner LTD LTD61 H100-13-RE
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
3.43kg

Inquiry now

Product Details
Model Specifications

Features

Twin motor concept

Extremely high torque output

Air signal outlets for completed operation

Shut-off valve activates at max torque

Benefits

Provides flexibility for each application

Fast rundown saves time

High productivity and unmatched accuracy

Torque independent of air pressure

Easy to use in fixtured applications

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	3/8 in
Bolt size	M12 mm
CS distance	29 mm
Length	223 mm
Output size	1/2"
Recommended hose size	10 mm
Square drive	1/2 in
Weight	6.6 lb
Certifications, standards & directives
EAC certified	Yes
EU Standard	ISO 11148-6
EU Legislation	2006/42/EC
KC certified	Yes
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	ISO 11148-6
WEEE	5 - Small equipment <50cm
Torque
Max torque at 6.3 bar	75 ft-lb
Min torque at 3 bar	35 ft-lb
Torque range at 6.3 bar max	75 ft-lb
Torque range at 6.3 bar min	40 ft-lb
Torque range max	74 ft-lb
Torque range min	26 ft-lb
Design & Functions
Model type	Straight
Output type	Square, Male
Reversible	No
SCIP	261b9caa-1fca-4e49-a582-9915b8a5c12d
Shut-off	Yes
Spline/Wave type	3
Power
Motor power	140 W
Motor voltage	35 V
Motor voltage type	3 d.c.
Noise & vibrations
Sound power	88 dB(A)
Sound pressure	77 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Free speed	1800 r/min
Air information
Air consumption at free speed	42 cfm
Max working pressure	100 psi
