LTV009 R07-6-L-WH

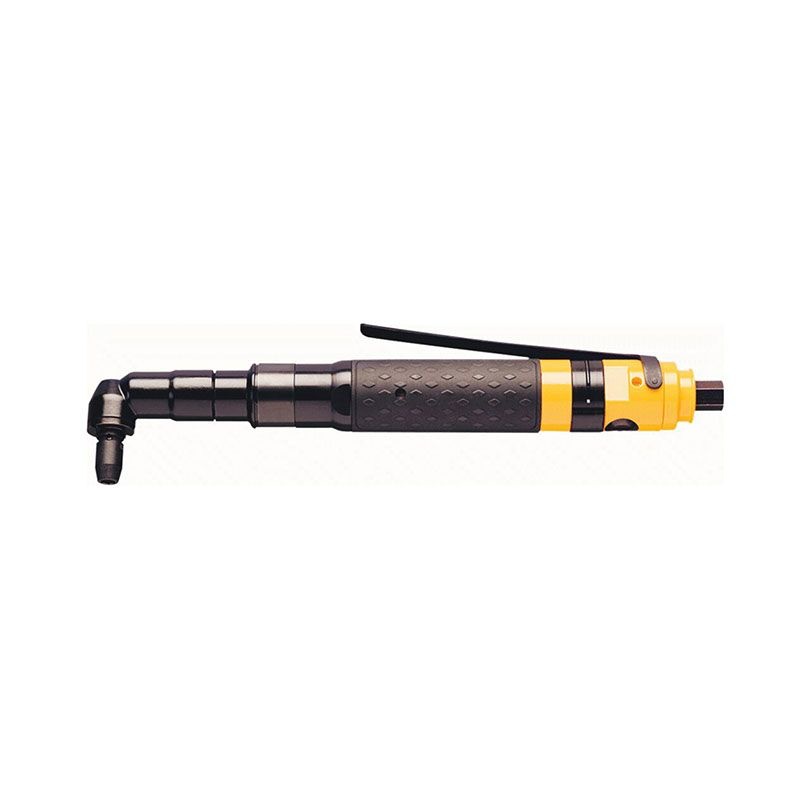

Angle Screwdriver LTV LTV009 R07-6-L-WH 8431027790

The Angle Screwdriver LTV is the smallest pneumatic angle screwdriver in our range that can reach in to all those cramped spaces where you can not fit a pistol grip. The tool features a spiral cut angle gear offering increased durability and accuracy due to less play. You can easily set the reverse by twisting the ring situated at the back end of the tool, just under the start lever. All LTV screwdriver models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!

  • Item No :

    LTV009 R07-6-L-WH
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    1.2kg

The Angle Screwdriver LTV is the smallest pneumatic angle screwdriver in our range that can reach in to all those cramped spaces where you can not fit a pistol grip. The tool features a spiral cut angle gear offering increased durability and accuracy due to less play. You can easily set the reverse by twisting the ring situated at the back end of the tool, just under the start lever. All LTV screwdriver models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!

Features

Slim design

Spiral cut gears

Fast and accurate shut-off clutch

RE reporting conversion kit available

Reversible

Benefits

Easy accessibility in tight spaces

High accuracy

Designed for durability

Technical Specifications
Imperial Metric                             Dimension & weight
Dimension & weight
Air inlet thread 1/8" in
Angle head centre to side 9 mm
Angle head height 25 mm
Length                                       287 mm
Outgoing spindle 1/4" in
Recommended hose size                           6 mm
Weight                                       1.5 lb
Certifications, standards & directives
EAC certified Yes
EU Standard ISO 11148-6
EU Legislation 2006/42/EC
UK Regulations S.I. 2008/1597
UK Standard ISO 11148-6
Torque
Torque range max                                                         2.95 ft-lb
Torque range min                              1.11 ft-lb
Design & Functions
Model type                                                                      Angle
SCIP                                                        512325c7-97f9-4ab7-9ad4-7c27c003eb75
Quick change interface IQ-7
Shut-off Yes
Noise & vibrations
Sound pressure                             75 dB(A)
Sound standard                              ISO15744
Sound uncertainty 3 dB(A)
Vibration standard                          ISO28927-2
Vibration value                             <2.5 m/s²
Speed
Free speed                           500 r/min
Air information
Air consumption at free speed 13 cfm
Max working pressure 102 psi
