Atlas Copco

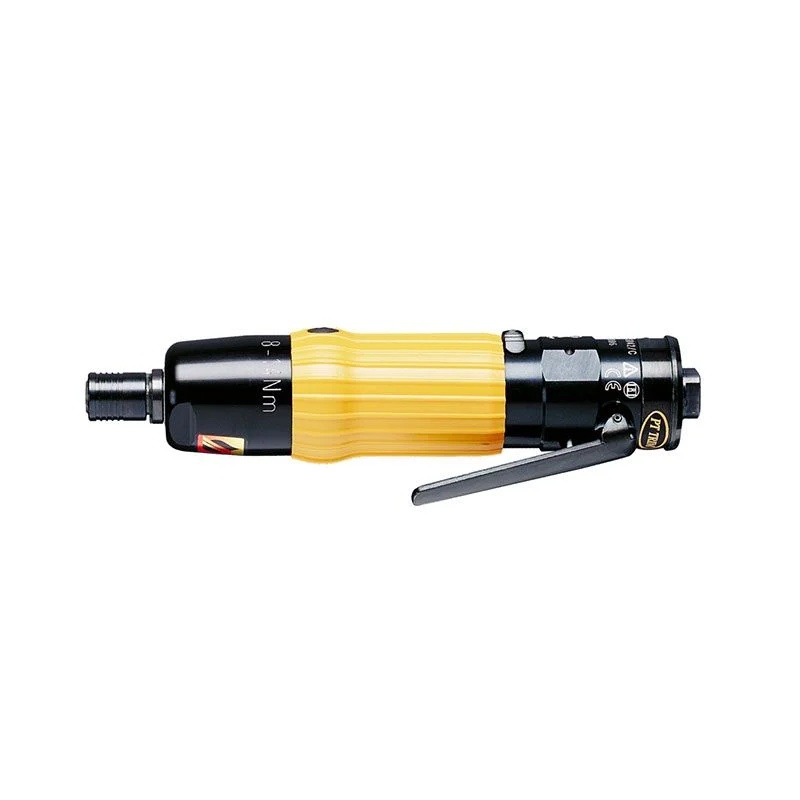

Straight ErgoPulse PTX EP6PTX18 SR42

The Straight ErgoPulse PTX shut-off tool is the ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached. All PTX models can also be used as lubrication free, just like other ErgoPulse tools and is available in StandardTrim and AutoTrim version.

Item No :
EP6PTX18 SR42
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.35kg

Inquiry now

Product Details
Model Specifications

Features

Consistent torque over time

Automatic two-stage trim valve

High power-to-weight ratio

No springs to wear out

High precision components

Benefits

High reliability and durability

One-handed operation

Light and well-balanced tool

Low noise level

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	1/4 in
Bolt size	M6 mm
CS distance	21 mm
Length	207 mm
Output size	1/4"
Recommended hose size	8 mm
Square drive	1/4 in
Weight	2 lb
Certifications, standards & directives
EAC certified	Yes
EU Standard	EN ISO 11148-6:2012
EU Legislation	2006/42/EC
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 11148-6:2012
Torque
Torque range max	13 ft-lb
Torque range min	7 ft-lb
Design & Functions
Model type	Straight
Output type	Hexagon, Female
SCIP	9e6972b2-2f4b-487b-bd1c-d051871d8321
Shut-off	Yes
Noise & vibrations
Sound pressure	81 dB(A)
Sound power	92 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty	1.2 m/s²
Vibration value	8.4 m/s²
Speed
Free speed	6800 r/min
Air information
Air consumption under load	15 cfm
Max working pressure	100 psi
Nominal working pressure	91 psi
