Ingersoll Rand

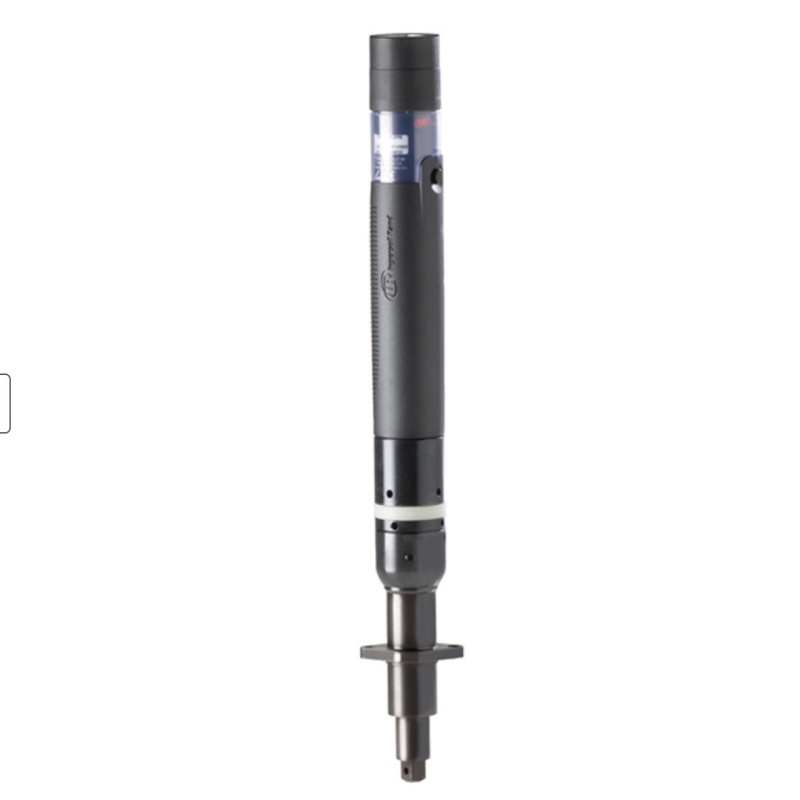

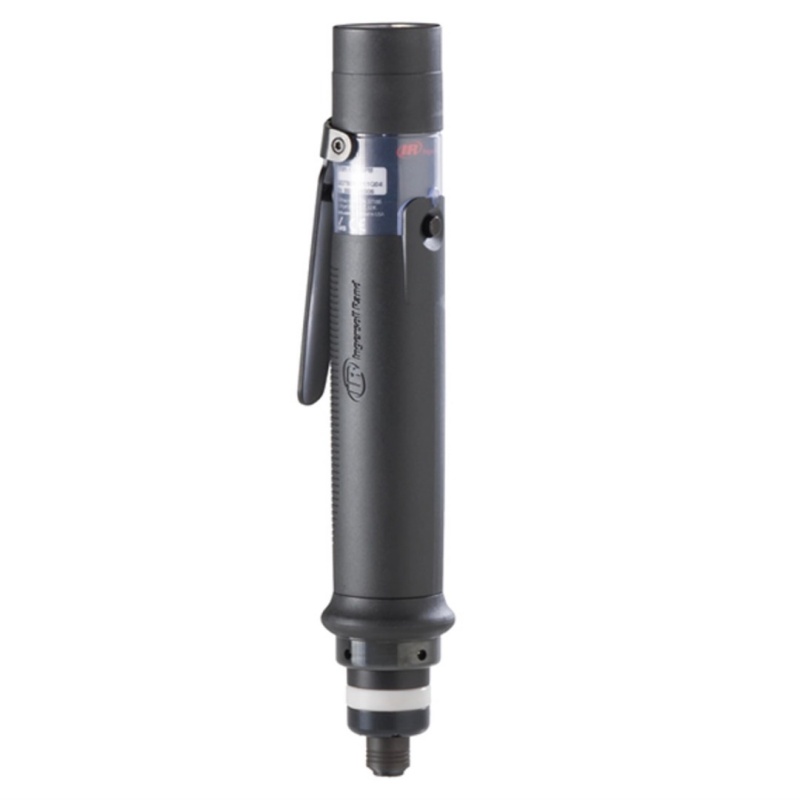

Variable Speeds QE2 Inline Series

With a torque range from 0.3 Nm to 10 Nm and variable speeds up to 3,000 rpm, the QE2 Inline Series is great for any tightening job when you need to get your work done quickly and efficiently.

Item No :
Variable Speeds QE2 Inline Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

With a torque range from 0.3 Nm to 10 Nm and variable speeds up to 3,000 rpm, the QE2 Inline Series is great for any tightening job when you need to get your work done quickly and efficiently.

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

User Efficiency:

Featuring TactAlert, preventative maintenance alarms, LED headlights and more, this series was created to maximize productivity and minimize distraction.

Versatile:

With a highly configurable platform, you can put together exactly the tool you need for each individual application.

Reliable:

Equipped with non-contacting switches, heavy duty gear train and a brushless DC motor, these tools provide exceptional reliability.

Safety:

ESD-Safe & RoHS compliant

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE2SL002F32S06	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Lever Start	Inline	3000	47	19	342	13.46456692913386	0.91	2.01	3/8 in. Square
QE2SL002P10Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Lever Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SL002P10S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Lever Start	Inline	3000	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SL003F32S06	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Lever Start	Inline	2450	47	19	342	13.46456692913386	0.91	2.01	3/8 in. Square
QE2SL003P10Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Lever Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SL003P10S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Lever Start	Inline	2450	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SL005F32S06	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Inline	1700	47	19	342	13.46456692913386	0.91	2.01	3/8 in. Square
QE2SL005P10Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SL005P10S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Lever Start	Inline	1700	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SL007F32S06	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Lever Start	Inline	1250	47	19	342	13.46456692913386	0.91	2.01	3/8 in. Square
QE2SL007P10Q04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Lever Start	Inline	1250	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SL007P10S04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Lever Start	Inline	1250	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SL010F32S06	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Inline	850	47	19	342	13.46456692913386	0.91	2.01	3/8 in. Square
QE2SL010P10Q04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Inline	850	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SL010P10S04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Lever Start	Inline	850	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SP002P11Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SP002P11S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Inline	3000	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SP003P11Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SP003P11S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Inline	2450	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SP005P11Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SP005P11S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Inline	1700	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SP007P11Q04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Inline	1250	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SP007P11S04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Inline	1250	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2SP010P11Q04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Inline	850	N/A	N/A	250	9.84251968503937	0.6	1.32	1/4 in. Quick Change
QE2SP010P11S04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Inline	850	N/A	N/A	242	9.527559055118111	0.6	1.32	1/4 in. Square
QE2TS002P11Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Inline	3000	N/A	N/A	250	9.84251968503937	0.57	1.25	1/4 in. Quick Change
QE2TS002P11S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Inline	3000	N/A	N/A	242	9.527559055118111	0.57	1.25	1/4 in. Square
QE2TS003P11Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Inline	2450	N/A	N/A	250	9.84251968503937	0.57	1.25	1/4 in. Quick Change
QE2TS003P11S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Inline	2450	N/A	N/A	242	9.527559055118111	0.57	1.25	1/4 in. Square
QE2TS005P11Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Inline	1700	N/A	N/A	250	9.84251968503937	0.57	1.25	1/4 in. Quick Change
QE2TS005P11S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Inline	1700	N/A	N/A	242	9.527559055118111	0.57	1.25	1/4 in. Square
