Ingersoll Rand

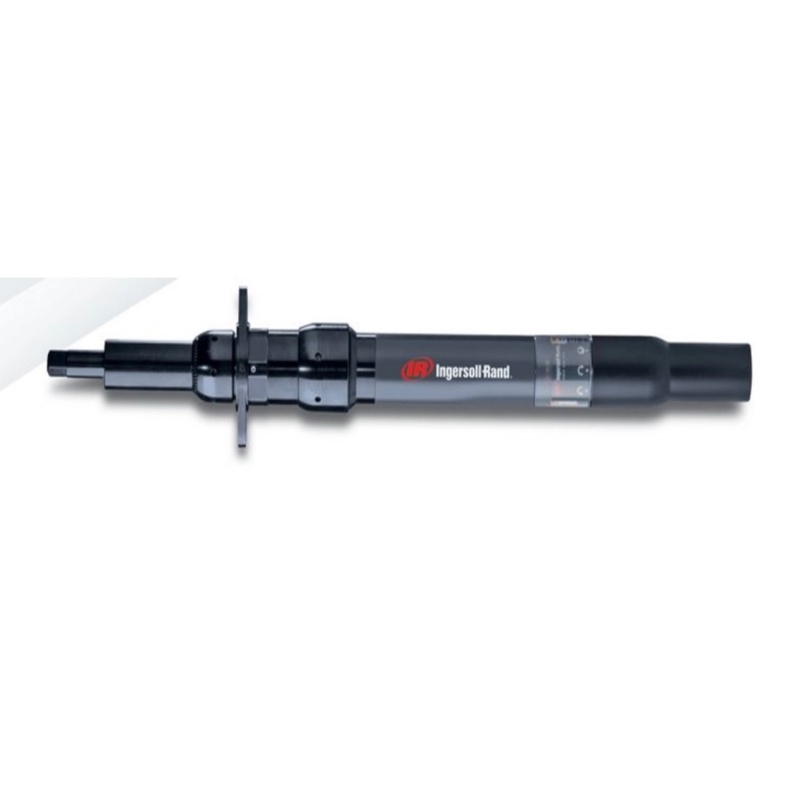

Compact QE4 Inline Series

Compact, lightweight and high-speed, the QE4 Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 2 Nm to 34 Nm. Available in Inline, Pistol and Angle Configuration and speeds upto 1820 RPM

Item No :
Compact QE4 Inline Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.2kg

Inquiry now

Product Details
Model Specifications

Features

Accuracy:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE4ST010R20Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	80.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Quick Change
QE4ST010R20S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	63.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST010R20S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	60.3	N/A	390	15.354330708661418	1.2	2.65	3/8 in. Square
QE4ST010R21Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	80.5	10	406	15.984251968503937	1.2	2.65	1/4 in. Quick Change
QE4ST010R21S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	63.5	10	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST010R21S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	63.5	10	385	15.157480314960631	1.2	2.65	3/8 in. Square
QE4ST010R21S08	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	55	10	381	15	1.2	2.65	1/2 in. Square
QE4ST010R41Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	131	23	457	17.99212598425197	1.3	2.87	1/4 in. Quick Change
QE4ST010R41S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	114	23	440	17.322834645669293	1.3	2.87	1/4 in. Square
QE4ST010R41S08	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	106	23	432	17.007874015748033	1.3	2.87	1/2 in. Square
QE4ST010R41S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Inline	1820	111	23	437	17.20472440944882	1.3	2.87	3/8 in. Square
QE4ST015R20Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	80.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Quick Change
QE4ST015R20S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	63.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST015R20S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	60.3	N/A	390	15.354330708661418	1.2	2.65	3/8 in. Square
QE4ST015R21Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	80.5	10	406	15.984251968503937	1.2	2.65	1/4 in. Quick Change
QE4ST015R21S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	63.5	10	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST015R21S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	63.5	10	385	15.157480314960631	1.2	2.65	3/8 in. Square
QE4ST015R21S08	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	55	10	381	15	1.2	2.65	1/2 in. Square
QE4ST015R41Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	131	23	457	17.99212598425197	1.3	2.87	1/4 in. Quick Change
QE4ST015R41S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	114	23	440	17.322834645669293	1.3	2.87	1/4 in. Square
QE4ST015R41S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	111	23	437	17.20472440944882	1.3	2.87	3/8 in. Square
QE4ST015R41S08	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Inline	1220	106	23	432	17.007874015748033	1.3	2.87	1/2 in. Square
QE4ST020R20Q04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	80.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Quick Change
QE4ST020R20S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	63.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST020R20S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	60.3	N/A	390	15.354330708661418	1.2	2.65	3/8 in. Square
QE4ST020R21Q04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	80.5	10	406	15.984251968503937	1.2	2.65	1/4 in. Quick Change
QE4ST020R21S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	63.5	10	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST020R21S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	63.5	10	385	15.157480314960631	1.2	2.65	3/8 in. Square
QE4ST020R21S08	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	55	10	381	15	1.2	2.65	1/2 in. Square
QE4ST020R41Q04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	131	23	457	17.99212598425197	1.3	2.87	1/4 in. Quick Change
QE4ST020R41S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	114	23	440	17.322834645669293	1.3	2.87	1/4 in. Square
QE4ST020R41S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	111	23	437	17.20472440944882	1.3	2.87	3/8 in. Square
QE4ST020R41S08	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	900	106	23	432	17.007874015748033	1.3	2.87	1/2 in. Square
QE4ST025R20Q04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	80.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Quick Change
QE4ST025R20S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	63.5	N/A	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST025R20S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	60.3	N/A	390	15.354330708661418	1.2	2.65	3/8 in. Square
QE4ST025R21Q04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	80.5	10	406	15.984251968503937	1.2	2.65	1/4 in. Quick Change
QE4ST025R21S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	63.5	10	390	15.354330708661418	1.2	2.65	1/4 in. Square
QE4ST025R21S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	63.5	10	385	15.157480314960631	1.2	2.65	3/8 in. Square
QE4ST025R21S08	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	55	10	381	15	1.2	2.65	1/2 in. Square
QE4ST025R41Q04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	131	23	457	17.99212598425197	1.3	2.87	1/4 in. Quick Change
QE4ST025R41S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	114	23	440	17.322834645669293	1.3	2.87	1/4 in. Square
QE4ST025R41S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	111	23	437	17.20472440944882	1.3	2.87	3/8 in. Square
QE4ST025R41S08	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Inline	710	106	23	432	17.007874015748033	1.3	2.87	1/2 in. Square
