Ingersoll Rand

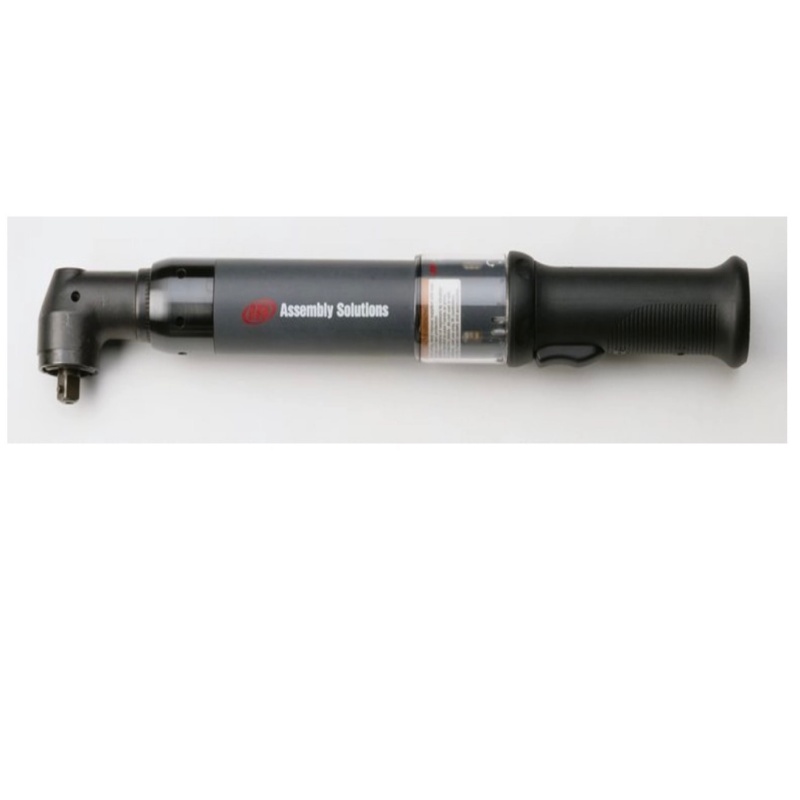

High-Speed QE4 Angle Series

The QE4 Angle wrenches are durable and high-speed. With a torque range of 0.3 Nm to 400 Nm and up to 1,200 RPM, this series has the accuracy and durability to meet any fastening requirements you have.

Item No :
High-Speed QE4 Angle Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.3kg

Inquiry now

Product Details
Model Specifications

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Productivity:

The QE4 Angle Series comes with a multitude of features, specially designed to enhance user experience without distracting from your task at hand, allowing you to continue your work without slowing down.

Highly Configurable Platform:

This series comes with the ability to alter output torque, body style, actuation and spindle type, so you can have the exact features you need for every application.

Reliable:

Built with a brushless DC motor, non-contacting switches and a heavy duty gear train, this series is meant to be as reliable as it is efficient. And with preventative maintenance alarms and high temperature motor protection, you won’t have to worry about your tool failing you in the middle of a job.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE4AT013PA2H04	2.6 - 10.4	23.0 - 92.1	1.9-7.7	13	Trigger Start	Angle	1200	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Hex Detent
QE4AT013PA2Q04	2.6 - 10.4	23.0 - 92.1	1.9-7.7	13	Trigger Start	Angle	1200	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Quick Change
QE4AT013PA2S04	2.6 - 10.4	23.0 - 92.1	1.9-7.7	13	Trigger Start	Angle	1200	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Square
QE4AT013PA2S06	2.6 - 10.4	23.0 - 92.1	1.9-7.7	13	Trigger Start	Angle	1200	N/A	N/A	383	15.078740157480317	1.3	2.87	3/8 in. Square
QE4AT020PA2H04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Angle	820	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Hex Detent
QE4AT020PA2Q04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Angle	820	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Quick Change
QE4AT020PA2S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Angle	820	N/A	N/A	383	15.078740157480317	1.3	2.87	1/4 in. Square
QE4AT020PA2S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Angle	820	N/A	N/A	383	15.078740157480317	1.3	2.87	3/8 in. Square
QE4AT027PA4S06	5.4 - 21.6	47.8 - 191.2	4.0 - 15.9	27	Trigger Start	Angle	600	N/A	N/A	387	15.236220472440946	1.3	2.87	3/8 in. Square
QE4AT027PA4S08	5.4 - 21.6	47.8 - 191.2	4.0 - 15.9	27	Trigger Start	Angle	600	N/A	N/A	387	15.236220472440946	1.3	2.87	1/2 in. Square
QE4AT034PA4S06	6.8 - 27.2	60.2 - 240.7	5.0 - 20.1	34	Trigger Start	Angle	470	N/A	N/A	387	15.236220472440946	1.3	2.87	3/8 in. Square
QE4AT034PA4S08	6.8 - 27.2	60.2 - 240.7	5.0 - 20.1	34	Trigger Start	Angle	470	N/A	N/A	387	15.236220472440946	1.3	2.87	1/2 in. Square
