Ingersoll Rand

QE4 Push-to-Start Series

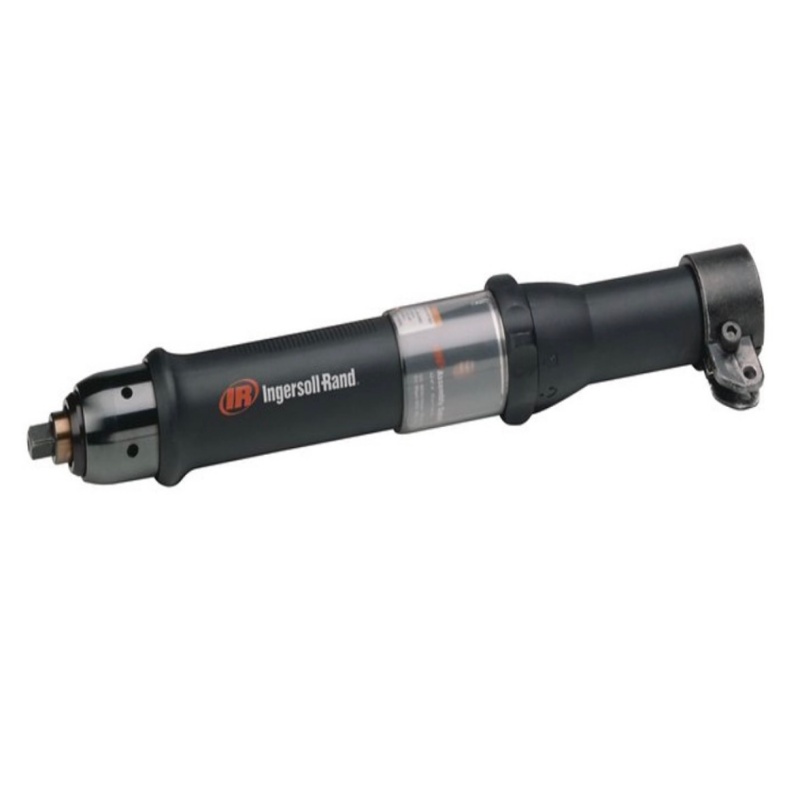

The QE4 Push-to-Start Series is a durable and high-speed tool. Features a clevis attachment for easy connectability to torque arms for optimal user experience and workspace visibility.

Item No :
QE4 Push-to-Start Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.2kg

Inquiry now

Product Details
Model Specifications

The QE4 Push-to-Start Series is a durable and high-speed tool. Features a clevis attachment for easy connectability to torque arms for optimal user experience and workspace visibility.

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Versatile:

Due to a highly configurable platform, you’re able to build and rebuild this tool to satisfy specific needs on a multitude of different jobs.

Made For You:

Not only is the QE4 Push-to-Start Series equipped with an ergonomic grip and clevis attachment for easy handling, it also comes with a number of features designed to alert the user without distracting from the task at hand.

Reliable:

Ingersoll Rand builds tools that are meant to last, and thanks to the heavy-duty gear train, non-contacting switches and brushless DC motor, the QE4 push-to-start is no different. It also comes with a preventative maintenance alarm, so you’ll always be aware when your tool needs a tune-up so it can continue to perform at its best.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE4TS010R11Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Inline	1820	N/A	N/A	362.9	14.28740157480315	1.2	2.65	1/4 in. Quick Change
QE4TS010R11S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Inline	1820	N/A	N/A	342.6	13.488188976377954	1.2	2.65	1/4 in. Square
QE4TS010R11S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Inline	1820	N/A	N/A	342.6	13.488188976377954	1.2	2.65	3/8 in. Square
QE4TS015R11S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Inline	1220	N/A	N/A	342.6	13.488188976377954	1.2	2.65	1/4 in. Square
QE4TS015R11S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Inline	1220	N/A	N/A	342.6	13.488188976377954	1.2	2.65	3/8 in. Square
QE4TS020R11S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger + Push-to-Start	Inline	900	N/A	N/A	342.6	13.488188976377954	1.2	2.65	1/4 in. Square
QE4TS020R11S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	20	Trigger + Push-to-Start	Inline	710	N/A	N/A	342.6	13.488188976377954	1.2	2.65	3/8 in. Square
