Ingersoll Rand

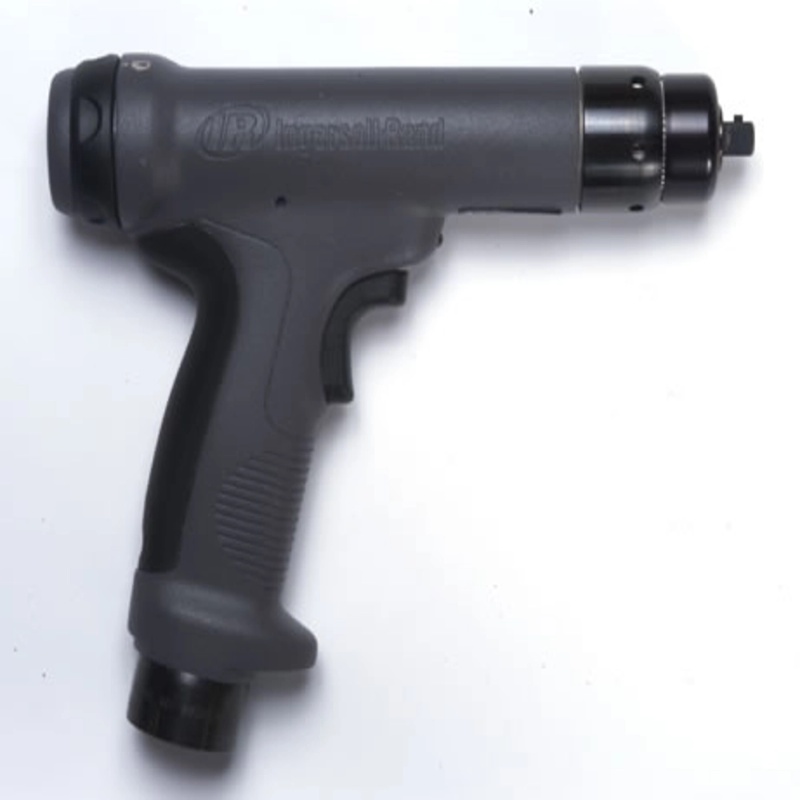

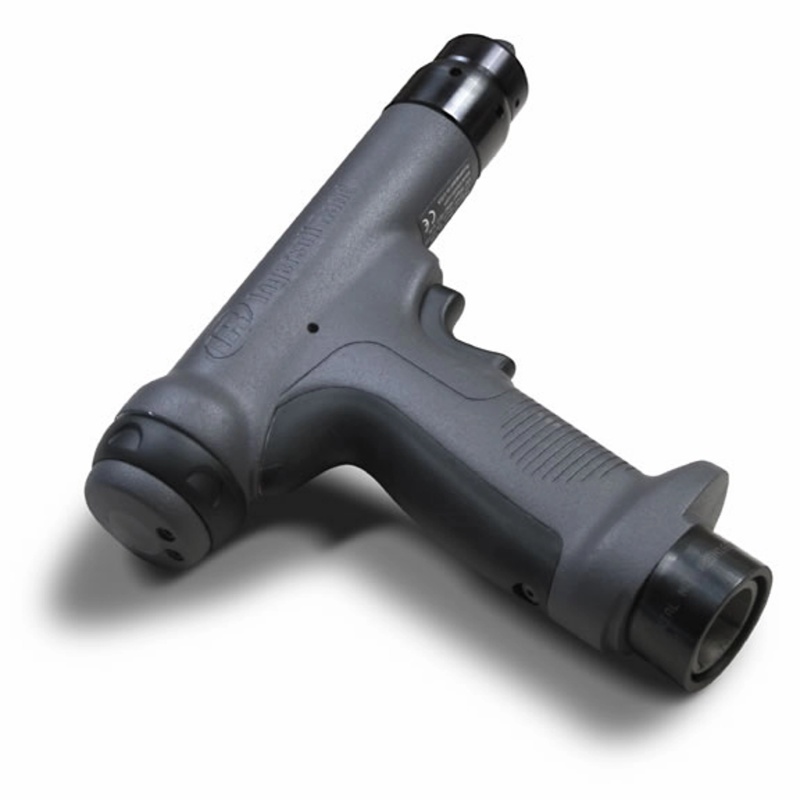

Compact QE4 Pistol Series

Compact, lightweight and high-speed, the QE4 Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 2 Nm to 34 Nm. Available in Inline, Pistol and Angle Configuration and speeds upto 1820 RPM.

Item No :
Compact QE4 Pistol Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.2kg

Inquiry now

Product Details
Model Specifications

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE4PP010P11Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PP010P11S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PP010P11S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PP015P11Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PP015P11S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PP015P11S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PP020P11S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger + Push-to-Start	Pistol	900	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PP020P11S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger + Push-to-Start	Pistol	900	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PP025P11S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger + Push-to-Start	Pistol	710	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PP025P11S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger + Push-to-Start	Pistol	710	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PS010P11Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PS010P11S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PS010P11S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger + Push-to-Start	Pistol	1820	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PS015P11Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PS015P11S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PS015P11S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger + Push-to-Start	Pistol	1220	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PS020P11S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger + Push-to-Start	Pistol	900	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PS020P11S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger + Push-to-Start	Pistol	900	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PS025P11S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger + Push-to-Start	Pistol	710	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PS025P11S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger + Push-to-Start	Pistol	710	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PT010P10Q04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Pistol	1820	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PT010P10S04	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Pistol	1820	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PT010P10S06	2.0 - 8.0	17.7 - 70.8	1.5-5.9	10	Trigger Start	Pistol	1820	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PT015P10Q04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Pistol	1220	N/A	N/A	243	9.566929133858268	1.2	2.65	1/4 in. Quick Change
QE4PT015P10S04	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Pistol	1220	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PT015P10S06	3.0 - 12.0	26.6 - 106.2	2.2-8.9	15	Trigger Start	Pistol	1220	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PT020P10S04	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Pistol	900	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PT020P10S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Pistol	900	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
QE4PT025P10S04	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	20	Trigger Start	Pistol	710	N/A	N/A	230.4	9.070866141732283	1.2	2.65	1/4 in. Square
QE4PT025P10S06	5.0 - 20.0	44.3 - 177.0	3.7 - 44.1	25	Trigger Start	Pistol	710	N/A	N/A	233.6	9.196850393700787	1.2	2.65	3/8 in. Square
