Compact QE6 Angle Series

Compact QE6 Angle Series

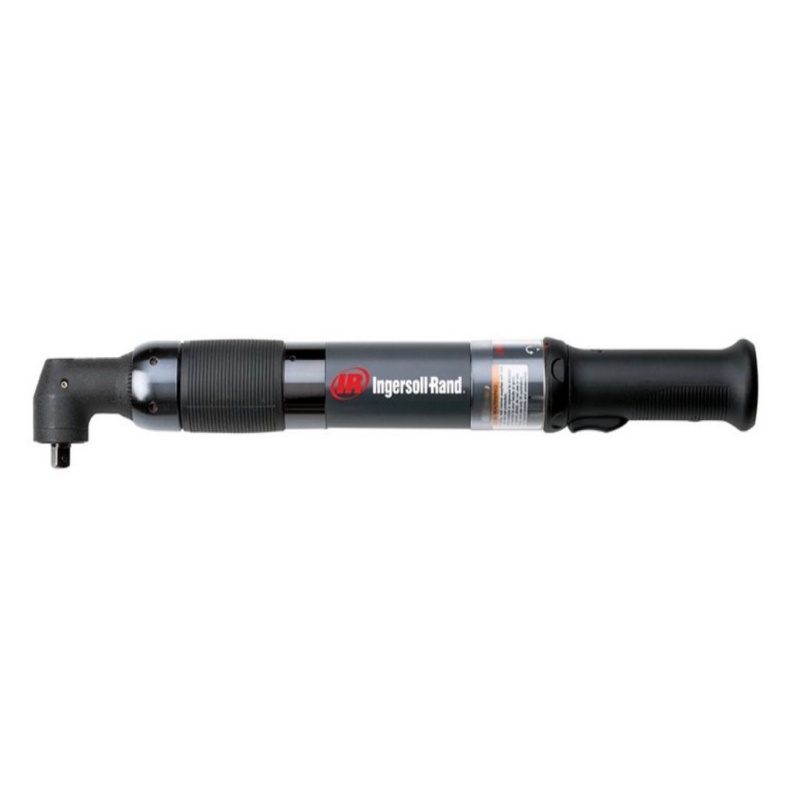

QE6 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE6 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 6 Nm to 80 Nm. Available in Inline and Angle Configuration.

  • Item No :

    Compact QE6 Angle Series
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    1.9kg

QE6 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE6 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 6 Nm to 80 Nm. Available in Inline and Angle Configuration.

Features

Accuracy:



The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:



Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:



The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure youll always know when its in need of a tune up.

Versatile:



With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.



Model Torque Range (Nm) Torque Range (in-lbs) Torque Range (ft-lbs) Max Torque (Nm) Actuation Configuration Free Speed (rpm) Spindle Length (mm) Float (mm) Overall Length (mm) Length (in) Weight (kg) Weight (lbs) Drive (size/style)
QE6AT030PA2S06 6.0 - 24.0 53.1 - 212.4 4.4 - 17.7 30 Trigger Start Angle 1230 N/A N/A 429.6 16.913385826771655 1.9 4.19 3/8 in. Square
QE6AT030PA4S06 6.0 - 24.0 53.1 - 212.4 4.4 - 17.7 30 Trigger Start Angle 1230 N/A N/A 429.6 16.913385826771655 1.9 4.19 3/8 in. Square
QE6AT030PA4S08 6.0 - 24.0 53.1 - 212.4 4.4 - 17.7 30 Trigger Start Angle 1230 N/A N/A 429.6 16.913385826771655 1.9 4.19 1/2 in. Square
QE6AT040PA4S06 8.0 - 32.0 70.8 - 283.2 5.9 - 23.6 40 Trigger Start Angle 910 N/A N/A 429.6 16.913385826771655 1.9 4.19 3/8 in. Square
QE6AT040PA4S08 8.0 - 32.0 70.8 - 283.2 5.9 - 23.6 40 Trigger Start Angle 910 N/A N/A 429.6 16.913385826771655 1.9 4.19 1/2 in. Square
QE6AT055PA5S08 11.0 - 44.0 97.4 - 389.4 8.1 - 32.5 55 Trigger Start Angle 650 N/A N/A 431.3 16.980314960629922 1.9 4.19 1/2 in. Square
QE6AT080PA5S08 16.0 - 64.0 141.6-566.4 11.8 - 47.2 80 Trigger Start Angle 440 N/A N/A 431.3 16.980314960629922 1.9 4.19 1/2 in. Square
