Ingersoll Rand

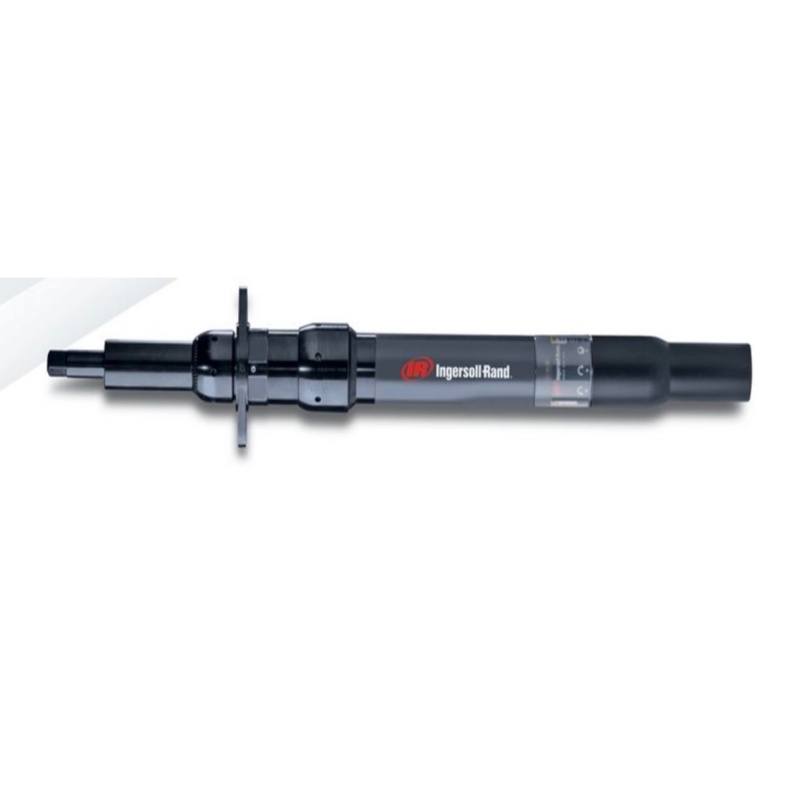

Compact QE6 Inline Series

Ergonomic, high-speed, and durable, the Q6 Inline Series is a tool that can handle tough jobs with ease.

Item No :
Compact QE6 Inline Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days

Inquiry now

Product Details
Model Specifications

Ergonomic, high-speed, and durable, the Q6 Inline Series is a tool that can handle tough jobs with ease.

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Highly Customizable:

The QE6 Inline allows you to choose output torque, body style, actuation and spindle type so you can create the right tool for every application.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE6ST020F41S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	107	20	501	19.7244094488189	2.1	4.63	3/8 in. Square
QE6ST020F41S08	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	102	20	501	19.7244094488189	2.1	4.63	1/2 in. Square
QE6ST020F61S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	154	39.5	544.2	21.425196850393704	2.2	4.85	3/8 in. Square
QE6ST020F61S08	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	153	39.5	544.2	21.425196850393704	2.2	4.85	1/2 in. Square
QE6ST020F81S06	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	205	39.5	594.2	23.393700787401578	2.3	5.07	3/8 in. Square
QE6ST020F81S08	4.0 - 16.0	35.4 - 141.61	3.0 - 11.8	20	Trigger Start	Inline	1840	204	39.5	594.2	23.393700787401578	2.3	5.07	1/2 in. Square
QE6ST028F41S06	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	107	20	501	19.7244094488189	2.1	4.63	3/8 in. Square
QE6ST028F41S08	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	102	20	501	19.7244094488189	2.1	4.63	1/2 in. Square
QE6ST028F61S06	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	154	39.5	544.2	21.425196850393704	2.2	4.85	3/8 in. Square
QE6ST028F61S08	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	153	39.5	544.2	21.425196850393704	2.2	4.85	1/2 in. Square
QE6ST028F81S06	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	205	39.5	594.2	23.393700787401578	2.3	5.07	3/8 in. Square
QE6ST028F81S08	5.6 - 22.4	49.6 - 198.3	4.1 - 16.5	28	Trigger Start	Inline	1360	204	39.5	594.2	23.393700787401578	2.3	5.07	1/2 in. Square
QE6ST033F41S06	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	107	20	501	19.7244094488189	2.1	4.63	3/8 in. Square
QE6ST033F41S08	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	102	20	501	19.7244094488189	2.1	4.63	1/2 in. Square
QE6ST033F61S06	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	154	39.5	544.2	21.425196850393704	2.2	4.85	3/8 in. Square
QE6ST033F61S08	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	153	39.5	544.2	21.425196850393704	2.2	4.85	1/2 in. Square
QE6ST033F81S06	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	205	39.5	594.2	23.393700787401578	2.3	5.07	3/8 in. Square
QE6ST033F81S08	6.6 - 26.4	58.4 - 233.7	4.9 - 19.5	33	Trigger Start	Inline	1130	204	39.5	594.2	23.393700787401578	2.3	5.07	1/2 in. Square
QE6ST050F41S08	10.0 - 40.0	88.5 - 354.0	7.4 - 29.5	50	Trigger Start	Inline	760	102	20	501	19.7244094488189	2.1	4.63	1/2 in. Square
QE6ST050F61S08	10.0 - 50.0	88.5 - 442.5	7.4 - 36.75	50	Trigger Start	Inline	760	153	39.5	544.2	21.425196850393704	2.2	4.85	1/2 in. Square
QE6ST050F81S08	10.0 - 40.0	88.5 - 354.0	7.4 - 29.5	50	Trigger Start	Inline	760	204	39.5	594.2	23.393700787401578	2.3	5.07	1/2 in. Square
