Ingersoll Rand

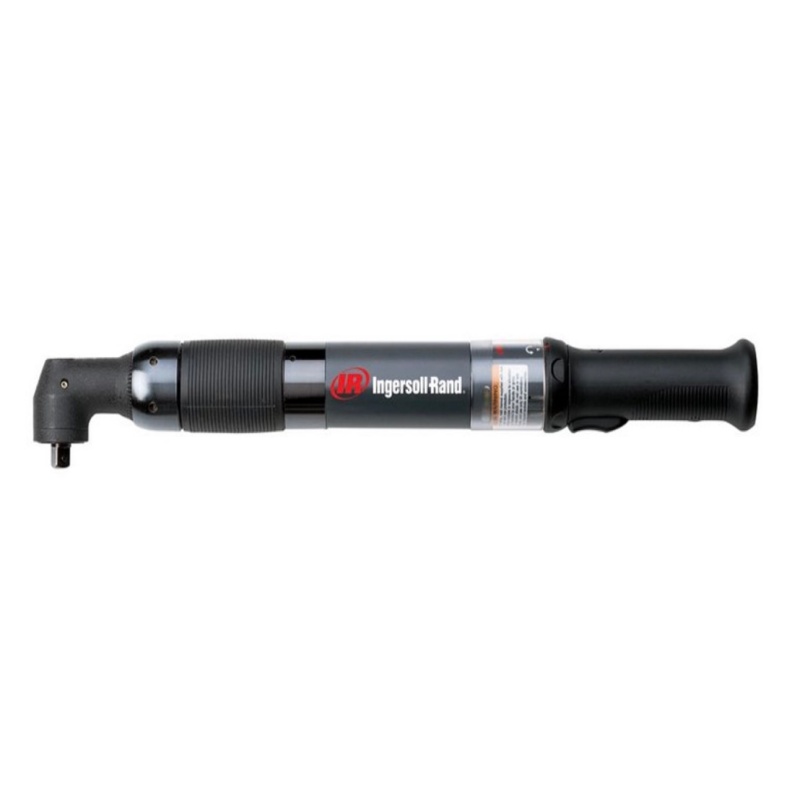

Compact QE8 Angle Series

QE8 Tools are Ergonomic, lightweight and high-speed, designed for Tough Applications. The QE8 Series provide superior accuracy and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 13 Nm to 400 Nm. Available in Inline and Angle Configuration.

Item No :
Compact QE8 Angle Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.9kg

Inquiry now

Product Details
Model Specifications

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control and Angle strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Series allows you to work efficiently with minimum distraction.

Reliable:

The brushless DC motor, non-contacting switches and heavy-duty gear train make this tool reliable, and the preventative maintenance alarms make sure you’ll always know when it’s in need of a tune up.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE8AT065PA5S08	13.0 - 52.0	112.1-460.2	9.6 - 38.4	65	Trigger Start	Angle	1200	N/A	N/A	515	20.275590551181104	2.9	6.39	1/2 in. Square
QE8AT065PA6S08	13.0 - 52.0	112.1-460.2	9.6 - 38.4	65	Trigger Start	Angle	1200	N/A	N/A	520	20.472440944881892	2.9	6.39	1/2 in. Square
QE8AT070PA5S08	14.0 - 56.0	123.9-495.6	10.3 - 41.3	70	Trigger Start	Angle	1100	N/A	N/A	515	20.275590551181104	2.9	6.39	1/2 in. Square
QE8AT070PA6S08	14.0 - 56.0	123.9-495.6	10.3 - 41.3	70	Trigger Start	Angle	1100	N/A	N/A	520	20.472440944881892	2.9	6.39	1/2 in. Square
QE8AT090PA5S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Trigger Start	Angle	850	N/A	N/A	515	20.275590551181104	2.9	6.39	1/2 in. Square
QE8AT090PA6S08	18.0 - 72.0	159.3-637.3	13.3 - 53.1	90	Trigger Start	Angle	850	N/A	N/A	520	20.472440944881892	2.9	6.39	1/2 in. Square
QE8AT115PA6S08	23.0 - 92.0	203.6-814.3	17.0 - 67.9	115	Trigger Start	Angle	660	N/A	N/A	515	20.275590551181104	2.9	6.39	1/2 in. Square
QE8AT150PA6S08	30.0 - 120.0	265.5-1062.1	22.1 - 88.5	150	Trigger Start	Angle	510	N/A	N/A	520	20.472440944881892	2.9	6.39	1/2 in. Square
QE8AT225PA7S12	45.0 - 180.0	398.3-1593.1	33.2 - 132.8	225	Trigger Start	Angle	310	N/A	N/A	560.5	22.06692913385827	4.1	9.04	3/4 in. Square
QE8AT400FA8S12	80.0 - 320.0	708.1-2832.2	59.0 - 236.0	400	Trigger Start	Angle	170	N/A	N/A	637	25.078740157480315	6	13.23	3/4 in. Square
