Ingersoll Rand

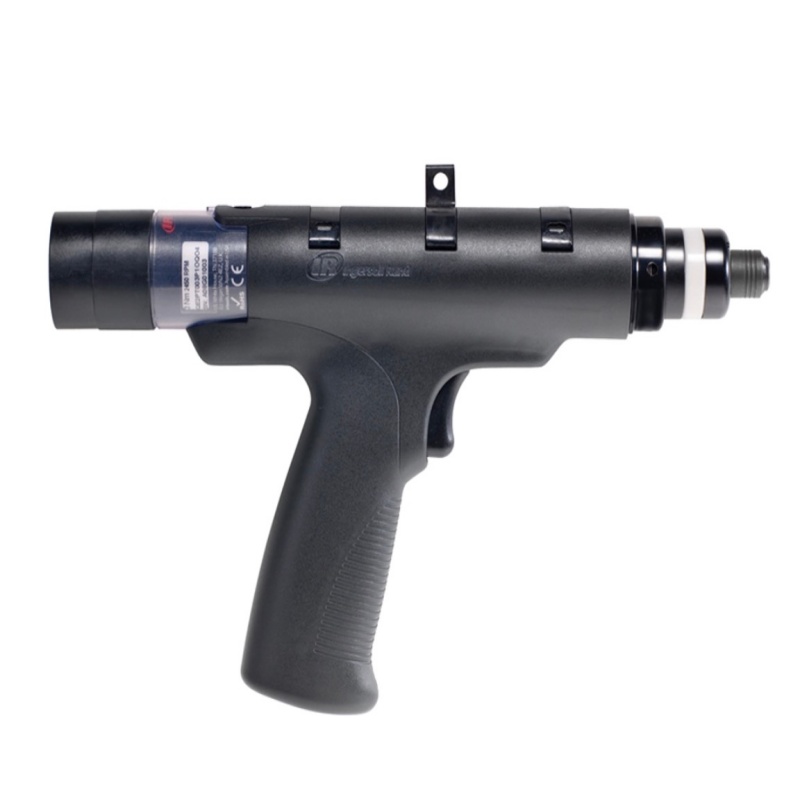

Excellent QE2 Pistol Series

With a torque range of 0.3 Nm to 10 Nm and speeds up to 3,000 rpm, the QE2 Pistol is an excellent tool for all of your fastening needs.

Item No :
Excellent QE2 Pistol Series
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
0.66kg

Inquiry now

Product Details
Model Specifications

With a torque range of 0.3 Nm to 10 Nm and speeds up to 3,000 rpm, the QE2 Pistol is an excellent tool for all of your fastening needs.

Features

Accurate:

The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.

Efficient:

Built with a variety of features to enhance user operation such as TactAlert, LED headlights and indicator light options, the QE2 Pistol allows you to work efficiently with minimum distraction.

Reliable:

Thanks to non-contacting switches, a heavy duty gear train and a brushless DC motor, this pistol is as reliable as it is efficient.

Versatile:

With this tool you can choose torque output, body style, actuation and spindle type, so you can customize your tool for any application.

Safety:

ESD-Safe & RoHS compliant

Model	Torque Range (Nm)	Torque Range (in-lbs)	Torque Range (ft-lbs)	Max Torque (Nm)	Actuation	Configuration	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Overall Length (mm)	Length (in)	Weight (kg)	Weight (lbs)	Drive (size/style)
QE2PP002P11Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Pistol	3000	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PP002P11S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Pistol	3000	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PP003P11Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Pistol	2450	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PP003P11S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Pistol	2450	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PP005P11Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Pistol	1700	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PP005P11S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Pistol	1700	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PP007P11Q04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Pistol	1250	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PP007P11S04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Pistol	1250	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PP010P11Q04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Pistol	850	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PP010P11S04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Pistol	850	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PS002P11Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Pistol	3000	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PS002P11S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger + Push-to-Start	Pistol	3000	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PS003P11Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Pistol	2450	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PS003P11S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger + Push-to-Start	Pistol	2450	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PS005P11Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Pistol	1700	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PS005P11S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger + Push-to-Start	Pistol	1700	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PS007P11Q04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Pistol	1250	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PS007P11S04	1.3 - 6.5	11.5 - 57.5	1.0-4.8	7	Trigger + Push-to-Start	Pistol	1250	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PS010P11Q04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Pistol	850	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PS010P11S04	2.0 - 10.0	17.7 - 88.5	1.5-7.4	10	Trigger + Push-to-Start	Pistol	850	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PT002P10Q04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger Start	Pistol	3000	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PT002P10S04	0.3 - 1.5	2.7 - 13.3	0.2-1.1	2	Trigger Start	Pistol	3000	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PT003P10Q04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger Start	Pistol	2450	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PT003P10S04	0.6 - 3.0	5.3 - 26.6	0.4-2.2	3	Trigger Start	Pistol	2450	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
QE2PT005P10Q04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger Start	Pistol	1700	N/A	N/A	250	9.84251968503937	0.66	1.46	1/4 in. Quick Change
QE2PT005P10S04	1.0 - 5.0	8.9 - 44.3	0.7-3.7	5	Trigger Start	Pistol	1700	N/A	N/A	242	9.527559055118111	0.66	1.46	1/4 in. Square
