Atlas Copco

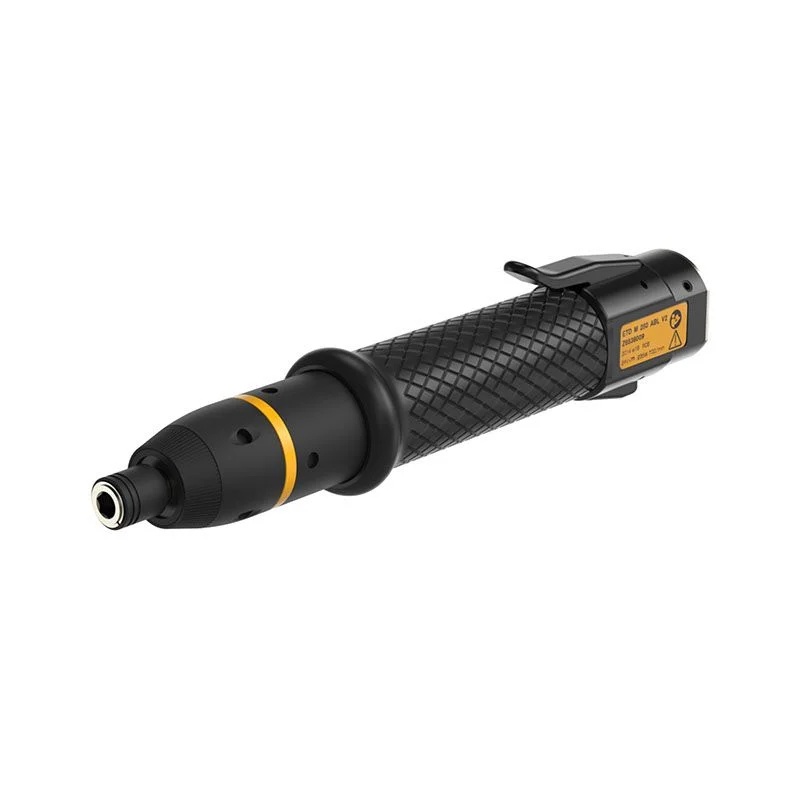

Handheld Current Controlled Screwdriver ETD M ETD M 120 ABL V2 8432081582

The MicroTorque current controlled handheld screwdriver is advanced tightening solution for any low torque application. Extremely ergonomic, very compact and full of functionalities, it is the right tool to boost productivity and quality, resulting in high efficiency and cost reduction. The MicroTorque system is flexible and provides clear operator feedback. All MicroTorque screwdrivers are ESD (electrostatic discharge) and clean room approved to guarantee quality no matter the requirement of the surroundings.

Item No :
Handheld Current Controlled Screwdriver ETD M ETD M 120 ABL V2
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.1kg

Inquiry now

Product Details
Model Specifications

Features

High accuracy current controlled tools

Torque and angle control and monitoring

Advanced tightening strategies

Ergonomic and lightweight design

Benefits

Secure product quality

Direct error detection and error proofing

Improved quality

Improved process control and setup time

Industry 4.0 revolution-ready

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Length	240 mm
Overall width	43 mm
Weight	1.43 lb
Certifications, standards & directives
CCC certified	No
CQC China	No
EAC certified	Yes
EU Standard	EN 55014-1:2017 EN55014-2:2015 EN 61000-3-
	2:2014 EN 61000-3-3:2013 EN 61000-6-2:2005
	EN 62841-1 EN 62841-2-2
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU(RoHS)\|\|
EU Legislation	2014/30/EU (EMC)\|\|2015/863/EU (RoHS amendment)
KC certified	Yes
KC ID	MSIP-REI-50A-MICROTORQUE
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	EN 55014-1:2017 EN55014-2:2015 EN 61000-3-
	2:2014 EN 61000-3-3:2013 EN 61000-6-2:2005
	EN 62841-1 EN 62841-2-2
WEEE	5 - Small equipment <50cm
Torque
Torque range max	10.6 in-lb
Torque range min	2.7 in-lb
Torque scatter 3s	≤ 7.5 %
Design & Functions
Model type	Straight
Bit drive	1/4
Shut-off system	Current control
SCIP	fccef4aa-a3a2-44e5-8fc1-59459132fa8c
Power
Motor power	150 W
Motor voltage type	d.c.
Motor voltage	24 V
Battery information
Battery	Li-Io 36 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	< 2.5 m/s²
Speed
Free speed	900 r/min
Speed range max	900 r/min
Safety
Ingress protection rating	IP20
Temperature
Operating temperature max	104 F
Operating temperature min	41 F
Storage temperature max	140 F
Storage temperature min	-13F
