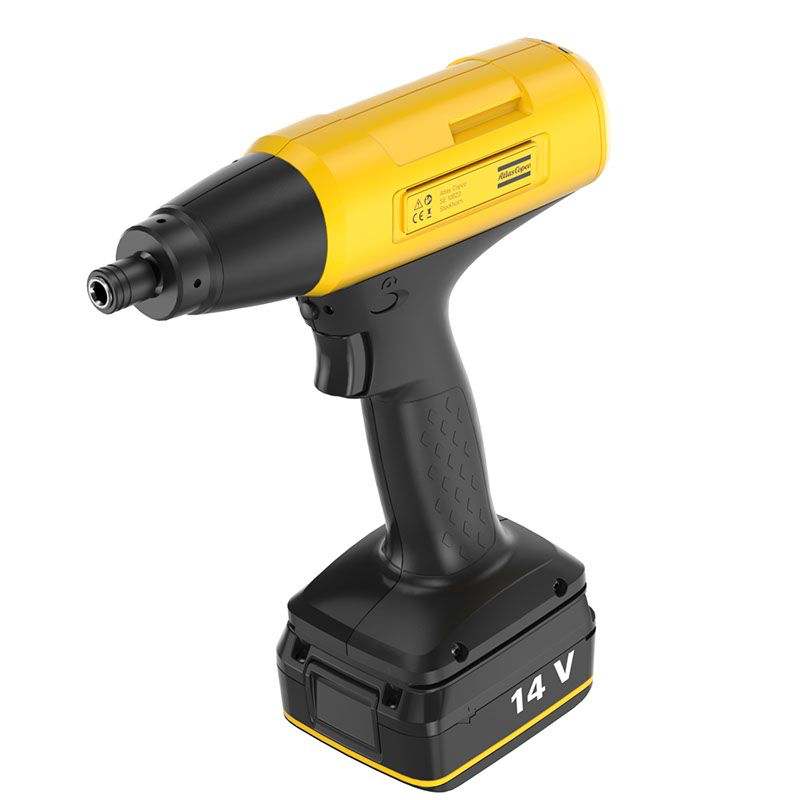

Pistol Cordless Nutrunner XCB XCB-P-06-I06

Pistol Cordless Nutrunner XCB XCB-P-06-I06

The XCB is an easy-to-setup and durable clutch tool, designed to rapidly tighten consecutive joints with the same torque. Its comfortable shut-off, lightweight design, and calibrated balance minimize strain on the operator while ensuring effortless handling over time. With the freedom to chose between different battery sizes, ergonomics and productivity can be optimized for every need. The XCB is ready to be used straight out of the box. Just set the torque, configure the speed and you are good to go. The XCB is part of the XB range.

Item No :
Pistol Cordless Nutrunner XCB XCB-P-06-I06
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.62kg

Inquiry now

Product Details
Model Specifications

Features

Excellent torque repeatability

10% torque accuracy (3σ)

Select battery size for your need

Clear tightening results

Re-hit detection

Benefits

Ready to use out of the box

Mechanical clutch with low mean shift

Durable and ergonomic design

Easy to program through web-based UI

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	212 mm
Length	213 mm
Output size	1/4"
Weight	2.2 lb
Certifications, standards & directives
CMIIT ID	2016AJ1533
EAC certified	No
EU Standard	EN 18031-1:2024\|\|EN 301 489-1 V2.2.3\|\|EN 301
	489-17 V3.2.4\|\|EN 301 489-33 V2.2.1\|\|EN
	61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015 + AC:2015 + A11:2022\|\|EN 62841-
	2-2:2014 + AC:2015
EU Legislation	(EU) 2022/30\|\|2006/42/EC (MD)\|\|2011/65/EU
	V2.1.1\|\|EN 301 489-17 V3.2.4\|\|EN 301 893 V2.1.1\|\|EN
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.54 W/kg
FCC ID	PVH0965
IC ID	5325-0965
KC certified	Yes
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 301 489-1 V2.2.3\|\|EN 301 489-17 V3.2.4\|\|EN
	301 489-33 V2.2.1\|\|EN 61000-6-2:2019\|\|EN
	61000-6-4:2019\|\|EN 62841-1:2015 + AC:2015 +
	A11:2022\|\|EN 62841-2-2:2014 + AC:2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	4.4 ft-lb
Torque range min	1.5 ft-lb
Torque scatter	≤ 10 %
Design & Functions
Communication type	Bluetooth/WLAN
Model type	Pistol
MSIP	R-R-50A-XCB-P
Output feature	Bit holder
Output type	Hexagon, Female
SCIP	7095639d-4442-4f62-9a68-985c72716323
Quick change interface	Clutch
Tightening direction	CW
Tool family	XCB
Power
Motor power	290 W
Motor voltage type	dc
Motor voltage	18 V
Battery information
Battery	Li-Io 14/18/36 V
Type of battery	n/a
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Max speed 14V	1000 r/min
Max speed 18V	1400 r/min
Max speed 36V	1823 r/min
Speed range max	1823 r/min
Speed range min	100 r/min
