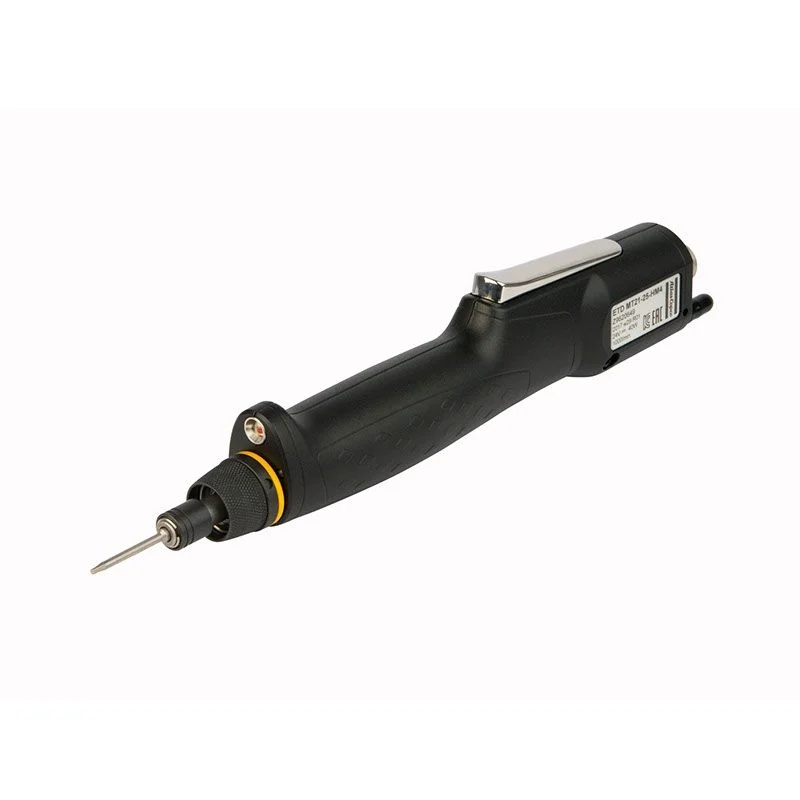

Handheld Transducerized Screwdriver ETD MT ETD MT21-10-HM4

The new transducerized handheld MicroTorque screwdriver ETD MT from Atlas Copco is easy to set up and use, bringing precision and quality to your manufacturing process. As a catalyst for industry 4.0, ETD MT with the most advanced tightening strategies in the market ensures high quality tightenings time after time. Great ergonomic design with clear tactile, visual or audio operator feedback & workflow instructions ensures that assembly errors are detected and eliminated for complete error-proofing quality control.

Item No :
Handheld Transducerized Screwdriver ETD MT ETD MT21-10-HM4
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
534g

Inquiry now

Product Details
Model Specifications

Features

Best-in-class accuracy transducerized tools

True torque measurement

Full process monitoring

Advanced tightening strategies

Complete workflow instructions and control

Multiple communication ports and protocols

Benefits

Secure product quality

Enhanced traceability

Enhanced detection of tightening errors

Improved productivity and reduced setup time

Industry 4.0 revolution-ready design

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Length	226 mm
Overall width	32 mm
Weight	0.77 lb
Certifications, standards & directives
CCC certified	No
CQC China	No
EAC certified	Yes
EU Standard	EN 55014-1:2021\|\|EN 55014-2:2021\|\|EN 61000-
	6-2:2019\|\|EN 61326-1:2021 (Class A)\|\|EN
	62841-1:2015\|\|EN 62841-2-2:2014/AC:2015\|\|EN
	IEC 61000-3-2:2019+A1:2021\|\|EN IEC 61000-3-
	3:2013+A1:2019+A2:2021\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC ID	MSIP-REI-50A-MICROTORQUE
KC certified	Yes
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 55014-1:2021\|\|BS EN 55014-2:2021\|\|BS
	EN 61000-6-2:2019\|\|BS EN 61326-1:2021 (Class
	A)\|\|BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014/AC:2015\|\|BS EN IEC 61000-3-
	2:2019+A1:2021\|\|BS EN IEC 61000-3-
	3:2013+A1:2019+A2:2021\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	0.89 in-lb
Torque range min	0.18 in-lb
Torque scatter 3s	≤ 7.5 %
Design & Functions
Bit drive	HM 4mm
Model type	Straight
SCIP	0e839bca-71a3-4a55-89b6-1f31bd7caef9
Shut-off system	Transducer
Power
Motor power	20 W
Motor voltage type	d.c.
Motor voltage	24 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Free speed	2000 r/min
Speed range max	2000 r/min
Safety
Ingress protection rating	IP20
Temperature
Operating temperature max	104 F
Operating temperature min	41 F
Storage temperature max	140 F
Storage temperature min	-13 F
