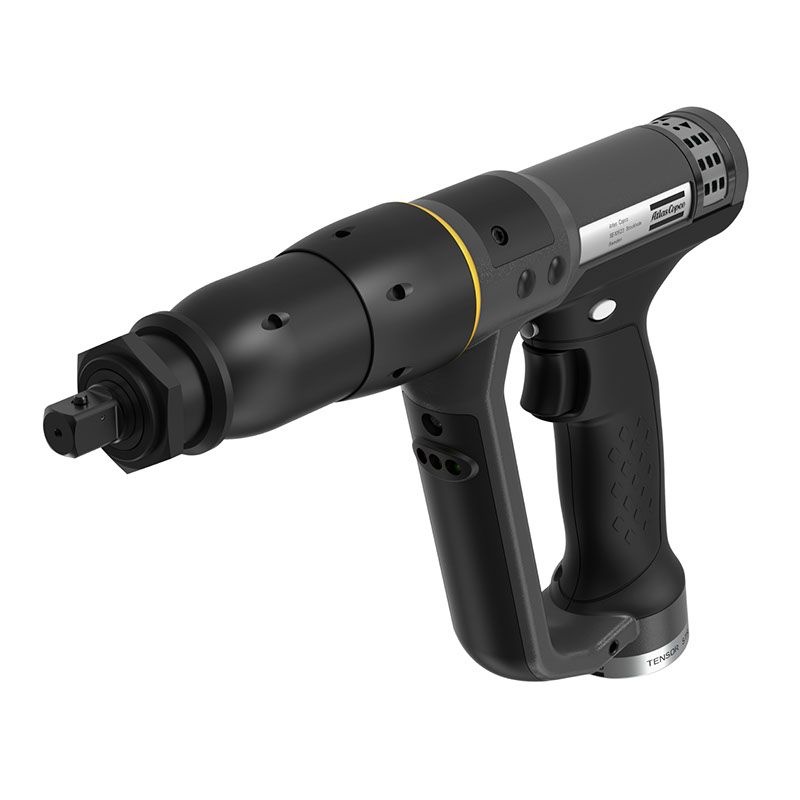

Pistol Cable Nutrunner Tensor STR ETP STR61-70-13

Take productivity to new levels with the revolutionary Pistol Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.

Item No :
Pistol Cable Nutrunner Tensor STR ETP STR61-70-13
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.72kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer

Patented TurboTight strategy

Excellent heat dispersion

Outstanding power to weight ratio

‘Cable On Top’ option and D-handle

Configurable LEDs

Integrated speaker and vibration

Benefits

Full traceability

Unsurpassed operator comfort

Reduced downtime and higher cycle-rate

Reduced total cost of ownership

Reduced operator training time

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	26.5 mm
Length	298 mm
Output size	1/2"
Weight	4.41 lb
Certifications, standards & directives
CCC certified	No
CQC China	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC ID	R-REI-50A-ETPSTR61
KC certified	Yes
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	59 ft-lb
Torque range min	10.3 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Output type	Square, Male
Model type	Pistol
SCIP	6f9efd1f-f1d8-425d-ad94-6d6587cd2eb8
Shut-off system	Transducer
Spline/Mounting	2/2
Tool family	STR
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	560 r/min
