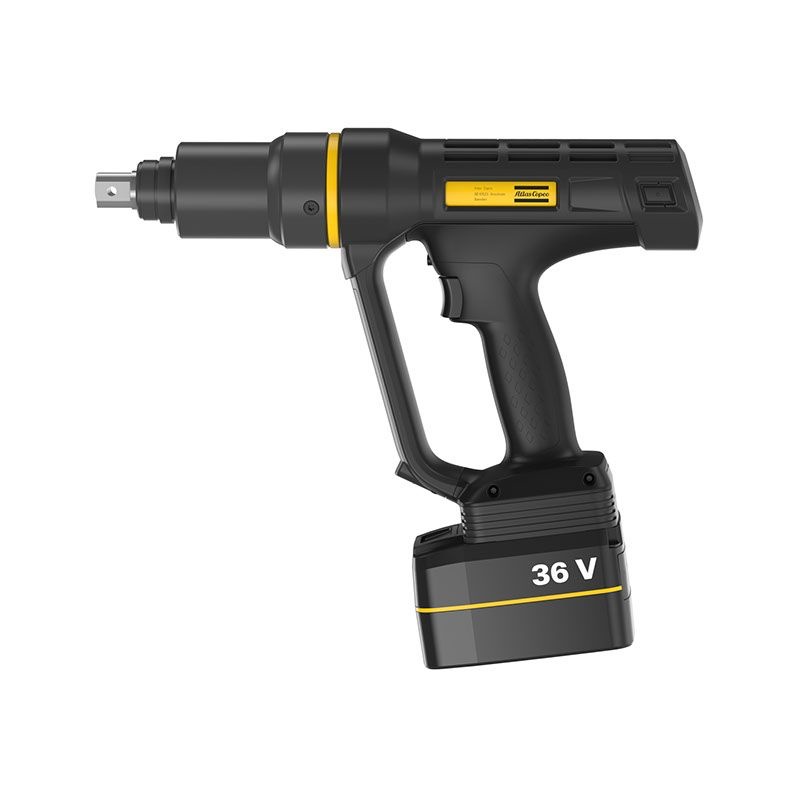

Pistol Battery Nutrunner SRB81 ETP SRB81-200-20-D

The SRB81 has three functionality levels, each one designed to suit various users. All models are equipped with a transducer. The digital version can be used straight out of the box, with a set and go function using the HMI. The Smart model has a built in network, so any device with WiFi can log in, configure the tool and receive data, with no external software required. The Connected model has the additional functionality to connect to the Power Focus, enabling the user to send live to the controller or any other system, increasing process control and traceability.

Item No :
Pistol Battery Nutrunner SRB81 ETP SRB81-200-20-D
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
5.12kg

Inquiry now

Product Details
Model Specifications

Features

Transducer

Data collection

Dual trigger

HMI Screen

Upgradeable

Benefits

Minimize risk of injury

Shows live tightening results

Simple interface, easy to use

Setup straight from the box

Highest volume of tightening’s - per battery

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	239 mm
Length	338 mm
Output size	3/4"
Width	74.5 mm
Weight	8 lb
Certifications, standards & directives
CCC certified	No
CMIIT ID	2018AJ0238
EAC certified	Yes
EU Standard	EN 18031-1:2024\|\|EN 300 328 V2.2.2\|\|EN 300
	440 V2.1.1\|\|EN 301 489-1 V2.1.1\|\|EN 301 489-17
	V3.1.1\|\|EN 55014-1:2017\|\|EN 55014-2:2015\|\|EN
	61000-6-2:2019\|\|EN 61000-6-3:2007+A1:2011\|\|EN 61000-6-
	4:2007+A1:2011\|\|EN 62841-1:2015 + AC:2015 +
	A11:2022\|\|EN 62841-2-2:2014 + AC:2015
EU Legislation	(EU) 2022/30\|\|2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.49 W/kg
FCC ID	PVH0965
IC ID	5325A-0965
KC certified	Yes
KC ID	R-R-50A-SRBHA
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
	489-1 V2.1.1\|\|EN 301 489-17 V3.1.1\|\|EN 55014-
	1:2017\|\|EN 55014-2:2015\|\|EN 61000-6-
	2:2019\|\|EN 61000-6-3:2007+A1:2011\|\|EN
	61000-6-4:2007+A1:2011\|\|EN 62841-1:2015 +
	AC:2015 + A11:2022\|\|EN 62841-2-2:2014 + AC:2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	147 ft-lb
Torque range min	45 ft-lb
Design & Functions
Model type	Pistol
Output type	Square, Male
SCIP	68c2f2d6-c770-45dc-b4e1-5cfc88785683
Shut-off system	Transducer
Tool family	SRB
Power
Motor power	1500 W
Motor voltage type	d.c.
Motor voltage	36 V
Battery information
Battery	Li-Io 36 V
Type of battery	1 Li-ion
Weight incl. Battery	9.7 lb
Noise & vibrations
Sound pressure	54 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration uncertainty	<2.5 m/s²
Speed
Speed range max	139 r/min
