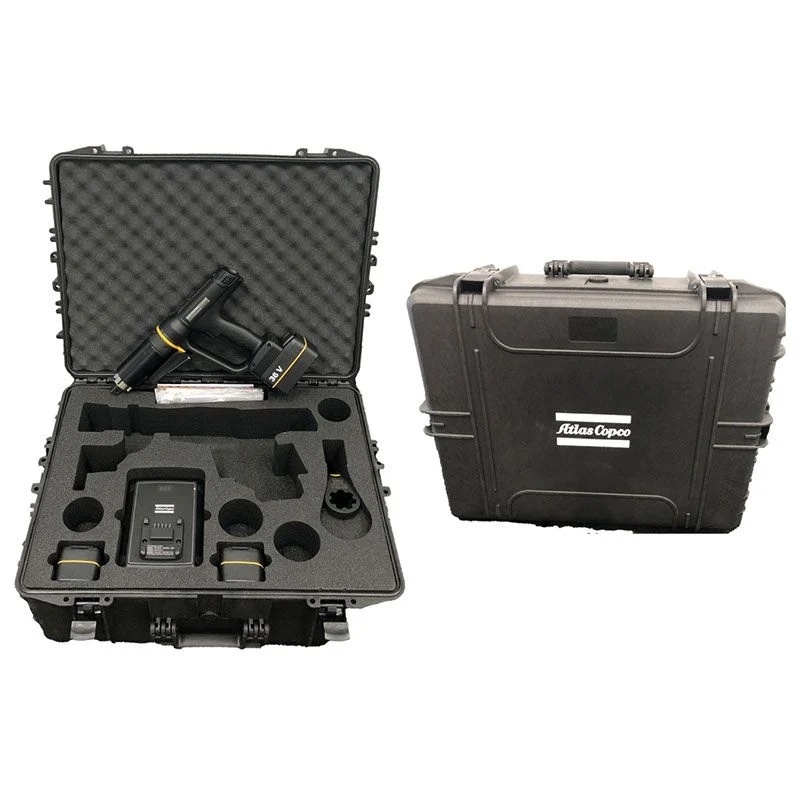

Pistol Battery Nutrunner SRB81 ETP SRB81-750-25 KIT

Pistol Battery Nutrunner SRB81 ETP SRB81-750-25 KIT

The SRB81 has three functionality levels, each one designed to suit various users. All models are equipped with a transducer. The digital version can be used straight out of the box, with a set and go function using the HMI. The Smart model has a built in network, so any device with WiFi can log in, configure the tool and receive data, with no external software required. The Connected model has the additional functionality to connect to the Power Focus, enabling the user to send live to the controller or any other system, increasing process control and traceability.

  • Item No :

    Pistol Battery Nutrunner SRB81 ETP SRB81-750-25 KIT
  • Order(MOQ) :

    1PC
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Xiamen
  • Lead Time :

    15days
  • Weight :

    17kg

The SRB81 has three functionality levels, each one designed to suit various users. All models are equipped with a transducer. The digital version can be used straight out of the box, with a set and go function using the HMI. The Smart model has a built in network, so any device with WiFi can log in, configure the tool and receive data, with no external software required. The Connected model has the additional functionality to connect to the Power Focus, enabling the user to send live to the controller or any other system, increasing process control and traceability.

Features

Transducer

Data collection

Dual trigger

HMI Screen

Upgradeable

Benefits

Minimize risk of injury

Shows live tightening results

Simple interface, easy to use

Setup straight from the box

Highest volume of tightening’s - per battery

Technical Specifications
Imperial Metric                             Dimension & weight
Dimension & weight
Height 239 mm
Length                                 387 mm
Output size 1"
Width                          74.5 mm
Weight                                       10.8 lb
Certifications, standards & directives
CCC certified No
CMIIT ID 2018AJ0238
EAC certified Yes
EU Standard EN 18031-1:2024||EN 300 328 V2.2.2||EN 300
440 V2.1.1||EN 301 489-1 V2.1.1||EN 301 489-17
V3.1.1||EN 55014-1:2017||EN 55014-2:2015||EN
61000-6-2:2019||EN 61000-6-3:2007+A1:2011||EN 61000-6-
4:2007+A1:2011||EN 62841-1:2015 + AC:2015 +
A11:2022||EN 62841-2-2:2014 + AC:2015
EU Legislation (EU) 2022/30||2006/42/EC (MD)||2011/65/EU
(RoHS)||2014/53/EU (RED)||2015/863/EU
(RoHS amendment)
ETL control number 3008099
ETL listed Yes
ETL text 6 - 62841-2-2
EU SAR value 0.49 W/kg
FCC ID PVH0965
IC ID 5325A-0965
KC certified Yes
KC ID R-R-50A-SRBHA
UK Regulations S.I. 2008/1597||S.I. 2012/3032||S.I. 2017/1206
UK Standard S.I. 2008/1597||S.I. 2012/3032||S.I. 2017/1206
489-1 V2.1.1||EN 301 489-17 V3.1.1||EN 55014-
1:2017||EN 55014-2:2015||EN 61000-6-
2:2019||EN 61000-6-3:2007+A1:2011||EN
61000-6-4:2007+A1:2011||EN 62841-1:2015 +
AC:2015 + A11:2022||EN 62841-2-2:2014 + AC:2015
WEEE 5 - Small equipment <50cm
Torque
Torque range max                                                         553 ft-lb
Torque range min                              166 ft-lb
Design & Functions
Model type                                                            Pistol
Output type Square, Male
SCIP 68c2f2d6-c770-45dc-b4e1-5cfc88785683
Shut-off system Transducer
Tool family SRB
Power
Motor power                                                                   1500 W
Motor voltage type                              d.c.
Motor voltage                                  36 V
Battery information
Battery                                                                    Li-Io 36 V
Type of battery                                1 Li-ion
Weight incl. Battery                            12.6 lb
Noise & vibrations
Sound pressure                             54 dB(A)
Sound standard                              ISO15744
Vibration standard                          ISO28927-2
Vibration uncertainty <2.5 m/s²
Speed
Speed range max                            46 r/min
Design
Clutch type           Twin hammer
