Atlas Copco

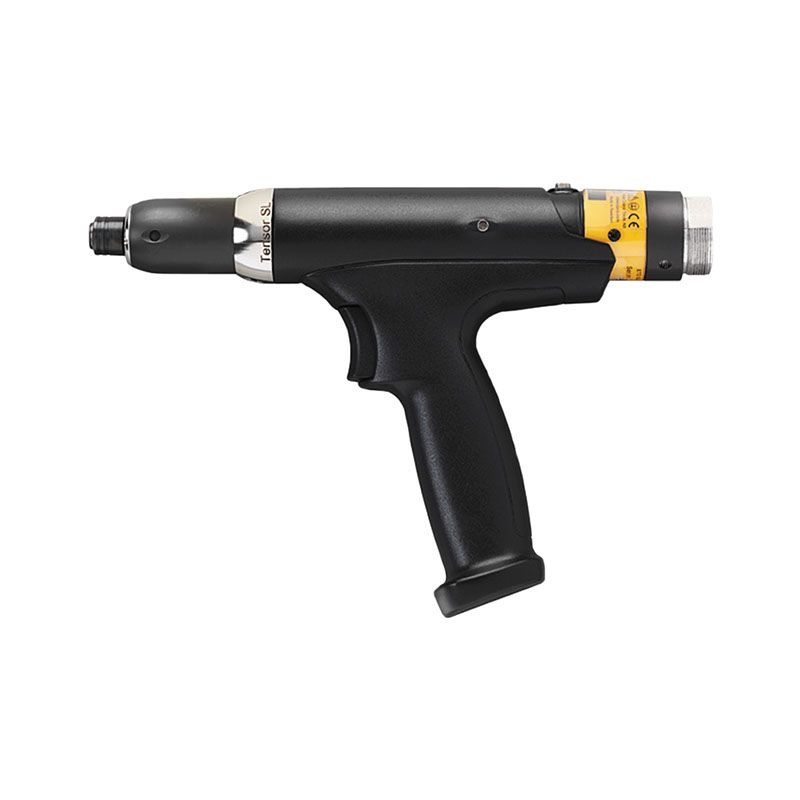

Pistol Cable Screwdriver Tensor SL ETP SL21-10-I06-PS

Take assembly quality to the next level with the transducerized Pistol Cable Screwdriver Tensor SL. With an excellent power to weight ratio, ergonomic grip and integrated speaker and LED lights for result’s feedback the Tensor SL optimizes operator comfort and efficiency. High productivity is ensured with the Tensor SL’s high cycle-rate speed and safety-critical accuracy, making it an excellent choice for even the most demanding low-torque applications.

Item No :
Pistol Cable Screwdriver Tensor SL ETP SL21-10-I06-PS
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.31kg

Inquiry now

Product Details
Model Specifications

Features

+/-5% over six sigma accuracy

Built-in Transducer

Push to start functionality

Front lights Well balanced pistol grip

Well balanced pistol grip

Excellent power to weight ratio

Extremely compact with ergonomic grip

Integrated buzzer and additional blue LED

Benefits

Full traceability

Higher cycle-rates and productivity

Improved usability in low-lit application

Enhanced operator comfort

Improved feedback and safety

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	20.5 mm
Length	246 mm
Output size	1/4"
Weight	1.9 lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC ID	na
KC certified	No
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	7.3 ft-lb
Torque range min	1.5 ft-lb
Torque scatter 3s	≤ 5 %
Design & Functions
Output type	Hexagon, Female
Output feature	Bit holder
Model type	Pistol
SCIP	0e839bca-71a3-4a55-89b6-1f31bd7caef9
Shut-off system	Transducer
Tool family	SL
Power
Motor power	140 W
Motor voltage type	3 a.c.
Motor voltage	35 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	720 r/min
