Atlas Copco

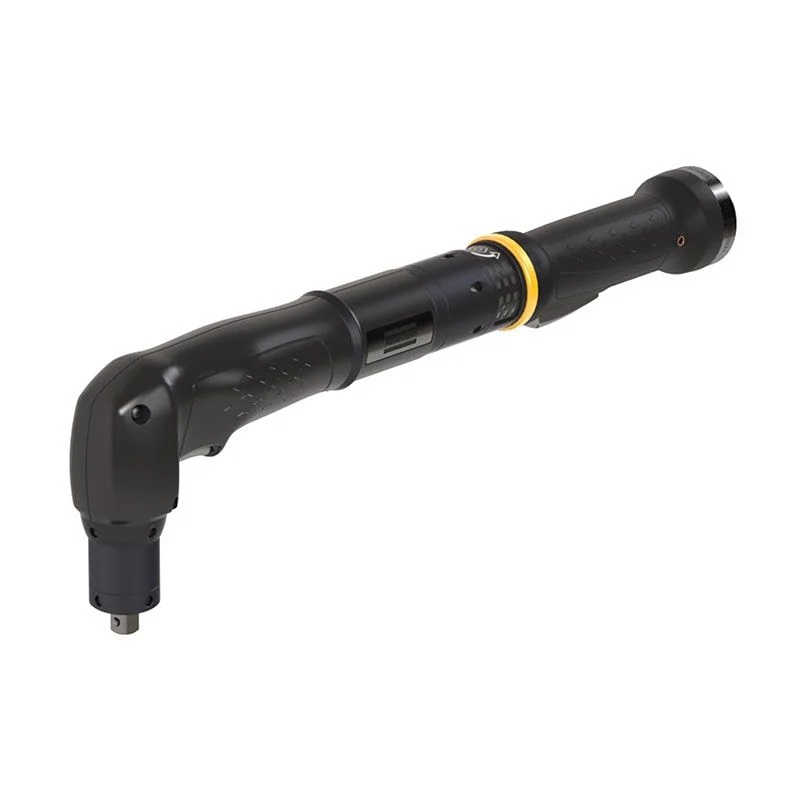

Two Trigger Cable Nutrunner Tensor STR ETT STR61-50-10

Take productivity to new levels with the revolutionary Two Trigger Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.

Item No :
Two Trigger Cable Nutrunner Tensor STR ETT STR61-50-10
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
2.31kg

Inquiry now

Product Details
Model Specifications

Features

+/-2.5% over six sigma accuracy

Additional front transducer

Safety trigger

Two-triggers versatility

Patented TurboTight strategy

Built in gyroscope and TrueAngle technology

Robust IP54 class rated

Benefits

Full traceability

Pre-tightening and final tightening

Unsurpassed operator comfort

Tightening without operator influence

Reduced operator training

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	24 mm
Height	134 mm
Length	384 mm
Output size	3/8"
Weight	3.7 lb
Certifications, standards & directives
CCC certified	No
CQC certified	No
EAC certified	Yes
EU Standard	EN 61000-6-2:2019\|\|EN 61000-6-4:2019\|\|EN
	62841-1:2015+AC:2015\|\|EN 62841-2-
	2:2014+AC:2015\|\|EN ISO 12100:2010
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/30/EU (EMC)\|\|2015/863/EU
	(RoHS amendment)
KC ID	na
KC certified	No
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2016/1091
UK Standard	BS EN 62841-1:2015\|\|BS EN 62841-2-
	2:2014\|\|BS EN IEC 61000-6-2:2019\|\|BS EN IEC
	61000-6-4:2019\|\|BS EN ISO 12100:2010
WEEE	5 - Small equipment <50cm
Torque
Torque range max	37 ft-lb
Torque range min	7 ft-lb
Torque scatter 3s	≤ 2.5 %
Design & Functions
Output type	Square, Male
Model type	Angle
SCIP	b82fb66c-250d-4fcb-9130-3233fcfd77e2
Shut-off system	Transducer
Tool family	STR
Power
Motor power	1500 W
Motor voltage type	3 a.c.
Motor voltage	200 V
Noise & vibrations
Sound pressure	<70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	780 r/min
