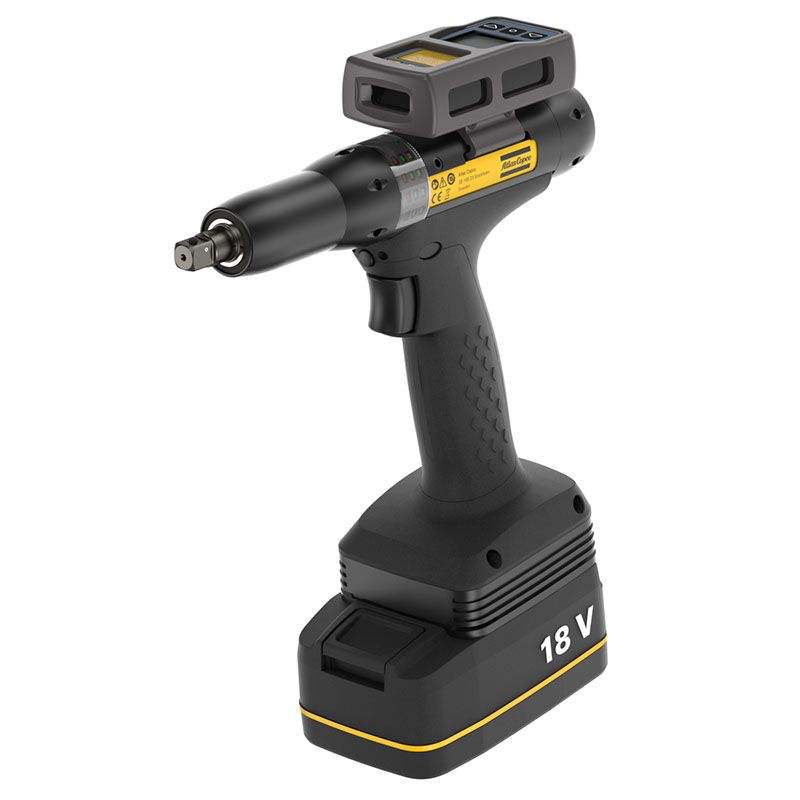

Pistol Cordless Nutrunner Tensor SRB ETP SRB31-20-10-BD

Powered by a new battery generation from Atlas Copco, Pistol Cordless Nutrunner Tensor SRB delivers one-handed operation with accuracy, traceability and flexibility. The SRB reports wirelessly to the Power Focus 6000 system and takes full advantage of Virtual Stations. Able to perform low reaction strategies such as TurboTight and Tensor Pulse, and traditional strategies like two step. The Tensor SRB is ideal for low torque applications where the reaction forces are felt by the operators wrist. It is light weight and has a great balance – ergonomically designed to prevent operator fatigue.

Item No :
Pistol Cordless Nutrunner Tensor SRB ETP SRB31-20-10-BD
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.96kg

Inquiry now

Product Details
Model Specifications

Features

Slim design

Traditional and Low Reaction strategies

One handed operation, cable free

Operator feedback and battery status

Buffer battery

Integrated battery status indicator

Dual antenna

Rapid Backup Unit (RBU) functionality

Benefits

High productivity and accuracy

Fast tightening

Full traceability

Short tightening cycle

Easy to set up

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Height	240 mm
Length	212 mm
Output size	3/8"
Weight	2.932 lb
Width	74 mm
Certifications, standards & directives
CCC certified	No
CMIIT ID	2022AJ0358
EAC certified	Yes
EU Standard	EN 18031-1:2024\|\|EN 300 328 V2.2.2\|\|EN 300
	440 V2.1.1\|\|EN 301 893 V2.1.1\|\|EN 301489-1
	V2.1.1\|\|EN 301489-17 V3.1.1\|\|EN
	50566:2017\|\|EN 55014-1:2017\|\|EN 55014-
	2:2015\|\|EN 61000-6-1:2007\|\|EN 61000-6-
	2:2005\|\|EN 61000-6-3:2007+A1\|\|EN 61000-6-
	4:2007+A1\|\|EN 62841-1:2015\|\|EN 62841-2-2:2015+AC1
EU Legislation	(EU) 2022/30\|\|2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.49 W/kg
FCC ID	PVH 0965
IC ID	5325A-0965
KC certified	No
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300 328 V2.2.2\|\|EN 300 440 V2.1.1\|\|EN 301
	893 V2.1.1\|\|EN 301489-1 V2.1.1\|\|EN 301489-17
	V3.1.1\|\|EN 50566:2017\|\|EN 55014-1:2017\|\|EN
	55014-2:2015\|\|EN 61000-6-1:2007\|\|EN 61000-
	6-2:2005\|\|EN 61000-6-3:2007+A1\|\|EN 61000-6-
	4:2007+A1\|\|EN 62841-1:2015\|\|EN 62841-2-2:2015+AC1
WEEE	5 - Small equipment <50cm
Torque
Torque range max	14.7 ft-lb
Torque range min	3.7 ft-lb
Design & Functions
Model type	Pistol
Output type	Square, Male
SCIP	68c2f2d6-c770-45dc-b4e1-5cfc88785683
Shut-off system	Transducer
Tool family	SRB
Power
Motor power	500 W
Motor voltage type	d.c.
Motor voltage	38.1 V
Battery information
Battery	Li-Io 18/36 V
Type of battery	1 Li-ion
Weight incl. battery	4.034 lb
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Sound uncertainty pulse	3 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty pulse	1,3 m/s²
Vibration value	<2.5 m/s²
Vibration value pulse	9,5 m/s²
Speed
Speed range max	1500 r/min
