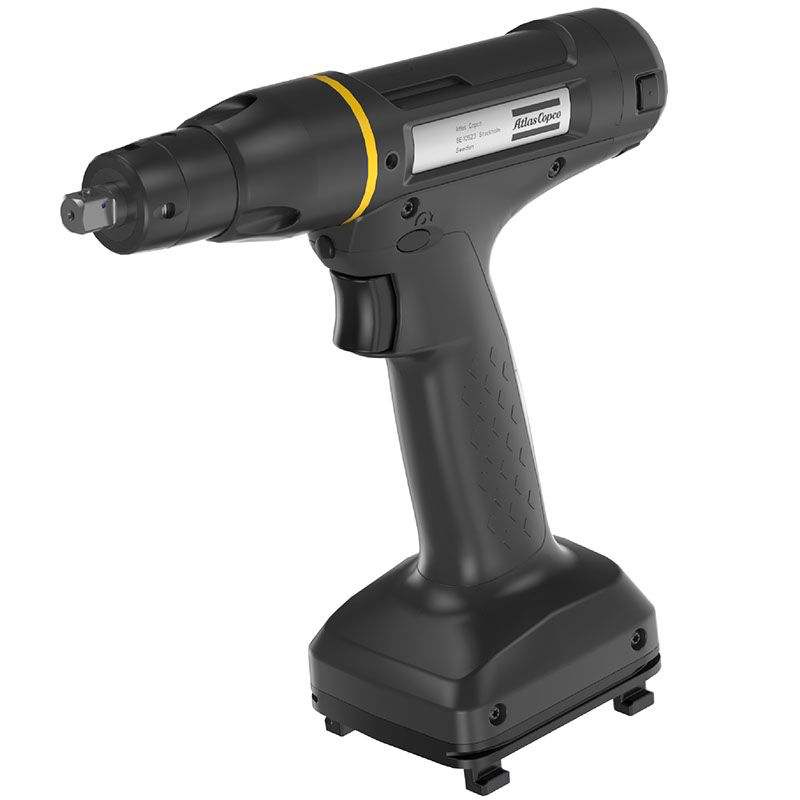

Pistol Cordless Nutrunner Tensor ITB-P31-06-10

Pistol Cordless Nutrunner Tensor ITB-P takes productivity, assembly quality and user experience to the next level. ITB-P offers value-add includes TrueAngle angle compensation, faster tightening speeds, improved wireless signal strength and multiple configurable operator feedback via colored front LED, vibrator and embedded display. ITB-P is part of the Tensor IxB Family, with an integrated controller allowing direct integration with station accessories and production system without the need of an intermediate physical controller box.

Item No :
Pistol Cordless Nutrunner Tensor ITB-P31-06-10
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
1.77kg

Inquiry now

Product Details
Model Specifications

Features

Integrated controller

TrueAngle- angle compensation with gyroscope

Wide range of accessories for process control

Rundown booster

Optimized heat dissipation

Dual antennas

Embedded Display

Colored LED and vibrator for user feedback

Benefits

Increased productivity- cable tool speeds

Improved quality of the joint

Quick installation and easy line rebalancing

Easy to use- no extra training needed

Continuous production and increased uptime

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
CS distance	21 mm
Height	213 mm
Length	209.4 mm
Output size	3/8"
Weight	2.4 lb
Width	74.5 mm
Certifications, standards & directives
Capability class	FK-MFU25
CMIIT ID	2022AJ0358
EAC certified	Yes
EU Standard	EN 300328 V2.2.2\|\|EN 300440 V2.1.1\|\|EN 301
	489-17 V3.2.4\|\|EN 301489-1 V2.2.3\|\|EN 301489-
	3 V2.1.1\|\|EN 301893 V2.1.1\|\|EN 50566:2017\|\|EN
	55014-1:2017\|\|EN 55014-2:2015\|\|EN 61000-6-
	2:2019\|\|EN 61000-6-4:2019\|\|EN 62841-
	1:2015\|\|EN 62841-2-2:2015 + AC 2015
EU Legislation	2006/42/EC (MD)\|\|2011/65/EU
	(RoHS)\|\|2014/53/EU (RED)\|\|2015/863/EU
	(RoHS amendment)
ETL control number	3008099
ETL listed	Yes
ETL text	6 - 62841-2-2
EU SAR value	0.84 W/kg
FCC ID	XF6-M7DB7
IC ID	8407A-M7DB7
Japan ID	211-210212
KC certified	Yes
KC ID	R-R-50A-IXB Series
UK Regulations	S.I. 2008/1597\|\|S.I. 2012/3032\|\|S.I. 2017/1206
UK Standard	EN 300328 V2.2.2\|\|EN 300440 V2.1.1\|\|EN 301
	489-17 V3.2.4\|\|EN 301489-1 V2.2.3\|\|EN 301489-
	3 V2.1.1\|\|EN 301893 V2.1.1\|\|EN 50566:2017\|\|EN
	55014-1:2017\|\|EN 55014-2:2015\|\|EN 61000-6-
	2:2019\|\|EN 61000-6-4:2019\|\|EN 62841-
	1:2015\|\|EN 62841-2-2:2015 + AC 2015
WEEE	5 - Small equipment <50cm
Torque
Torque range max	4.4 ft-lb
Torque range min	0.9 ft-lb
Torque scatter	≤ 3.5 %
Design & Functions
Japan certified	Radio
Model type	Pistol
Output type	Square, Male
SCIP	710db83f-a8e8-45c7-953f-10ba26c92fae
Shut-off system	Transducer
Tool family	ITB
Power
Motor power	1250 W
Motor voltage type	dc
Motor voltage	35 V
Battery information
Battery	Li-Io 14/18/36 V
Type of battery	1 Li-ion
Weight incl. battery	3.3 lb
Noise & vibrations
Sound pressure	< 70 dB(A)
Sound standard	ISO15744
Vibration standard	ISO28927-2
Vibration value	<2.5 m/s²
Speed
Speed range max	1990 r/min
