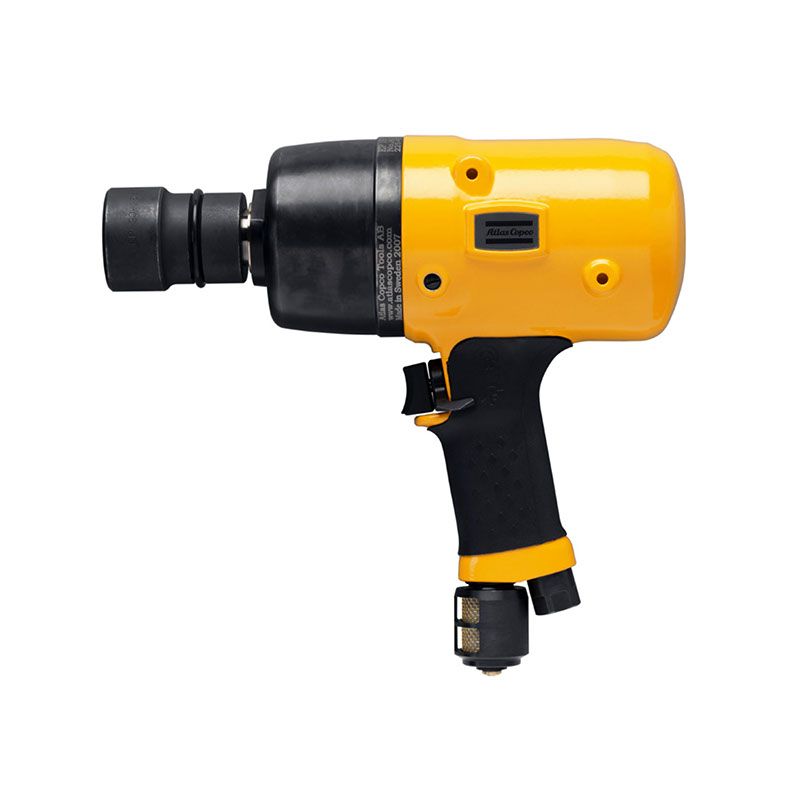

Pistol ErgoPulse PTX EP19PTX450 HR20-AT

The Pistol ErgoPulse PTX shut-off tool is the ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached. Suitable for continuous heavy production, the PTX series has some air on top HRF models, making it possible to feed the air from above to the tool. All PTX models can also be used as lubrication free, just like other ErgoPulse tools and is available in StandardTrim and AutoTrim version.

Item No :
Pistol ErgoPulse PTX EP19PTX450 HR20-AT
Order(MOQ) :
1PC
Payment :
T/T
Product Origin :
China
Color :
Black and Yellow
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
4.93kg

Inquiry now

Product Details
Model Specifications

Features

Consistent torque over time

Automatic two-stage trim valve

High power-to-weight ratio

No springs to wear out

High precision components

Benefits

High reliability and durability

One-handed operation

Light and well-balanced tool

Low noise level

Technical Specifications
Imperial Metric	Dimension & weight
Dimension & weight
Air inlet thread	3/8 in
Bolt size	M20 mm
CS distance	44 mm
Length	221 mm
Output size	3/4"
Recommended hose size	13 mm
Square drive	3/4 in
Weight	9.2 lb
X-Gague diameter	1.55 mm
Certifications, standards & directives
EAC certified	Yes
EU Legislation	2006/42/EC
EU Standard	EN ISO 11148-6:2012
UK Regulations	S.I. 2008/1597
UK Standard	EN ISO 11148-6:2012
Torque
Fixed transducer torque CCW service	500 Nm
Pulse unit casing tightening Torque	70 Nm
Torque range max	332 ft-lb
Torque range min	166 ft-lb
Design & Functions
Model type	Pistol
Output type	Square, Male
Pulsing freq. CCW	9-12 Hz
SCIP	f6af8e27-01ad-4001-b854-ce0201219a23
Shut-off	Yes
Noise & vibrations
Sound power	99 dB(A)
Sound pressure	88 dB(A)
Sound standard	ISO15744
Sound uncertainty	3 dB(A)
Vibration standard	ISO28927-2
Vibration uncertainty	1 m/s²
Vibration value	8.2 m/s²
Speed
Free speed	3300 r/min
Air information
Air consumption under load	49 cfm
Max working pressure	100 psi
Nominal working pressure	91 psi
