Features an integrated 8-inch touchscreen display Torque gateway hardware card is integrated internally Includes WiFi and Bluetooth WAN port, LAN port, COM port, USB interface, and expandable I/O ports, etc. The TorquExplore DBTS upper computer torque management system with MySQL database can serve as the central data processing device for multi-machine independent networking Support upper-level MES

The wireless torque controller is easy to use and safe. The characteristics of high efficiency, flexibility and value, etc. can save the production cost and increase the productivity effectively while ensuring the safety of the operators. The wireless torque controller eliminates the trouble of installing software, and the upgrade and update of software and hardware is very convenient and fast.

CM-TGW/CM-B-TGW dedicated torque WIFI gateway Weiwo Industrial has fully upgraded its torque equipment to a dedicated wireless WIFI torque gateway for smart manufacturing. This system connects all terminal devices via wireless modules, forming an IoT-based intelligent terminal torque management system. It provides functionalities including converting specialized torque equipment protocols into universal text formats or MODBUS protocols, scanning data for transmission, uploading equipment operation results to a database, and real-time monitoring of wrench device status. The system features simplicity and high reliability.

A modular manual torque tool. With modular design, you can customize various modules to perfectly match the requirements of your workstation. Using MM-LA in production, you gain full traceability of the entire tightening process, including torque and angle control. By configuring your own wrenches, you can achieve excellent torque precision. Additionally, it enables quality control, residual torque detection, and connection analysis (including fastener status), allowing you to set accurate tightening parameters for the production process.

The high-precision sleeve-type torque sensor integrates patented technology with standard sleeves, enabling real-time torque measurement during bolt tightening. When paired with Wivor Industry's professional Bluetooth APP and Windows-based torque statistics software, it facilitates online torque verification and measurement with ±1% accuracy. The wireless torque measurement sleeve operates on low-power Bluetooth (BLE) IoT terminal software.

The QM-PI2 and QM-PM2 gun-type small-torque brushless torque wrenches utilize a new generation of brushless motors, carbon-free brushes, closed-loop control, and multiple tightening strategies, while meeting high-precision and high-strength requirements. Meeting both performance and safety requirements, the QM small-torque brushless torque wrench (under 200NM) features adjustable speed and torque output, adaptable to various soft and hard environments. The QM-PI2 model, built on a high-speed platform, delivers higher angular speed for precise tightening while supporting wireless and data functions.

220V power source automatic decoupling reversal Small Screen Communication Supports barcode scanning Optional dual-axis synchronization Standard accuracy ±3% (main range) Digital Torque Output Control and Angle Control Supports multiple strategies including angle and torque Supports both outdoor and indoor working environments It meets user needs, and the output data can be freely controlled Supports turntable and valve applications, with optional automatic recording of turns and reverse torque control. ±3% accuracy with 2% repeatability; TC version achieves up to ±2% accuracy, offering wider torque range This device can store more than 50,000 pieces of information*P     Tightening steps: Multiple processes can be selected Supports connection to host system and MES (optional) Tightening control methods: Torque method, Angle method, Torque-angle method Monitoring: Torque Angle Time Current Tightening parameters: 10 or more sets Supports USB connection Multi-level user management Support alarm column (optional) Data backup and integration, upload Use the menu function to set parameters Save/Read/Print (Optional) Supports the MODBUS protocol RS485/RS232/Ethernet (optional) Supports barcode scanners (optional) Mobile module *NB (optional)

The FM-DP-TC series represents the latest generation of brushless CNC torque wrenches. Featuring integrated torque sensors and closed-loop control, these devices utilize cutting-edge brushless motors that eliminate carbon brushes, ensuring maintenance-free operation and enhanced durability. Capable of starting immediately upon standard power supply, they meet stringent requirements for high precision, robust performance, and safety. The FM series incorporates a high-power-output planetary gear reduction system. The FM series achieves precise torque control via a color control panel, delivering smooth and continuous torque output through a high-performance digital control module. With ±4% accuracy and angle adjustment capability, it ensures reliable performance.

High Precision Planetary Gear Transmission System The planetary gear transmission system with high precision, high rigidity, high speed ratio, high life, low inertia and low vibration is adopted.   Dual-speed function High-low speed shift—optional   high efficiency brushless motor The brushless DC motor is used because of its small size, high life, light weight, low inertia and low vibration.   Forward and reverse switching switch, safety lock The high service life and super lubrication of the labor-saving forward and reverse switch makes the fast and sensitive work of tightening and loosening.   Trigger The industrial-grade starting trigger with high service life and high sensitivity is adopted. gun grip The ergonomic gun-style grip is designed and can be equipped with an anti-slip rubber sleeve. Less effort, more safety.   High capacity air-cooled lithium battery   The large-capacity air-cooled lithium battery greatly guarantees the safety of the use.

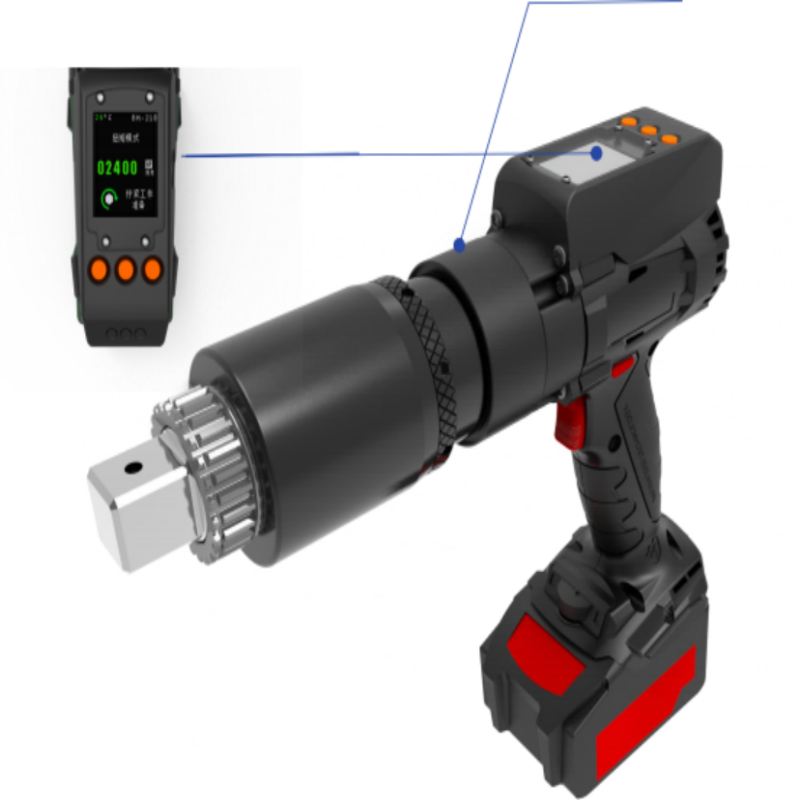

Includes a wireless transmission module with smart sensors (Bluetooth/WIFI communication smart terminal system) (optional) The brushless motor eliminates the need for carbon brush replacement Digital adjustment and display of torque and wrench working status parameters Multi-mode adjustment, torque digital adjustment, or torque adjustment in 1 to 99 gear positions Programmable preset for 10 common output torque or gear positions Any torque value can be set within the torque range. High reliability and stability with multi-pole gearbox User (operator, administrator) level management The buzzer indicates suitability for factory environments. Tighten the result simulation judgment follow function Background torque calibration software compensation function Anti-reaction force arm locking to achieve unloading function Supports turntable and valve applications, with optional automatic recording of turns and reverse torque control. This device can store more than 50,000 pieces of information*P It features a 1.8-inch large screen for more intuitive parameter display. Overheating temperature monitoring function of wrench Battery power monitoring and compensation torque overload limit function High-capacity air-cooled battery, fast-charging charger Accuracy ±3%, repeatability ±2% Supports larger-capacity air-cooled lithium batteries with capacities of 5.2/8.0/10AH Standard compliant standard counterweight arm, customizable counterweight arm available Supports the installation of hoisting systems for safer high-altitude operations Supports local log and USB log reading*-P Optional Bluetooth or WIFI module, torque gateway system, supports IoT connectivity with host computer and MES management system*-W/B Upload optional bolt tightening data (format definition). Some dual-clutch models support angle function*-P. Optional rotation angle + angle mode*-P Optional mobile module *NB

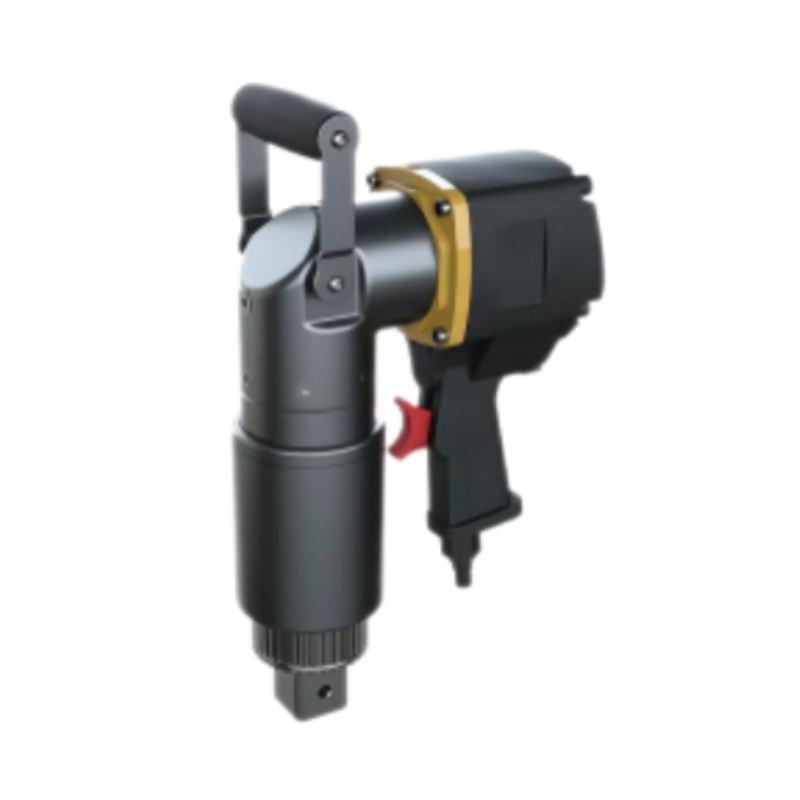

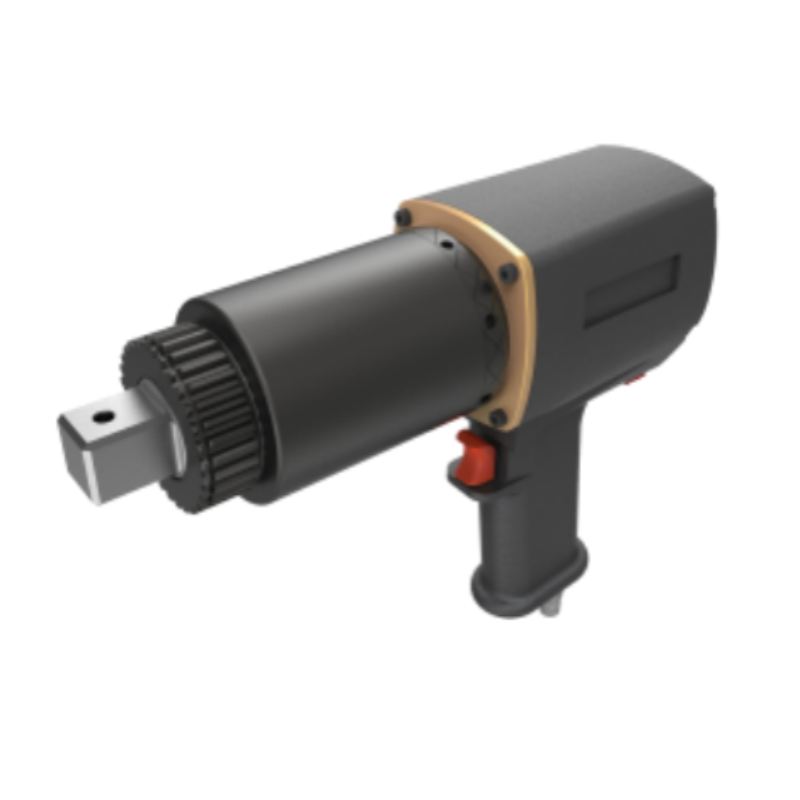

PRX series gun-type pneumatic torque wrench features a standard pneumatic motor and high-precision planetary gearbox, offering lightweight design and excellent cost-performance ratio, making it ideal for applications requiring both high efficiency and superior value. The precision is ±5% in the maintenance of the ratio.

PRX series gun-type pneumatic torque wrench features a standard pneumatic motor and high-precision planetary gearbox, offering lightweight design and excellent cost-performance ratio, making it ideal for applications requiring both high efficiency and superior value. The precision is ±5% in the maintenance of the ratio.
